XPT420DX

XPT420DX-RGC
  • RGC : Rose Gold Chameleon
  • COLOR VARIATION：

Top of the XPT420DX-RGC's body

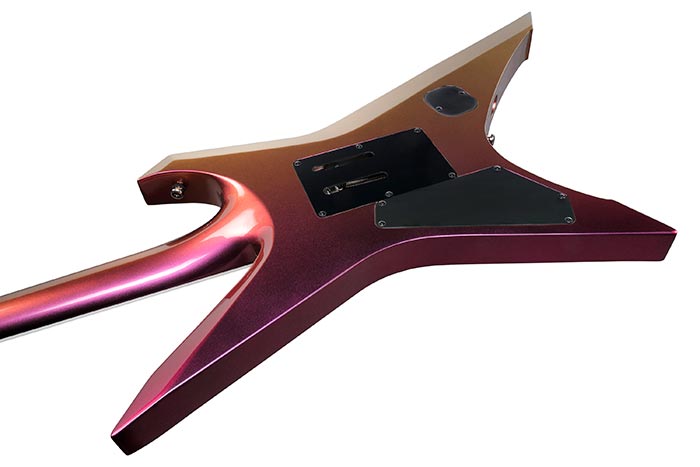

Back of the XPT420DX-RGC's body

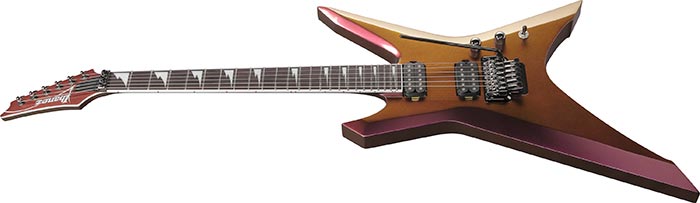

Entire top of the XPT420DX-RGC

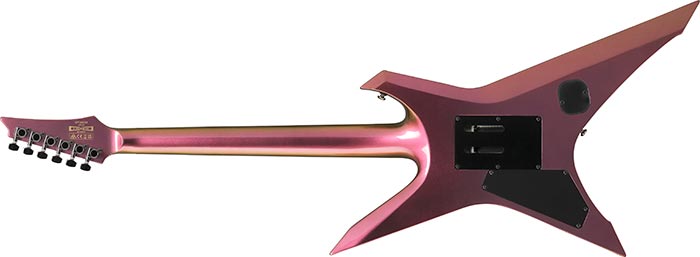

Entire back of the XPT420DX-RGC
X

SPEC

  • SPECS

    • neck type
      Wizard III5pc Maple/Walnut neckNeck-through
    • top/back/body
      Okoume wing body
    • fretboard
      Rosewood fretboardReversed Sharktooth inlay
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      Edge-Zero II bridge
    • string space
      10.8mm
    • neck pickup
      Quantum (H) neck pickupPassive/Ceramic
    • bridge pickup
      Quantum (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL120
    • string gauge
      .009/.011/.016/.024/.032/.042
    • nut
      Locking nut
    • hardware color
      Cosmo Black

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        43mm at NUT
      • b : Width
        58mm at 24F
      • c : Thickness
        19mm at 1F
      • d : Thickness
        21mm at 12F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    XPT420DX's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    XPT420DX's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there are a switch and two knobs along the lower edge of the body. From the end of the body towards the neck they are; the three-way pickup selector switch, tone knob, and volume knob.

  • OTHER FEATURES

    • Recommended Case
      XP100C XP100C
    • Gig bag included

Features

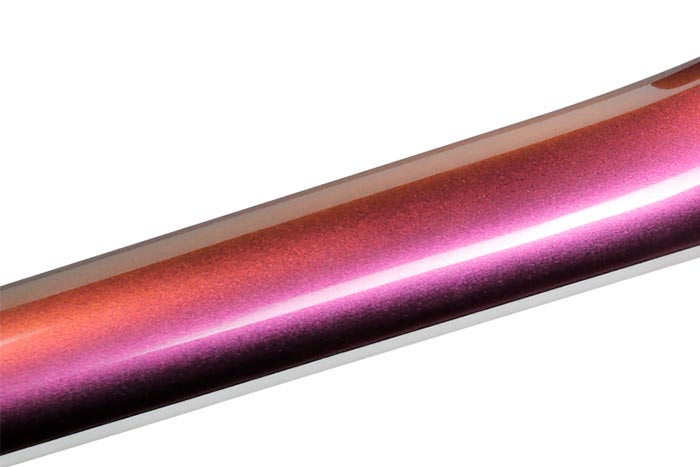

Wizard III 5pc Maple/Walnut neck

Wizard III 5pc Maple/Walnut neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Rosewood fretboard

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Jumbo frets

Jumbo frets

Jumbo frets contribute to smooth playability, especially for single-note playing.

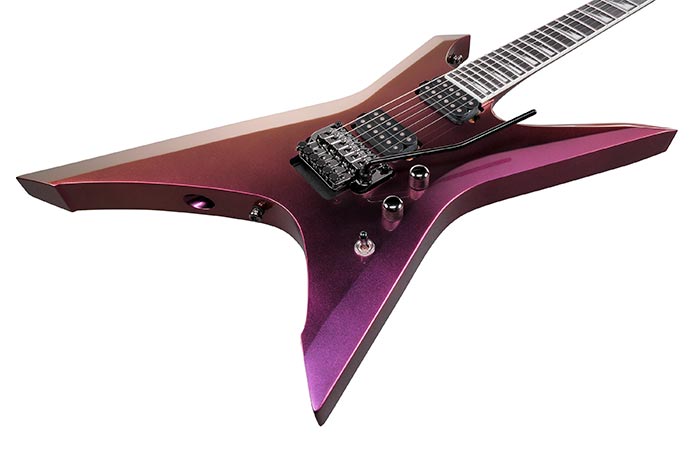

Okoume wing body

Okoume wing body

The Okoume wing body provides a bright and solid sound.

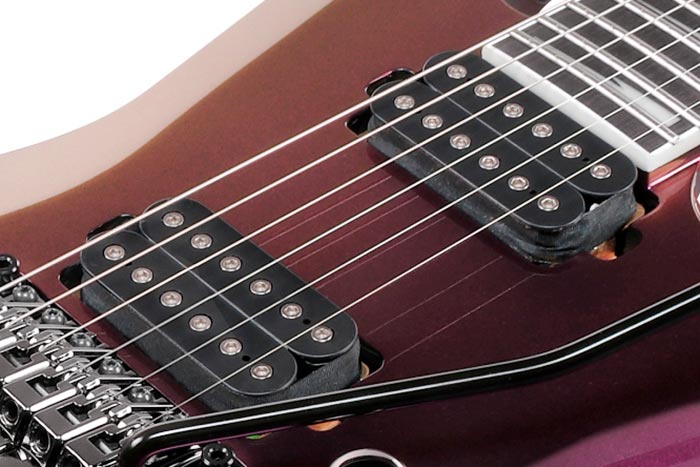

Quantum H-H pickups

Quantum H-H pickups

The Quantum pickups have a quick low-end response to picking and are able to capture fast passages with precise note definition, while delivering a full-bodied mid-to-high range.

Edge-Zero II tremolo

Edge-Zero II tremolo

The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.
