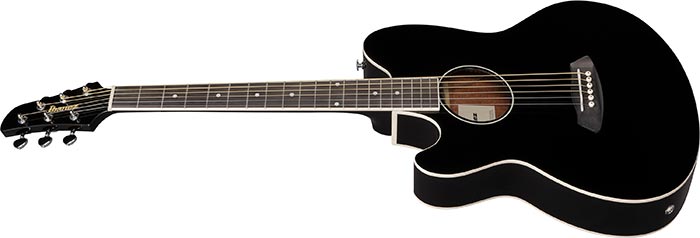

TCY10LE

  • TCY10LE-BK
  • BK : Black High Gloss
  • COLOR VARIATION：

COLOR VARIATION

SHARE：
Talman

SPEC

  • SPECS

    • body shape
      Talman Double Cutaway body
    • top
      Spruce top
    • back & sides
      Sapele back & Sapele sides
    • neck
      TCYOkoume neck
    • fretboard
      Purpleheart fretboard
    • bridge
      Purpleheart bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Black & White multi

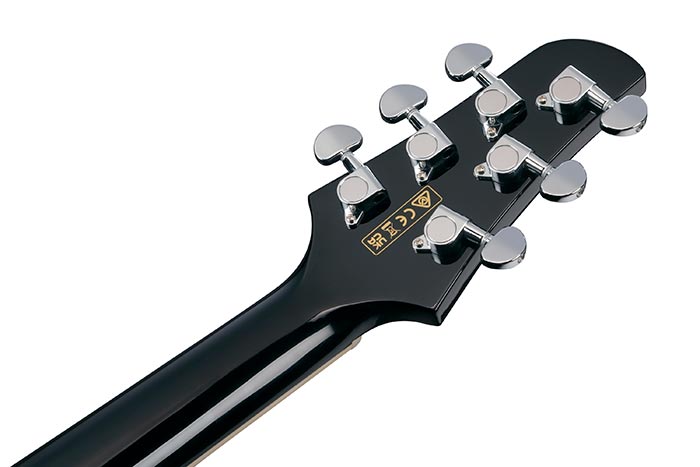

    • tuning machine
      Chrome Die-cast tuners
    • number of frets
      20
    • bridge pins
      Ibanez Advantage™
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez Undersaddle
    • preamp
      Ibanez AEQ-2T preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

    • Scale :
      650mm/25.6"
    • a : Width
      42mm at NUT
    • b : Width
      54mm at 14F
    • c : Thickness
      21.5mm at 1F
    • d : Thickness
      23.5mm at 7F
    • Radius :
      250mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the first fret
    c： Thickness of the neck at the first fret
    d: Thickness of the neck at the twelfth fret
    Radius: Radius of the fingerboard

  • BODY DIMENSIONS

    • a : Length
      18 1/8"
    • b : Width
      14 3/8"
    • c : Max Depth
      3 5/8"

    DESCRIPTION

    Guitar Body Diagram
    A: Length of the body
    B: Maximum width of the body
    C: Maximum depth of the body

  • PREAMP

    TCY10LE's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

Features

Okoume neck

The Okoume neck provides greater playing comfort.

Ibanez Undersaddle pickup

The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Spruce top

Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

Purpleheart bridge

The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
