TCY10E

PHOTOS
SPEC
FEATURES
SUPPORT

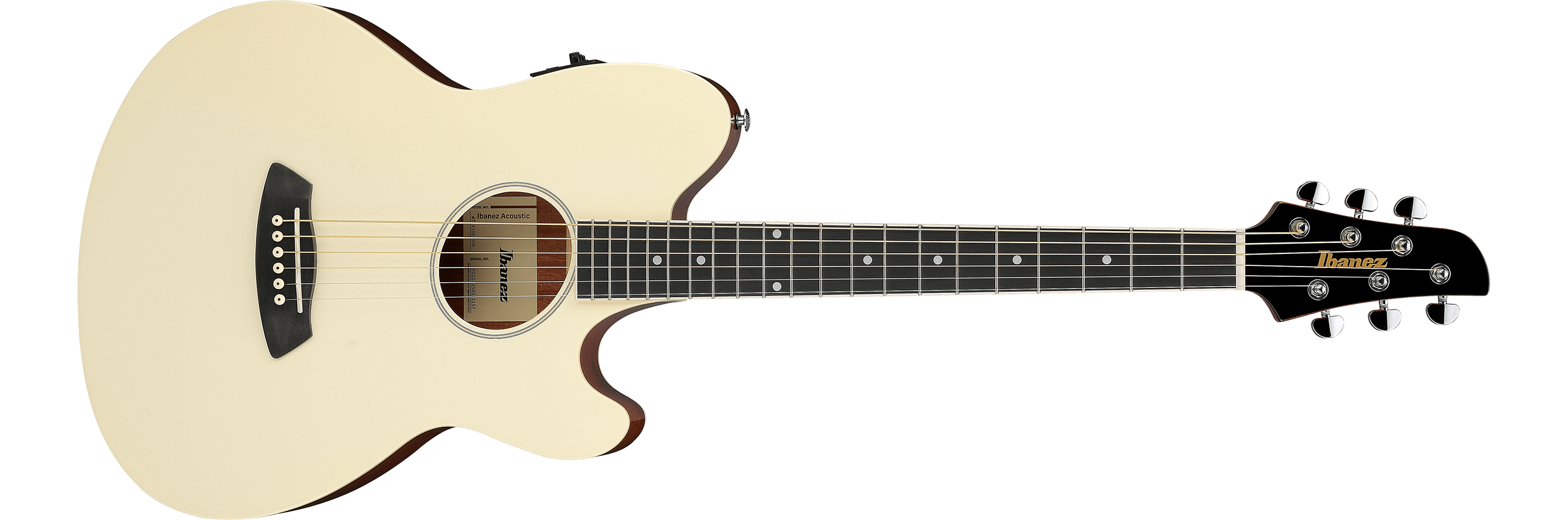

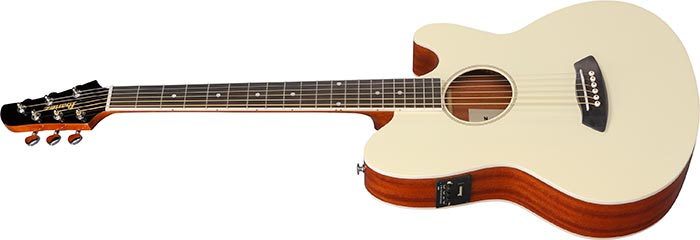

IVH : Ivory High Gloss

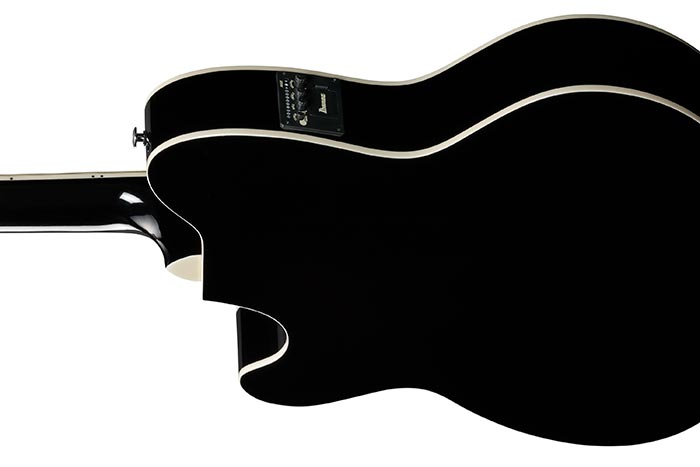

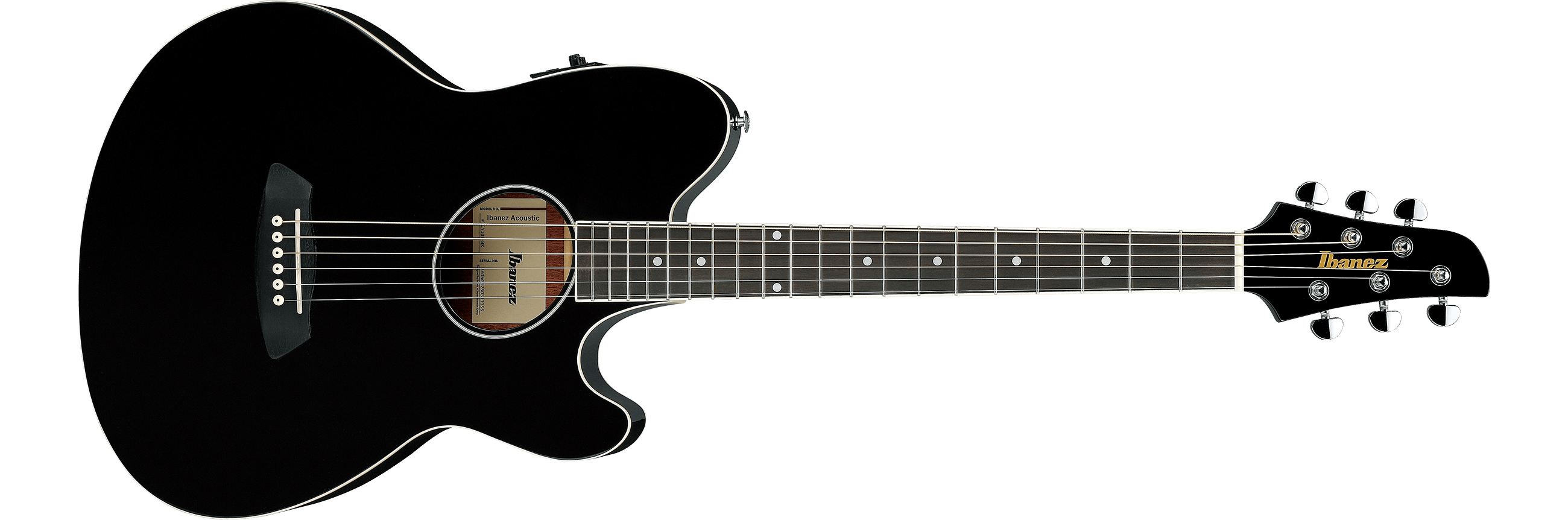

BK : Black High Gloss

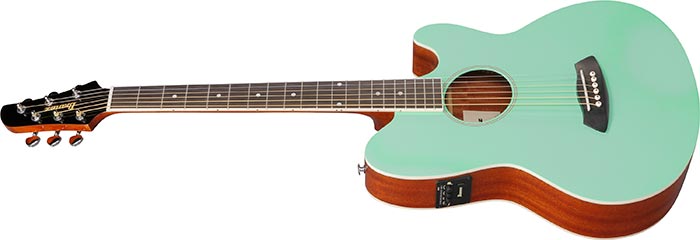

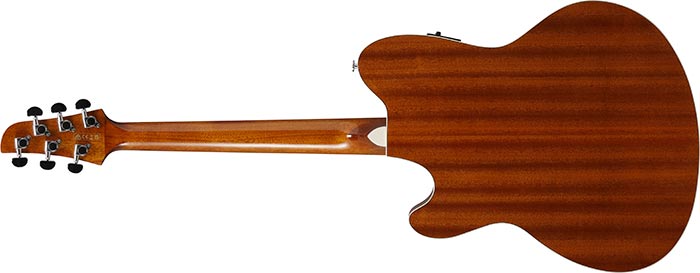

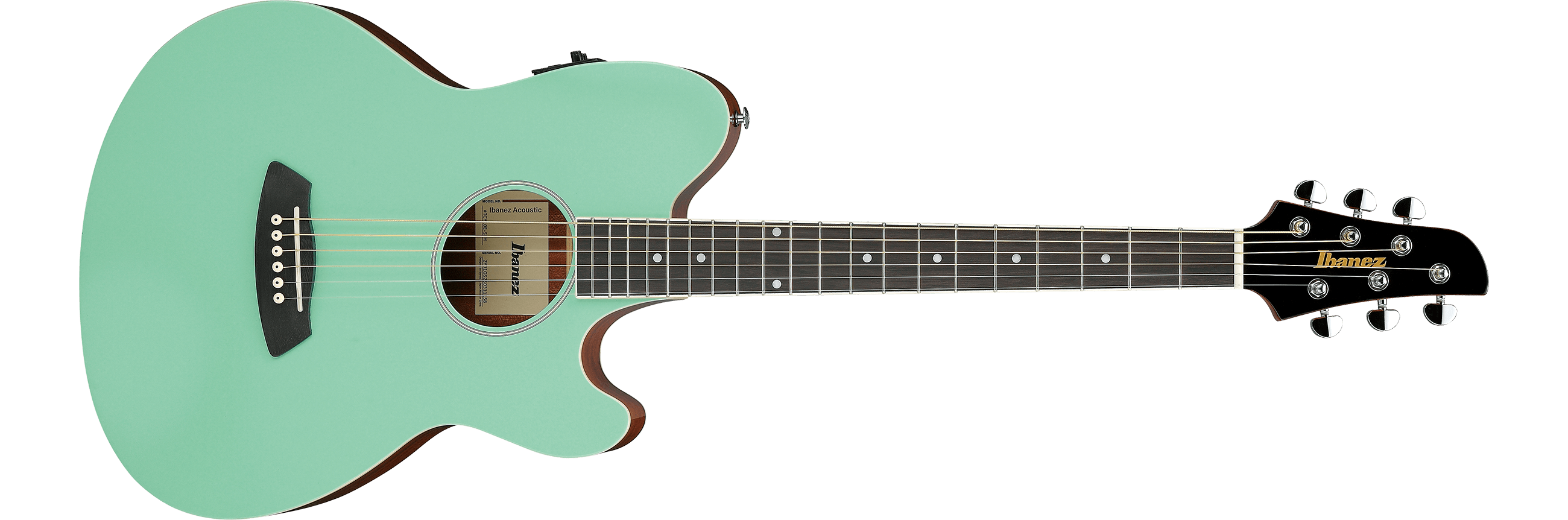

SFH : Seafoam Green High Gloss

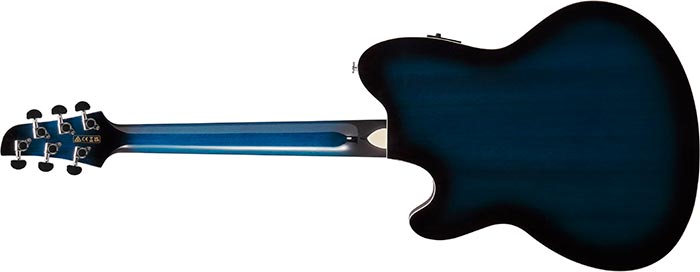

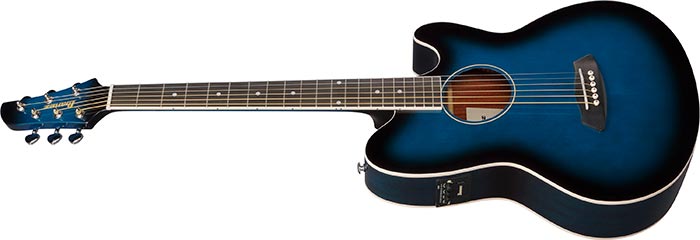

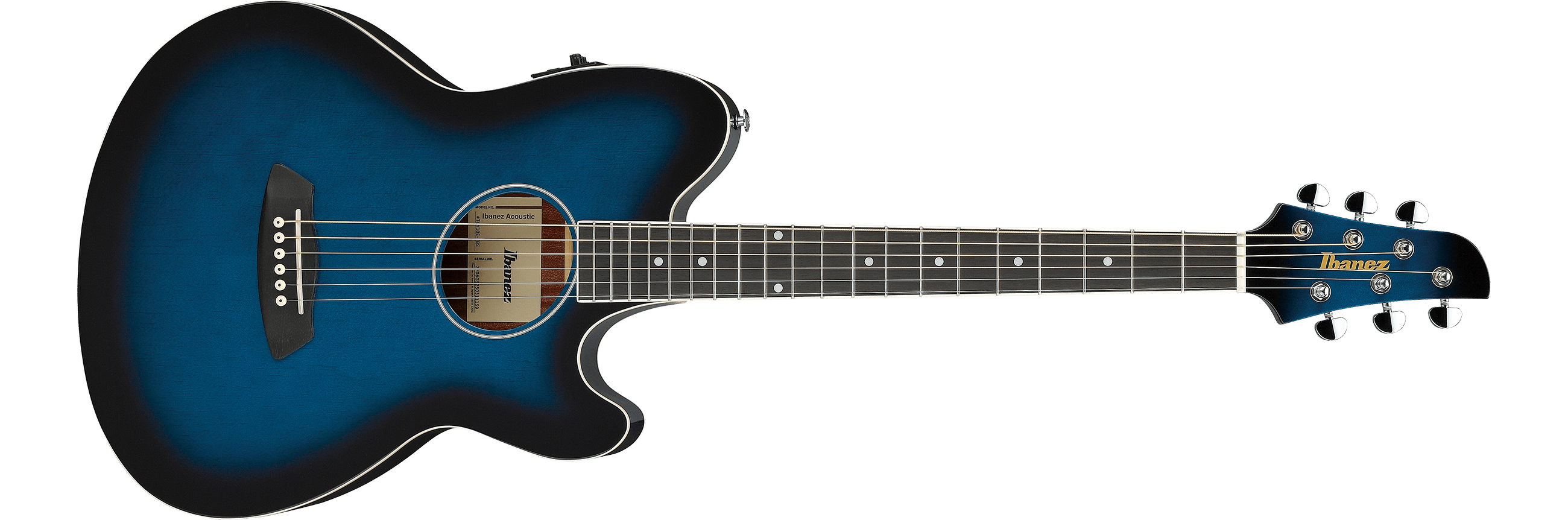

TBS : Transparent Blue Sunburst High Gloss

COLOR VARIATION：

Talman

SPEC

SPECS
- body shape

  Talman Double Cutaway body
- top

  Spruce top

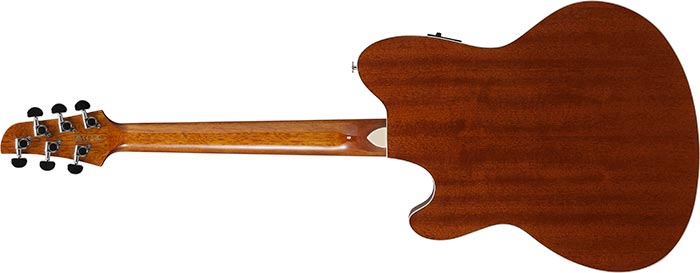

- back & sides

  Sapele back & Sapele sides
- neck

  TCYOkoume neck
- fretboard

  Purpleheart fretboard
- bridge

  Purpleheart bridge
- inlay

  White dot inlay
- soundhole rosette

  Black & White multi

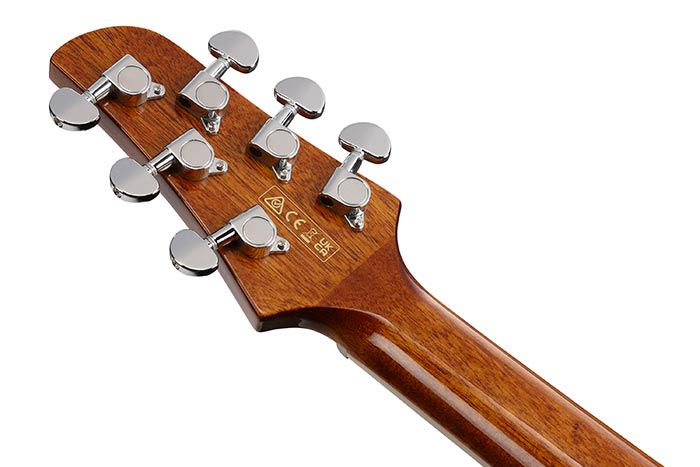

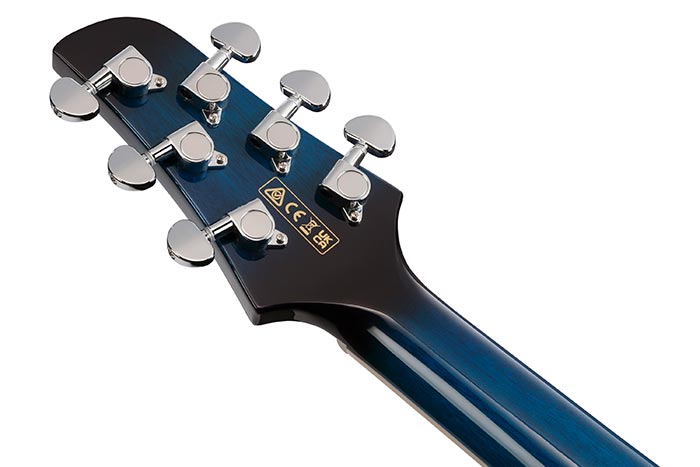

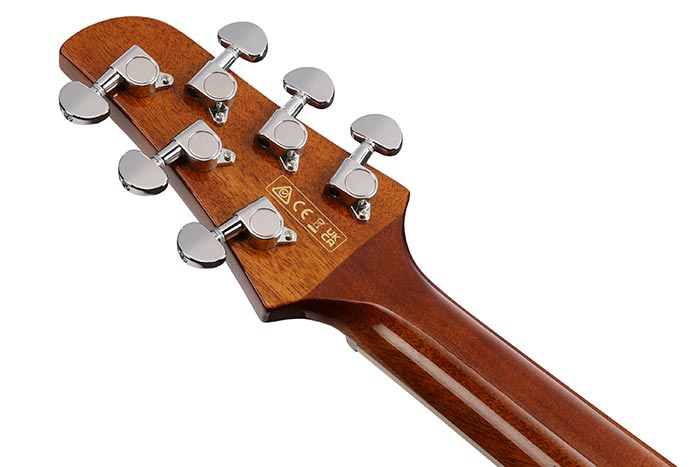

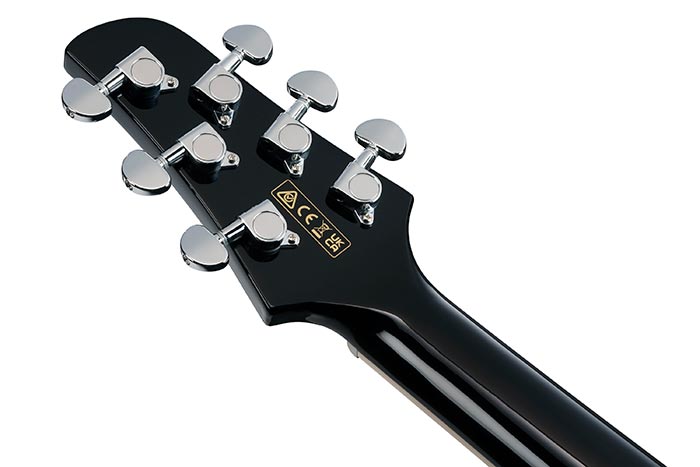

- tuning machine

  Chrome Die-cast tuners
- number of frets

  20
- bridge pins

  Ibanez Advantage™
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez Undersaddle
- preamp

  Ibanez AEQ-2T preamp w/Onboard tuner
- output jack

  1/4" output
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    650mm/25.6"
  - a : Width

    42mm at NUT
  - b : Width

    54mm at 14F
  - c : Thickness

    21.5mm at 1F
  - d : Thickness

    23.5mm at 7F
  - Radius :

    250mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    18 1/8"
  - b : Width

    14 3/8"
  - c : Max Depth

    3 5/8"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

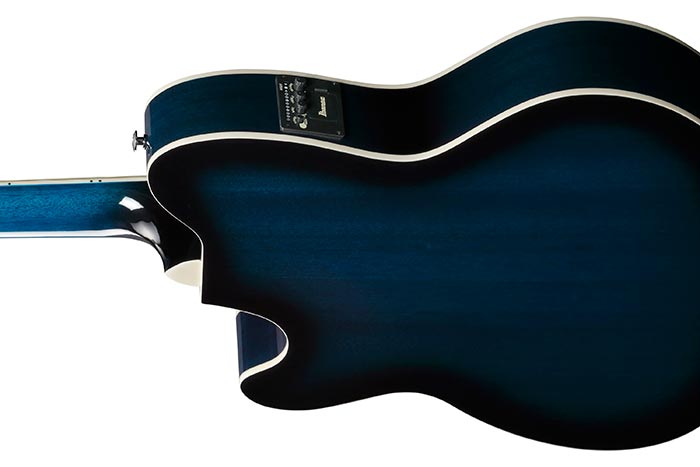

The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
OTHER FEATURES
- Recommended Case

  TM50C

Features

Okoume neck

The Okoume neck provides greater playing comfort.

Ibanez Undersaddle pickup

The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.

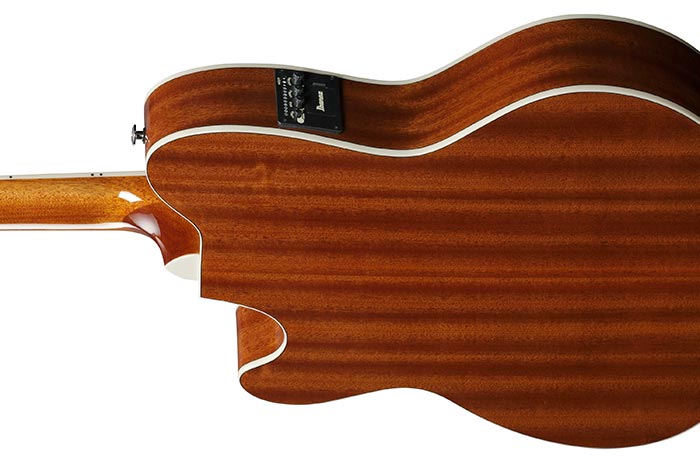

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

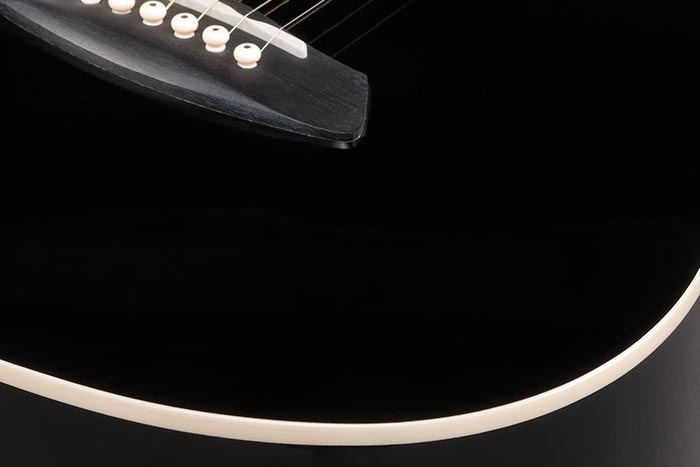

Spruce top

Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

Purpleheart bridge

The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
