TCM50FM
- ODB : Open Pore Denim Blue
- COLOR VARIATION：
SPEC
-
SPECS
-

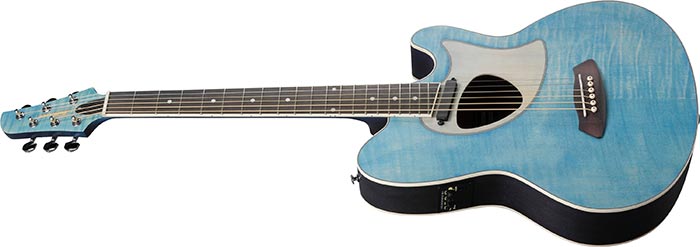

body shapeTalman Double Cutaway body
-
topFlamed Maple top
-

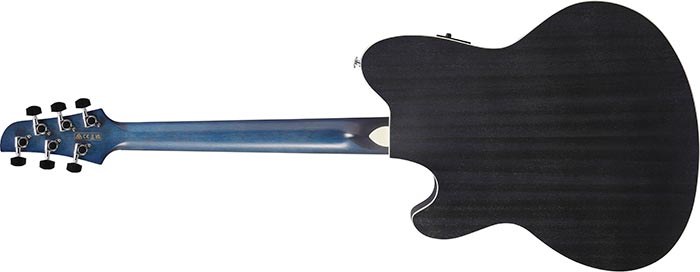

back & sidesSapele back & Sapele sides
-
neckTCMOkoume neck
-
fretboardPurpleheart fretboard
-
bridgePurpleheart bridge
-
inlayWhite dot inlay
-
soundhole rosetteBasswood marquetry
-

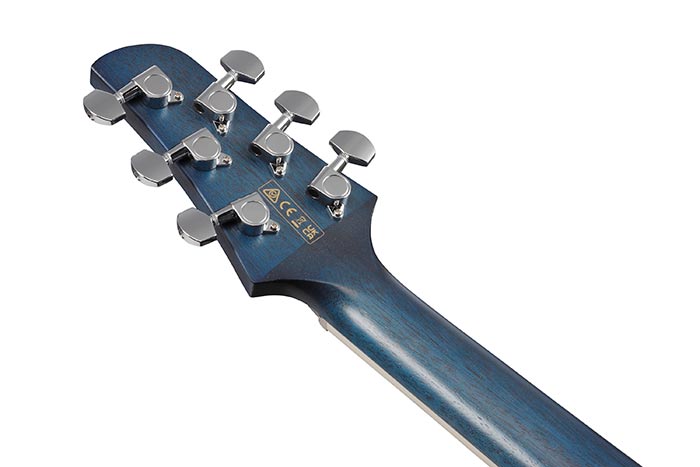

tuning machineChrome Die-cast tuners
-
number of frets20
-
bridge pinsIbanez Advantage™
-
string gauge.012/.016/.024/.032/.042/.053
-
string space11mm
-
factory tuning1E,2B,3G,4D,5A,6E
-
pickupIbanez AP2 Magnetic
-
preampIbanez AEQ-2TM preamp w/Onboard tuner
-
output jack1/4" output
-
battery9Vx1
-
-
NECK DIMENSIONS
-
-
Scale :650mm/25.6"
-
a : Width42mm at NUT
-
b : Width54mm at 14F
-
c : Thickness21.5mm at 1F
-
d : Thickness23.5mm at 7F
-
Radius :250mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length18 1/8"
-
b : Width14 3/8"
-
c : Max Depth3 5/8"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
With the guitar held in the playing position, the button closest to the player is the tuner on/off switch. The second knob is the bass boost/cut, the third is the treble boost/cut, and the last is the volume boost/cut. Turning knobs to the left cuts frequencies and turning knobs right boosts them.
-
OTHER FEATURES
Features
Okoume neck
The Okoume neck provides greater playing comfort.
Flamed Maple top
The Flamed Maple top creates an attractive visual profile and offers a bright and tight tone.
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Ibanez AP2 Magnetic pickup
The AP2 magnetic pickup perfectly reproduces an acoustic guitar's natural, warm sound.
Ibanez AEQ-2TM preamp w/Onboard tuner
The AEQ-2TM preamp is specifically-designed to adjust the frequencies of a bass and a treble, and allows operation of the built-in tuner without the instrument being plugged in.
Purpleheart fretboard & bridge
Purpleheart produces a rich mid range with a crisp high end.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
