TCM50

TCM50-VBS
TCM50-NT
  • VBS : Vintage Brown Sunburst High Gloss
  • NT : Natural High Gloss
  • COLOR VARIATION：

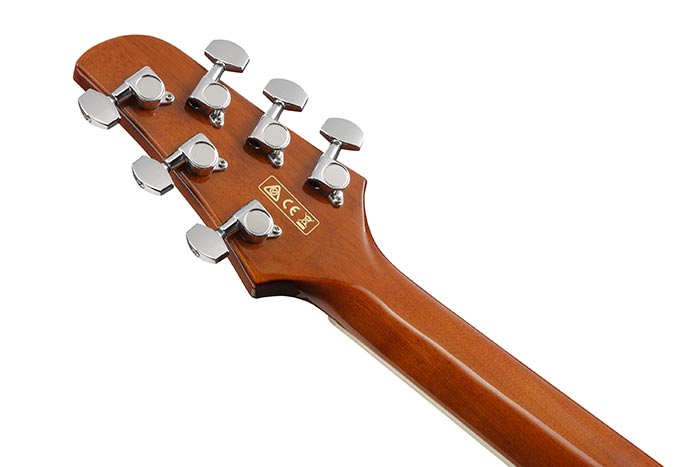

Back of the TCM50-VBS's headstock

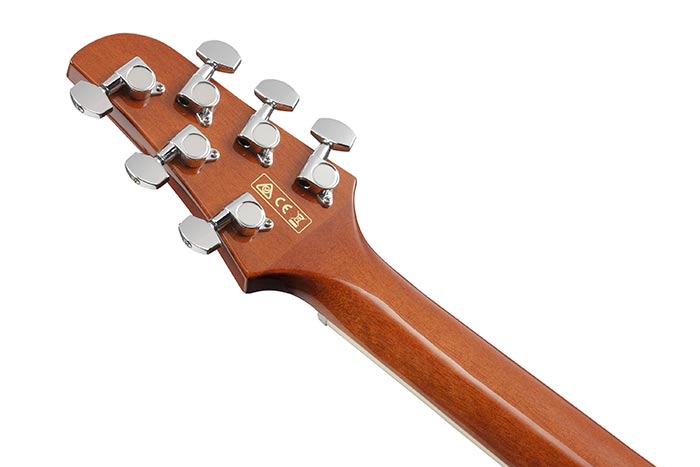

Back of the TCM50-NT's headstock
Back of the TCM50-VBS's body

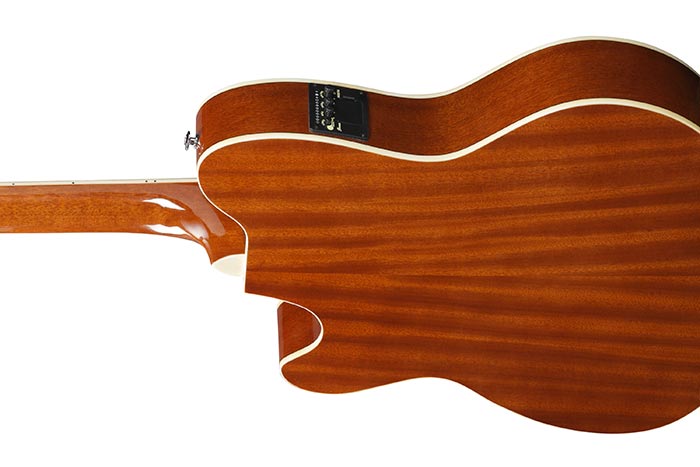

Back of the TCM50-NT's body

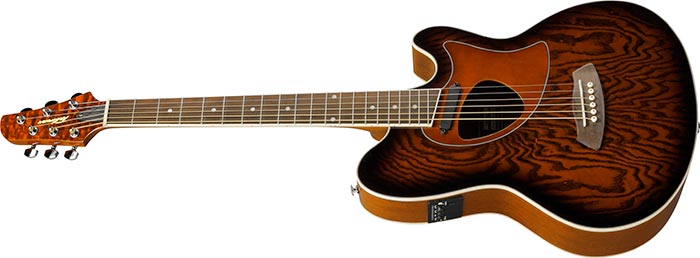

Entire top of the TCM50-VBS

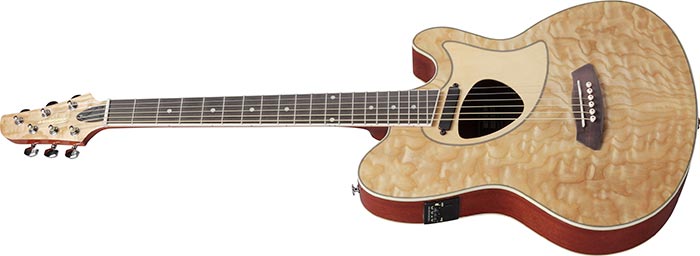

Entire top of the TCM50-NT

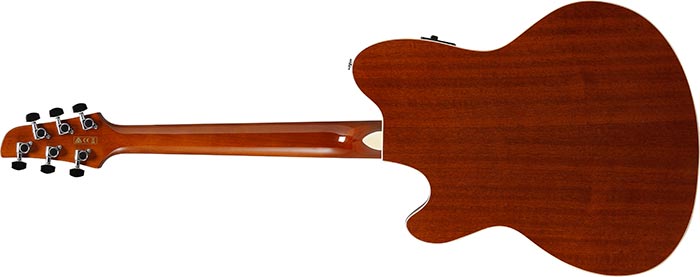

Entire back of the TCM50-VBS

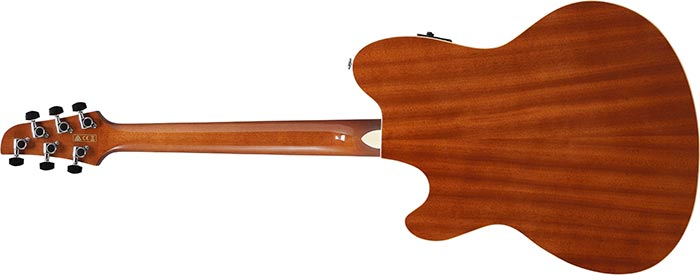

Entire back of the TCM50-NT
Talman

SPEC

  • SPECS

    • body shape
      Talman Double Cutaway body
    • top
      Figured Ash top
    • back & sides
      Sapele back & Sapele sides
    • neck
      TCMOkoume neck
    • fretboard
      Purpleheart fretboard
    • bridge
      Purpleheart bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Basswood marquetry
    • tuning machine
      Chrome Die-cast tuners
    • number of frets
      20
    • bridge pins
      Ibanez Advantage™
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez AP2 Magnetic
    • preamp
      Ibanez AEQ-2TM preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        650mm/25.6"
      • a : Width
        42mm at NUT
      • b : Width
        54mm at 14F
      • c : Thickness
        21.5mm at 1F
      • d : Thickness
        23.5mm at 7F
      • Radius :
        250mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        18 1/8"
      • b : Width
        14 3/8"
      • c : Max Depth
        3 5/8"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    TCM50's preamp diagram

    DESCRIPTION

    With the guitar held in the playing position, the button closest to the player is the tuner on/off switch. The second knob is the bass boost/cut, the third is the treble boost/cut, and the last is the volume boost/cut. Turning knobs to the left cuts frequencies and turning knobs right boosts them.

  • OTHER FEATURES

Features

Okoume neck

Okoume neck

The Okoume neck provides greater playing comfort.

Ibanez AP2 Magnetic pickup

Ibanez AP2 Magnetic pickup

The AP2 magnetic pickup perfectly reproduces an acoustic guitar's natural, warm sound.

Purpleheart fretboard & bridge

Purpleheart fretboard & bridge

Purpleheart produces a rich mid range with a crisp high end.

Ibanez Advantage bridge pins

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
