SRD905F
- BTL : Brown Topaz Burst Low Gloss
- COLOR VARIATION：
SPEC
-
SPECS
-
neck typeSRD55pc Maple/Walnut neck
-
top/back/bodyExotic Maple topOkoume body
-
fretboardBound Panga Panga fretboardAbalone oval inlay
-
fretFretless
-
bridgeAeroSilk MR5 bridge
-
string space16.5mm
-
neck pickupNordstrand™ Big Break neck pickupPassive
-
bridge pickupNordstrand™ Big Break bridge pickupPassive
-
equaliserIbanez 2-band EQ w/Piezo active tone control
-
factory tuning1G,2D,3A,4E,5B
-
stringsD'Addario® ECB81-5 Flatwound
-
string gauge.045/.065/.080/.100/.132
-
hardware colorBlack
-
-
NECK DIMENSIONS
-
-
Scale :864mm/34"
-
a : Width45mm at NUT
-
b : Width68mm
-
c : Thickness21.5mm at 1F
-
d : Thickness23.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
There are six knobs total on this bass. With the bass held in the playing position, there are three knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck, these knobs control the piezo active tone, magnetic pickup treble boost/cut, and magnetic pickup bass boost/cut. Above these controls are three additional knobs located closer to the bridge. Directionally, from the lower bout towards the neck, these knobs control the piezo volume, bridge pickup volume, and neck pickup volume. You can also adjust the gain for each string with the trim pots located on the back panel. Turn the trim pot clockwise with a Philips head to boost gain, or turn the trim pot counter clockwise to cut gain. The trim pots are arranged in order with the strings.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz and a variable width that decreases toward the high range, and a curve that the variable width becomes zero at approximately 1000 Hz. The variable range becomes slightly larger in the high range than around 1000 Hz, but it becomes zero again near 5000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve creates a bell-shaped curve with a peak around 10000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB.
-
OTHER FEATURES
Features

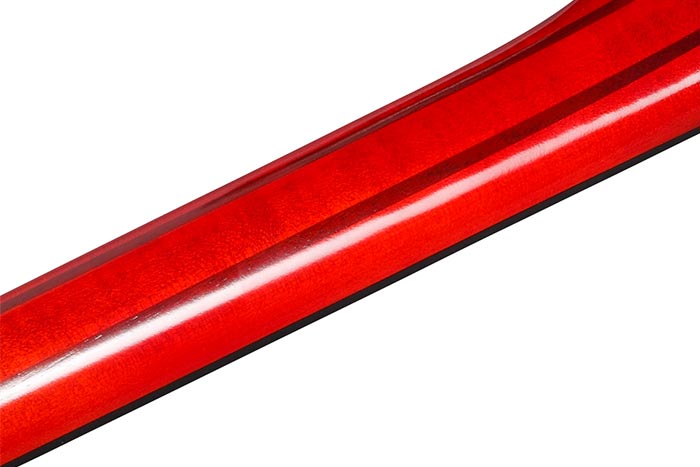

5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.

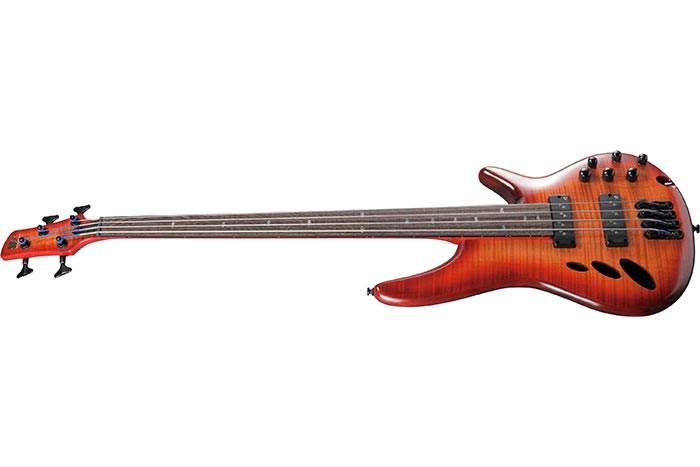

30 Fret Neck
It has an extended 30-fret fretboard for playing upper register notes usually only accessible on an upright.

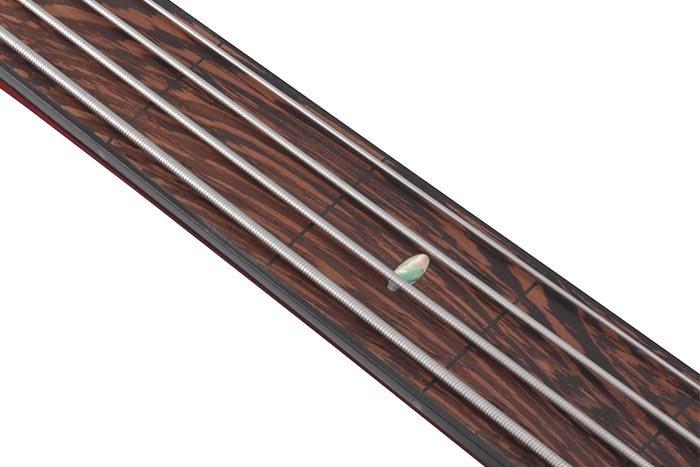

Panga Panga fretboard
Panga Panga features a beautiful wood grain which produces a tight low and mid range, along with a sharp attack on high end.

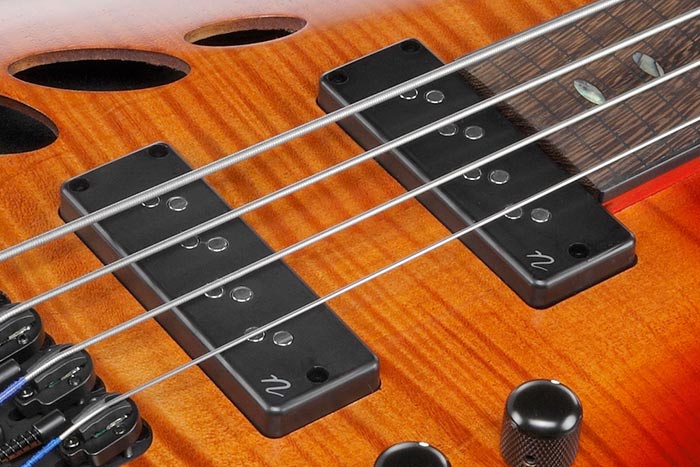

Nordstrand™ Big Break / AeroSilk piezo pickups
Nordstrand™ "Big Break" pickups cram a powerful split coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while retaining the clarity that's characteristic of single coil tone with noiseless performance. The custom bridge contains the magic of the AeroSilk Piezo system to provide that sense of "air" that characterizes upright sound.

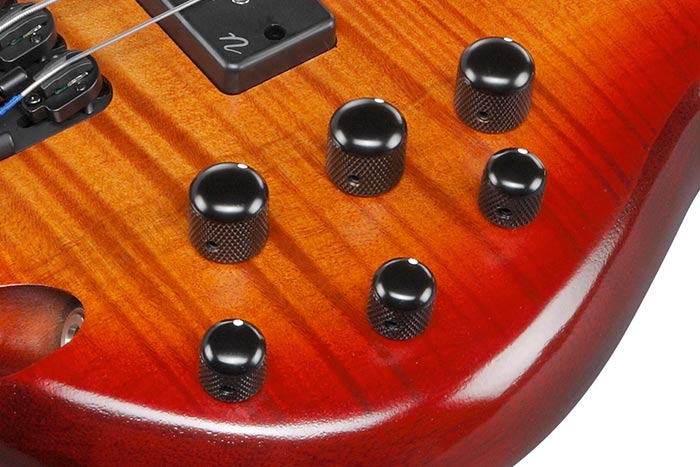

Ibanez 2-band EQ w/Piezo active tone control
The EQ section incorporates the controls of the magnetic pickup(s) with the AeroSilk Piezo system. Controls include a Master volume, bass and treble controls for the pickup(s) and a Master volume and a tone control for the Piezo system.

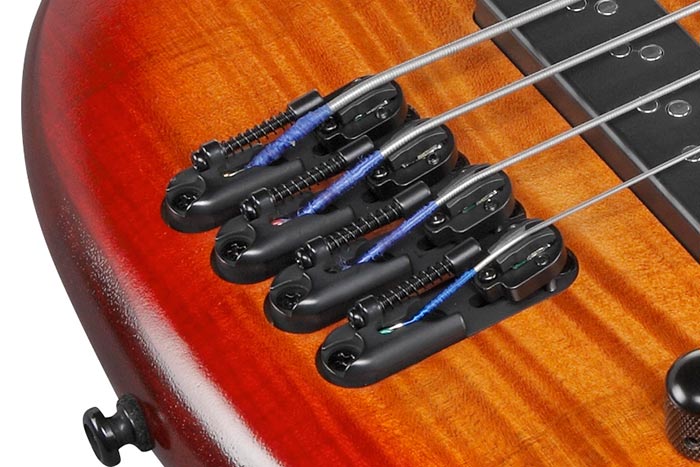

AeroSilk MR5 bridge
The AeroSilk MR5 bridge has unique saddles which were specifically-designed to work in concert with the piezo pickups, enhancing the acoustic "Upright" quality of the tone.
Luminescent side dot inlays
Luminescent side dot inlay provides clear visibility in dark environments.
