SDB3
SPEC
-
SPECS
-
neck typeSDB5pc Maple/Walnut neck
-
top/back/bodyOkoume body
-
fretboardBound Rosewood fretboardAcrylic iron cross inlay
-
fretMedium frets
-
number of frets22
-
bridgeMR4 bridge
-
string space19mm
-
neck pickupPFR-N4(Black Pole Piece) neck pickupPassive
-
bridge pickupPFR-B4(Black Pole Piece) bridge pickupPassive
-
equalizerIbanez Custom Electronics 2-band EQ
-
factory tuning1D#,2A#,3F,4C
-
stringsD'Addario® EXL
-
string gauge.060/.080/.100/.120
-
hardware colorCosmo black
-
-
NECK DIMENSIONS
-
-
Scale :864mm/34"
-
a : Width43mm at NUT
-
b : Width60mm at 22F
-
c : Thickness22.5mm at 1F
-
d : Thickness22.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
With the bass held in the playing position, the volume and bass boost/cut knobs are situated along the lower edge of the body. The knob closest to the input jack is the bass bosst/cut knob, and the knob closest to the neck is the volume knob. Above the volume and bass knobs are the treble boost/cut and pickup balancer knobs. The treble knob is closest to the input jack and the balancer knob is closest to the neck.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at 20 Hz and a variable width that decreases toward the high range, and a curve that the variable width becomes zero at approximately 1000 Hz. The variable range becomes slightly larger in the high range than around 1000 Hz, but it becomes zero again near 5000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve creates a bell-shaped curve with a peak around 10000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB.
-
OTHER FEATURES
- Recommended Case
-
ICB100C
- Gotoh® machine heads
Features

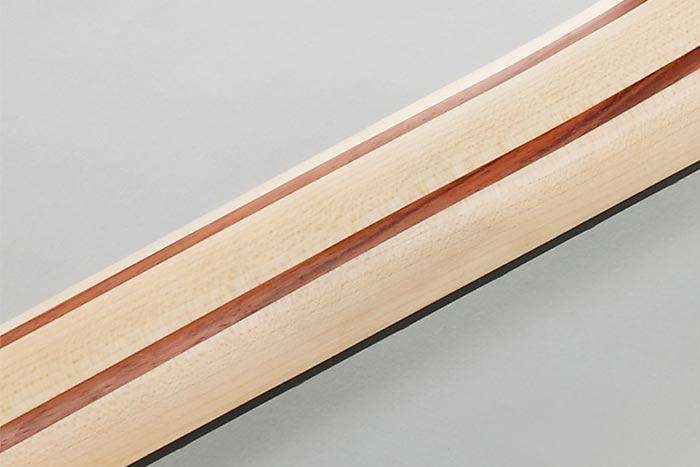

5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

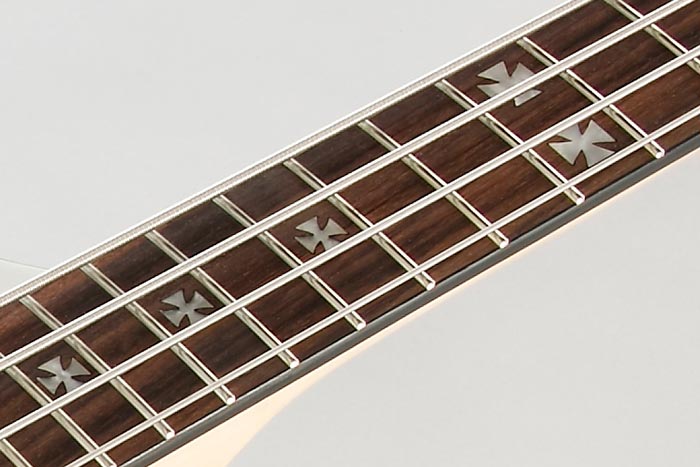

Medium frets
Medium sized frets enhance the accuracy of your notes.

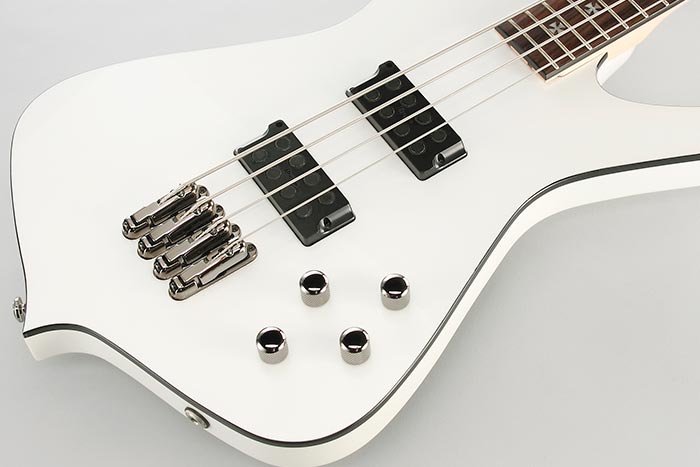

Okoume body
The Okoume body provides a bright and solid sound.
PFR pickups
The high-output PFR, the mighty Ibanez original pickup, has earned the respect of many artists, endorsers and working pros.
Ibanez Custom Electronics 2-band EQ
The Ibanez Custom Electronics 2-band EQ offers a wide range of sounds.

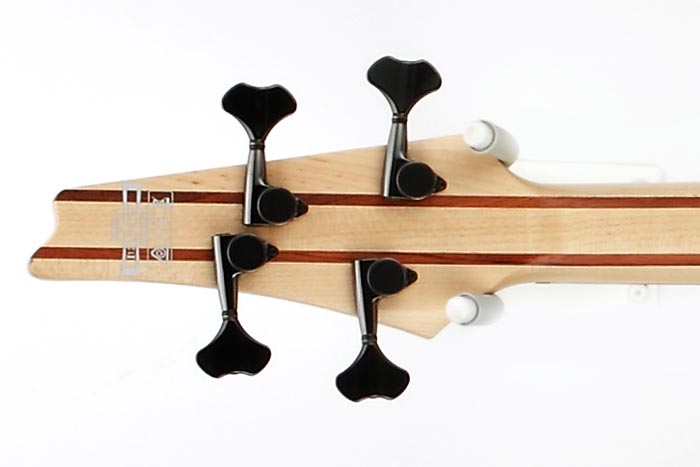

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
MR4 bridge
The Mono-Rail IV Bridge is the ultimate in string isolation for bass. Each saddle is independently and securely locked down to the body for maximum vibration transfer and no interference. One screw controls the height of each saddle for easy adjustment.
