S721RB

  • S721RB-BKF
  • BKF : Black Flat
  • COLOR VARIATION：

COLOR VARIATION

S

SPEC

  • SPECS

    • neck type
      Wizard III5pc Maple/Walnut neck
    • top/back/body
      Okoume body
    • fretboard
      Ebony fretboard
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      Gibraltar Standard III bridge
    • string space
      10.8mm
    • neck pickup
      DiMarzio® D Activator™ (H) neck pickupPassive/Ceramic
    • bridge pickup
      DiMarzio® D Activator™ (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL110
    • string gauge
      .010/.013/.017/.026/.036/.046
    • hardware color
      Black

  • NECK DIMENSIONS

    • Scale :
      648mm/25.5"
    • a : Width
      43mm at NUT
    • b : Width
      58mm at 24F
    • c : Thickness
      19mm at 1F
    • d : Thickness
      21mm at 12F
    • Radius :
      400mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    S721RB's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    S721RB's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

Features

Jumbo frets

Jumbo frets contribute to smooth playability, especially for single-note playing.

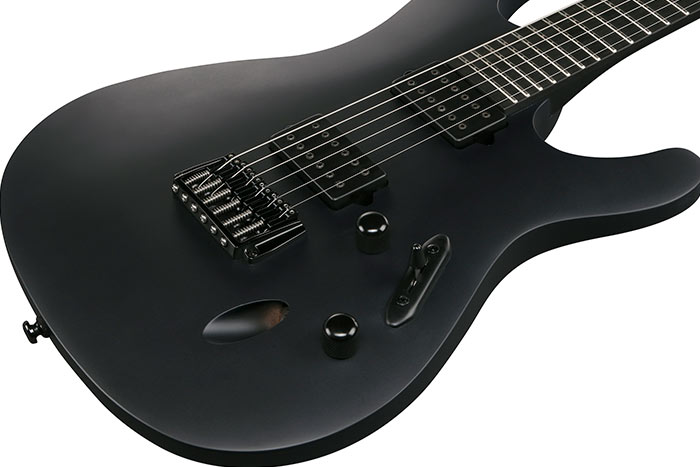

Okoume body

The Okoume body provides a bright and solid sound.

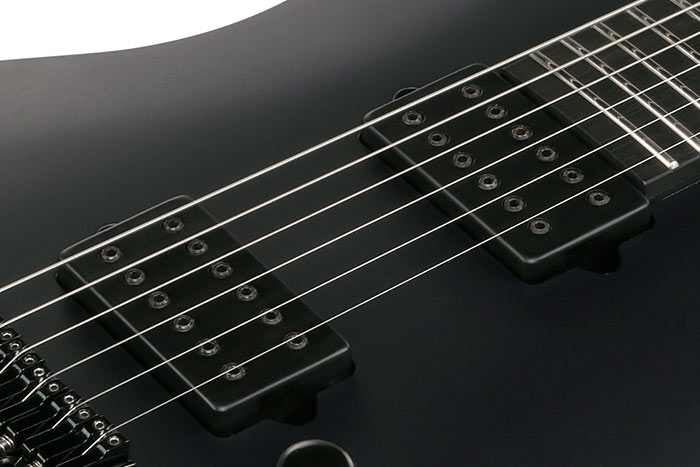

DiMarzio® D Activator™ pickups

DiMarzio® D Activator™ pickups have a powerful, clean, and open sound with excellent harmonic overtones and very tight low-end response.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Gibraltar Standard III bridge

The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Wizard III 5pc Maple/Walnut neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
