S520AH

S520AH-OBF
S520AH-ABS
  • OBF : Cosmic Blue Flat
  • ABS : Antique Brown Stained
  • COLOR VARIATION：

Top of the S520AH-OBF's body
Top of the S520AH-ABS's body
Back of the S520AH-OBF's body
Back of the S520AH-ABS's body
Entire top of the S520AH-OBF
Entire top of the S520AH-ABS
Entire back of the S520AH-OBF
Entire back of the S520AH-ABS
S

SPEC

  • SPECS

    • neck type
      Wizard IIIMaple neck
    • top/back/body
      Ash body
    • fretboard
      Rosewood fretboardOff-set white dot inlay
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      Edge-Zero II bridge
    • string space
      10.8mm
    • neck pickup
      Quantum (H) neck pickupPassive/Ceramic
    • bridge pickup
      Quantum (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL120
    • string gauge
      .009/.011/.016/.024/.032/.042
    • nut
      Locking nut
    • hardware color
      Cosmo Black

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        43mm at NUT
      • b : Width
        58mm at 24F
      • c : Thickness
        19mm at 1F
      • d : Thickness
        21mm at 12F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    S520AH's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    S520AH's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

Features

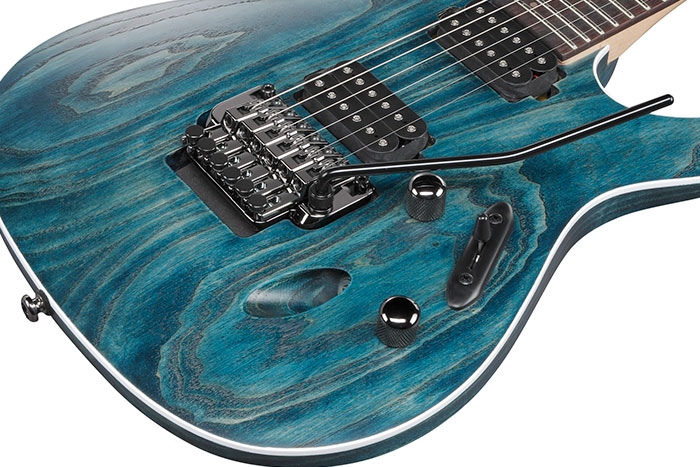

Ash body

Ash body

The Ash body delivers a pleasant brightness and rich sustain.

Rosewood fretboard

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Edge-Zero II tremolo bridge

Edge-Zero II tremolo bridge

The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Wizard III Maple neck

Wizard III Maple neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

Quantum pickups

Quantum pickups

The Quantum pickups have a quick low-end response to picking and are able to capture fast passages with precise note definition, while delivering a full-bodied mid-to-high range.
