RGR6BSP

PHOTOS
SPEC
SUPPORT

IPT : Iron Pewter

COLOR VARIATION：

SPEC

SPECS
- neck type

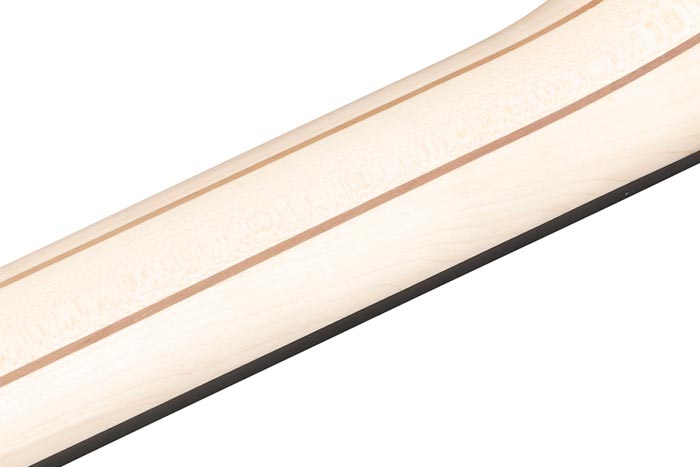

  Wizard III5pc Maple/Walnut neck
- top/back/body

  Nyatoh body
- fretboard

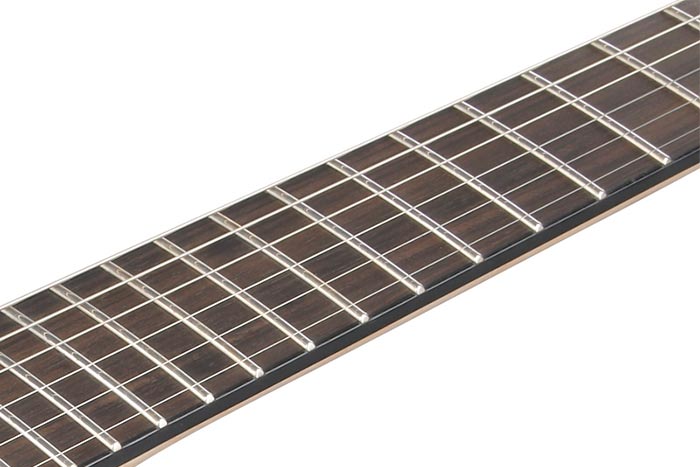

  Ebony fretboard
- fret

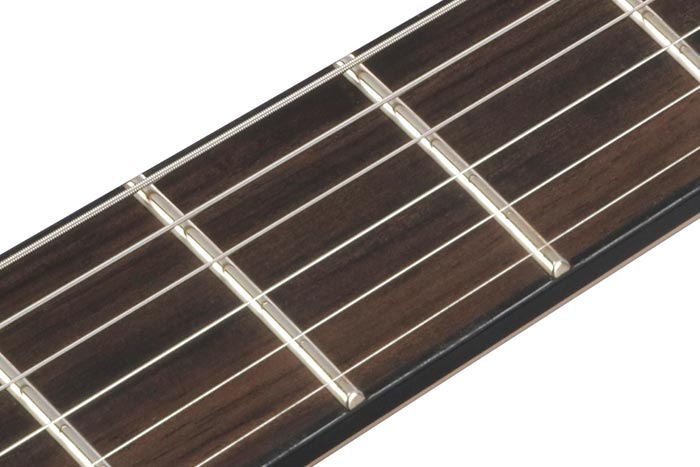

  Jumbo frets
- number of frets

  24
- bridge

  Edge-Zero II bridge
- string space

  10.8mm
- neck pickup

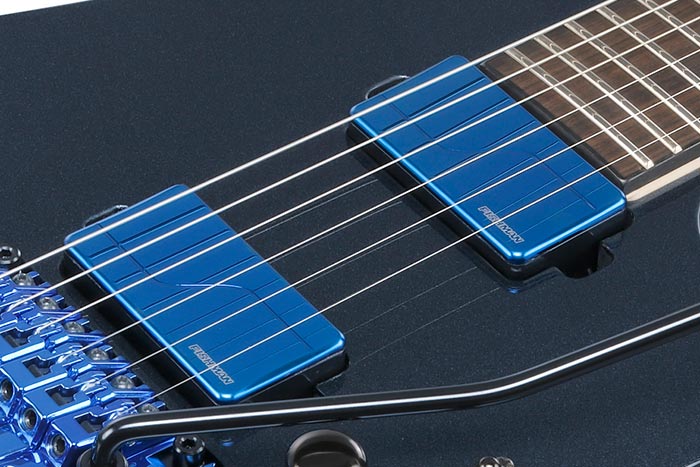

  Fishman® Fluence™ Modern Humbucker Alnico (H) neck pickupActive/Alnico
- bridge pickup

  Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL120
- string gauge

  .009/.011/.016/.024/.032/.042
- nut

  Locking nut
- hardware color

  Black and Metallic Blue
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    43mm at NUT
  - b : Width

    58mm at 24F
  - c : Thickness

    19mm at 1F
  - d : Thickness

    21mm at 12F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
CONTROLS

DESCRIPTION

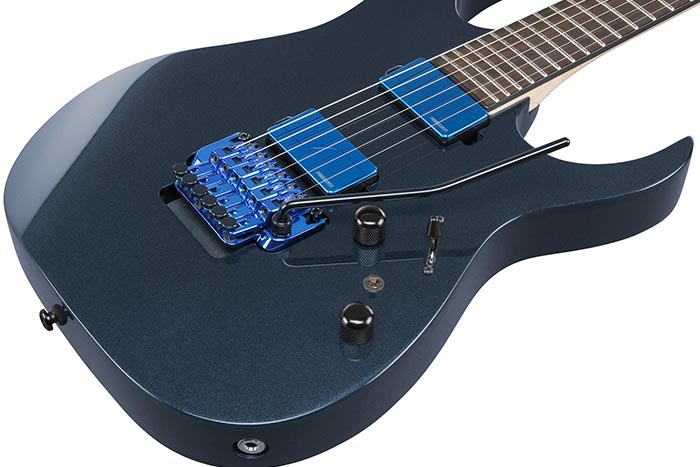

With the guitar held in the playing position, there is a three-way pickup selector switch near the knee cutout on the lower part of the body. There is a push/pull volume knob that also controls the fishman fluence voicing function, as well as a coil tap switch and tone knob toward the end of the body. When the volume knob is down, fluence voice 1 is engaged. With the volume knob up, fluence voice 2 is engaged. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in the bridge position, the coil tap is off.
OTHER FEATURES
- Recommended Case

  M300C
- Coil-tap switch
- Fishman® Fluence™ Voicing switch on volume control (push/pull)
- Luminescent side dot inlay
