RGMS8
- BK : Black
- COLOR VARIATION：
SPEC
-
SPECS
-
neck typeWizard III-8 for Multi Scale5pc Maple/Walnut neck
-
top/back/bodyNyatoh body
-
fretboardJatoba fretboardWhite Step off-set dot inlay
-
fretJumbo frets
-
number of frets24
-
bridgeMono-rail bridge
-
string space10.8mm
-
neck pickupArray 8 MS (H) neck pickupPassive/Ceramic
-
bridge pickupArray 8 MS (H) bridge pickupPassive/Ceramic
-
factory tuning1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F
-
stringsD'Addario® EXL120+.059+.080
-
string gauge.009/.011/.016/.024/.032/.042/.059/.080
-
hardware colorCosmo Black
-
-
NECK DIMENSIONS
-
-
Scale :692mm/27.2" - 648mm/25.5"
-
a : Width55mm at NUT
-
b : Width80mm at 24F
-
c : Thickness20mm at 1F
-
d : Thickness21.5mm at 12F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
-
Recommended Case
-
Features
Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Array-8 MS pickups
Ibanez Array pickups deliver a super tight tone with low noise that handle down-tuning perfectly.
Nyatoh body
Nyatoh used as the body wood provides a rich mid-low end.

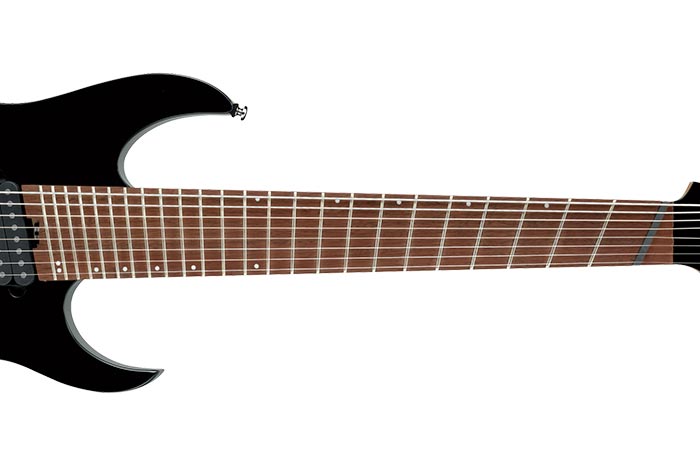

Multi-scale frets (27.26"/25.5")
Using the trapezoidal 27.26"/25.5" scale, its multiscale neck construction provides an equalized tension that creates a lively, open tone. Designed for playability, the slants are matched with the player’s hand angles to facilitate quick playing along with the flatling on the 12th fret. By setting the horizontal point close to bridge’s side, shredding in high frets is easy.
Wizard III 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
