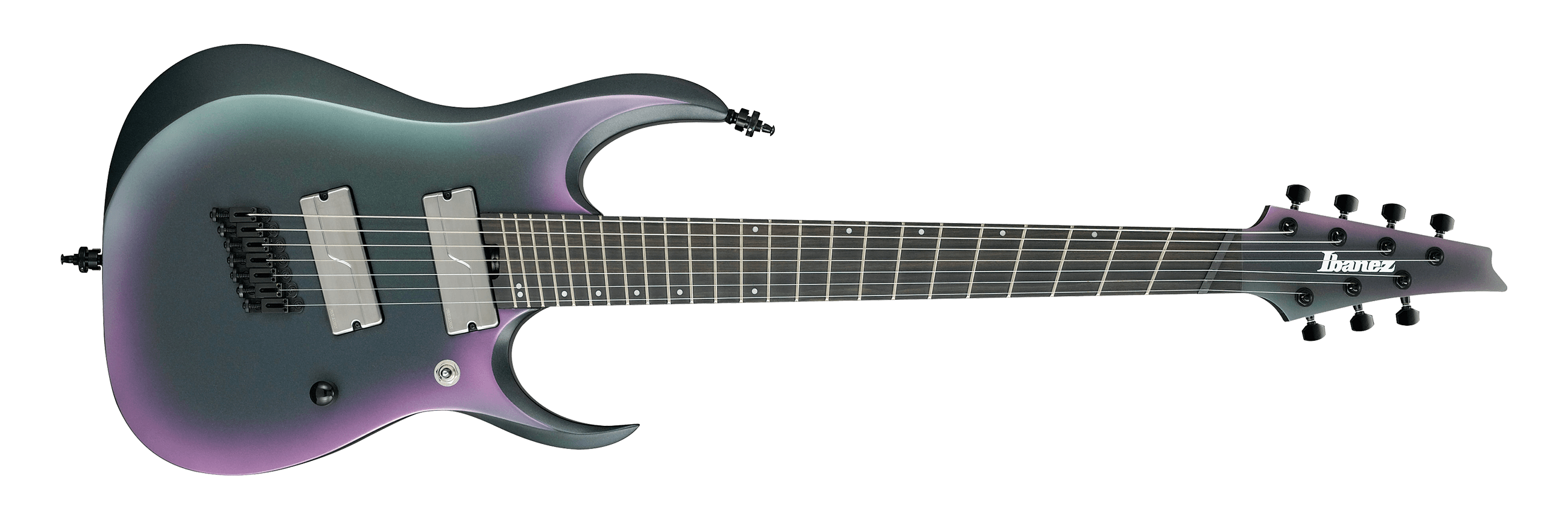

RGD71ALMS
- BAM : Black Aurora Burst Matte
- COLOR VARIATION：
SPEC
-
SPECS
-
neck typeWizard III-7 for Multi Scale5pc Panga Panga/Walnut neck
-
top/back/bodyOkoume body
-
fretboardMacassar Ebony fretboardWhite Step off-set dot inlay
-
fretJumbo Sub Zero treated frets
-
number of frets24
-
bridgeMono-rail bridge
-
string space10.8mm
-
neck pickupFishman® Fluence™ Modern Humbucker Ceramic 8 (H) neck pickupActive/Ceramic
-
bridge pickupFishman® Fluence™ Modern Humbucker Ceramic 8 (H) bridge pickupActive/Ceramic
-
factory tuning1E,2B,3G,4D,5A,6E,7B
-
stringsD'Addario® EXL120+.059
-
string gauge.009/.011/.016/.024/.032/.042/.059
-
hardware colorBlack
-
-
NECK DIMENSIONS
-
-
Scale :686mm/27.0" - 648mm/25.5"
-
a : Width48mm at NUT
-
b : Width68mm at 24F
-
c : Thickness19mm at 1F
-
d : Thickness21mm at 12F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way pickup selector switch close to the knee cutout on the lower part of the body. The knob closest to the lower edge of the body is the volume knob, which also functions as a Fishman Fluence voicing switch. When the knob is down, the pickups are in voice 1, and when the knob is up, the pickups are in voice 2.
-
OTHER FEATURES
-
Recommended Case
-
Fishman® Fluence™ Voicing switch on volume control (push/pull)
-
Gotoh® MG-T locking machine heads
-
Luminescent side dot inlay
-
Schaller S-Locks strap lock pins
-
Luminescent Ibanez logo
-
Features
Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

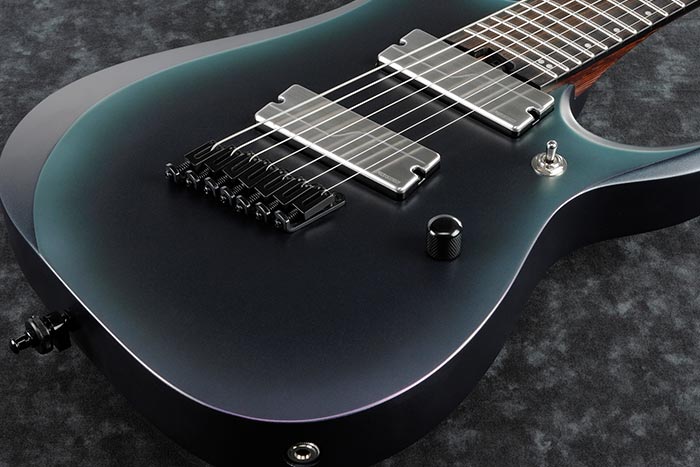

Okoume body
The Okoume body provides a bright and solid sound.
Wizard III 5pc Panga Panga/Walnut neck
The Super-thin and ultra-playable Wizard III 5-piece Panga Panga/Walnut neck substantially increases sustain.
Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.
Jumbo Sub Zero treated frets
Sub Zero treated frets can stand up against the hardest riffing and string-bending.
Luminescent side dot inlays
The luminescent side dot inlays make it easy for players to perform on dark stages, matching the dazzling luminescent Ibanez headstock logo.
Schaller S-Lock strap lock pins
Indestructible Schaller S-Locks don't fail, even under the toughest conditions on stage.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
