RGD61ALET

PHOTOS
SPEC
FEATURES
SUPPORT

MGM : Metallic Gray Matte

COLOR VARIATION：

COLOR VARIATION

RGD

SPEC

SPECS
- neck type

  Wizard III5pc Panga Panga/Walnut neck
- top/back/body

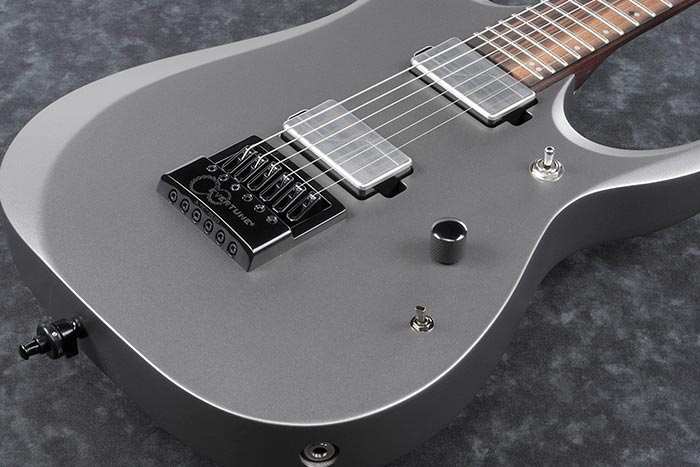

  Maple topOkoume body
- fretboard

  Macassar Ebony fretboardWhite Step off-set dot inlay
- fret

  Jumbo Sub Zero treated frets
- number of frets

  24
- bridge

  Evertune® bridge
- string space

  10.3mm
- neck pickup

  Fishman® Fluence™ Modern Humbucker Ceramic (H) neck pickupActive/Ceramic
- bridge pickup

  Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning

  1D,2A,3F,4C,5G,6D
- strings

  D'Addario® EXL110
- string gauge

  .010/.013/.017/.026/.036/.046
- hardware color

  Black
NECK DIMENSIONS
- Scale :

  673mm/26.5"
- a : Width

  43mm at NUT
- b : Width

  58mm at 24F
- c : Thickness

  19mm at 1F
- d : Thickness

  21mm at 12F
- Radius :

  400mmR
DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the coil tap switch is in the neck position, the coil tap is on. When the coil tap switch is in the bridge position, the coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickup s are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, neck side of the neck pickup is selected. When the switch is in center position, the neck side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the neck side of the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there are two switches and a knob along the lower edge of the body. The switch closest to the knee cutout of the guitar is the three-way pickup selector switch. Towards the end of the body is the volume knob and coil tap switch. The volume knob also functions as a Fishman Fluence voicing switch. When the knob is down, the pickups are in voicing 1, and when the knob is up, the pickups are in voicing 2. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in the bridge position, the coil tap is off.
OTHER FEATURES
- Recommended Case

  M300C
- Coil-tap switch
- Gotoh® MG-T locking machine heads
- Fishman® Fluence™ Voicing switch on volume control (push/pull)
- Luminescent side dot inlay Schaller S-Locks strap lock pins
- Luminescent Ibanez logo
