RGD61

PHOTOS
SPEC
FEATURES
SUPPORT

BAM : Black Aurora Burst Matte

COLOR VARIATION：

RGD

SPEC

SPECS
- neck type

  Wizard IIIRoasted Maple neck
- top/back/body

  Nyatoh body
- fretboard

  Macassar Ebony fretboardWhite Step off-set dot inlay
- fret

  Jumbo frets
- number of frets

  24
- bridge

  Mono-rail bridge
- string space

  10.8mm
- neck pickup

  Fishman® Fluence™ Modern Humbucker Ceramic (H) neck pickupActive/Ceramic
- bridge pickup

  Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning

  1D,2A,3F,4C,5G,6D
- strings

  D'Addario® EXL110
- string gauge

  .010/.013/.017/.026/.036/.046
- hardware color

  Black
NECK DIMENSIONS
- - Scale :

    673mm/26.5"
  - a : Width

    43mm at NUT
  - b : Width

    58mm at 24F
  - c : Thickness

    19mm at 1F
  - d : Thickness

    21mm at 12F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is a three-way pickup selector switch close to the knee cutout on the lower part of the body. The knob closest to the lower edge of the body is the volume knob, which also functions as a Fishman Fluence voicing switch. When the knob is down, the pickups are in voice 1, and when the knob is up, the pickups are in voice 2.
OTHER FEATURES
- Recommended Case

  M300C
- Gotoh® MG-T locking machine heads
- Fishman® Fluence™ Voicing switch on volume control (push/pull)
- Luminescent side dot inlay

Features

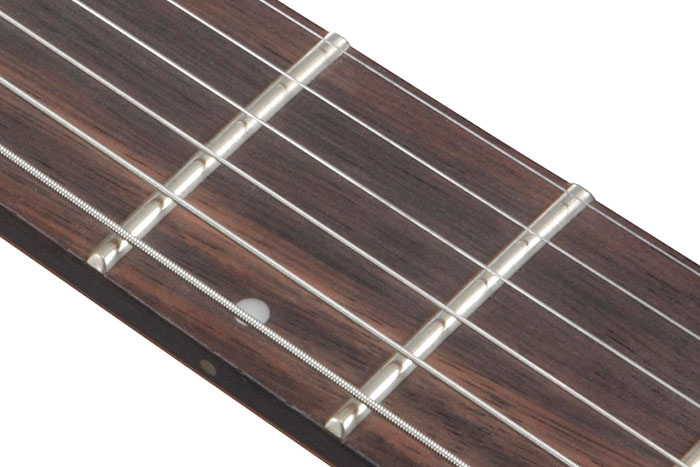

Jumbo frets

Jumbo frets contribute to smooth playability, especially for single-note playing.

Nyatoh body

Nyatoh used as the body wood provides a rich mid-low end.

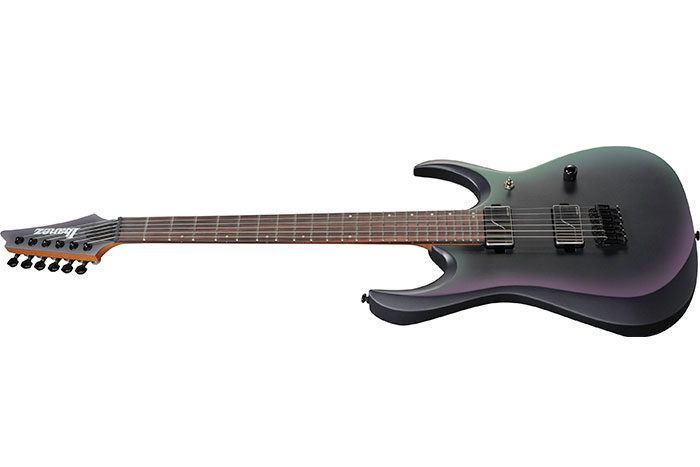

26.5 inch scale

Its extra long 26.5" scale and ability to accurately intonate heavier string gauges, make it the perfect beast for down-tuned metal.

Wizard III Roasted Maple neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

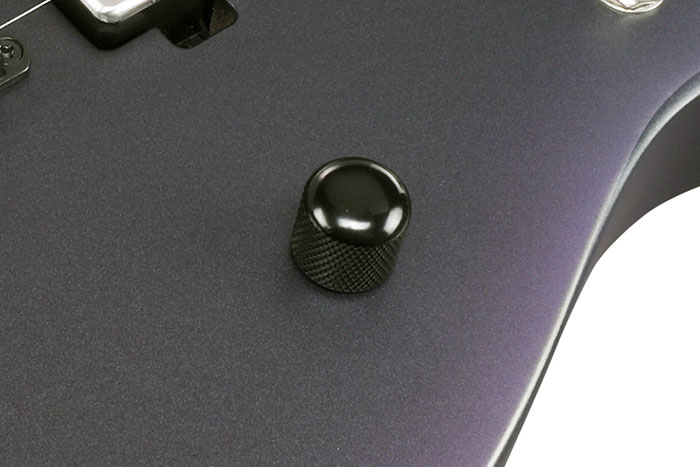

Fishman® Fluence™ Voicing switch on volume control (push/pull)

The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.

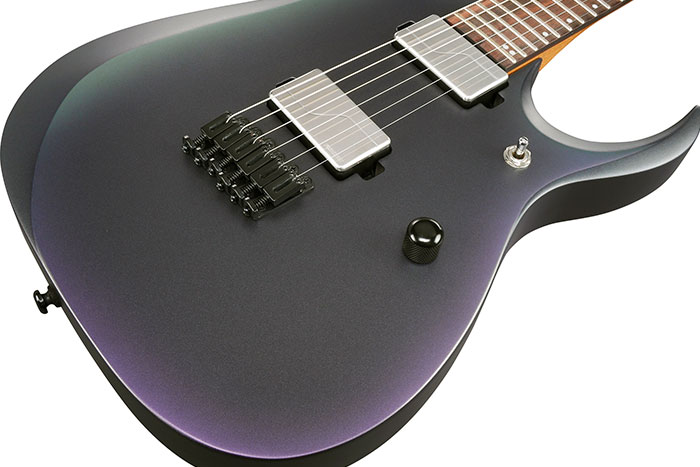

Mono-rail bridge

Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
