RG8527

PHOTOS
SPEC
FEATURES
SUPPORT

BRE : Black Rutile

COLOR VARIATION：

SPEC

SPECS
- neck type

  RG j.custom Wizard-75pc Maple/Wenge neck
- top/back/body

  AAA Flamed Maple (4mm) topAfrican Mahogany body
- fretboard

  Bound Macassar Ebony fretboardTree of Life inlay
- fret

  Jumbo fretsj.custom fret edge treatment
- number of frets

  24
- bridge

  Lo-Pro Edge 7 bridge
- string space

  10.8mm
- neck pickup

  DiMarzio® PAF® 7 (H) neck pickupPassive/Ceramic
- bridge pickup

  DiMarzio® PAF® 7 (H) bridge pickupPassive/Ceramic
- factory tuning

  1E,2B,3G,4D,5A,6E,7B
- strings

  D'Addario® EXL120-7
- string gauge

  .009/.011/.016/.024/.032/.042/.054
- nut

  Locking nut
- hardware color

  Cosmo Black
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    48mm at NUT
  - b : Width

    68mm at 24F
  - c : Thickness

    19mm at 1F
  - d : Thickness

    21mm at 12F
  - Radius :

    430mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
OTHER FEATURES
- Gotoh® machine heads
- Gotoh® Strap lock pins
- Hardshell case included

Features

Wizard 5pc Maple/Wenge neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Selected Flamed Maple top(4mm) / African Mahogany body

Selected Flamed Maple top(4mm) displays a beautiful wood grain and the African Mahogany body delivers a rich mid-low end.

Gotoh® machine heads

Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

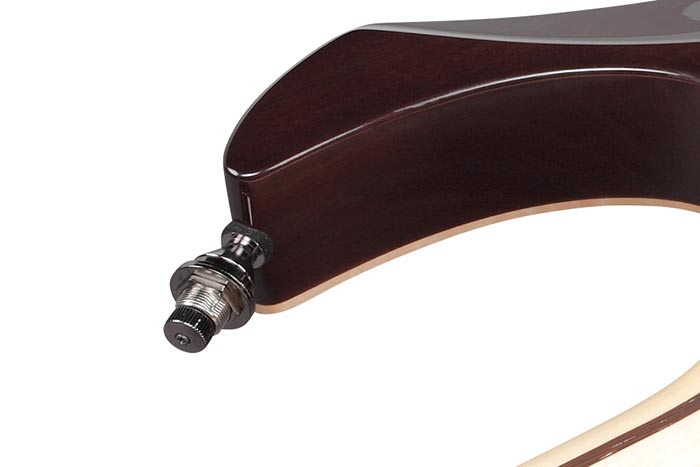

Gotoh® Strap lock pins

Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.

DiMarzio® PAF® 7 pickups

The DiMarzio® PAF®7 pickups produce a sound that's both clean and open on the low notes and warm and rounded on the highs.

Lo-Pro Edge tremolo

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

Special j.custom Neck

RG j.custom Super Wizard 5pc Maple/Wenge neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.

All Access Neck Joint

j.custom special neck joint offers superior playability at the high frets.
