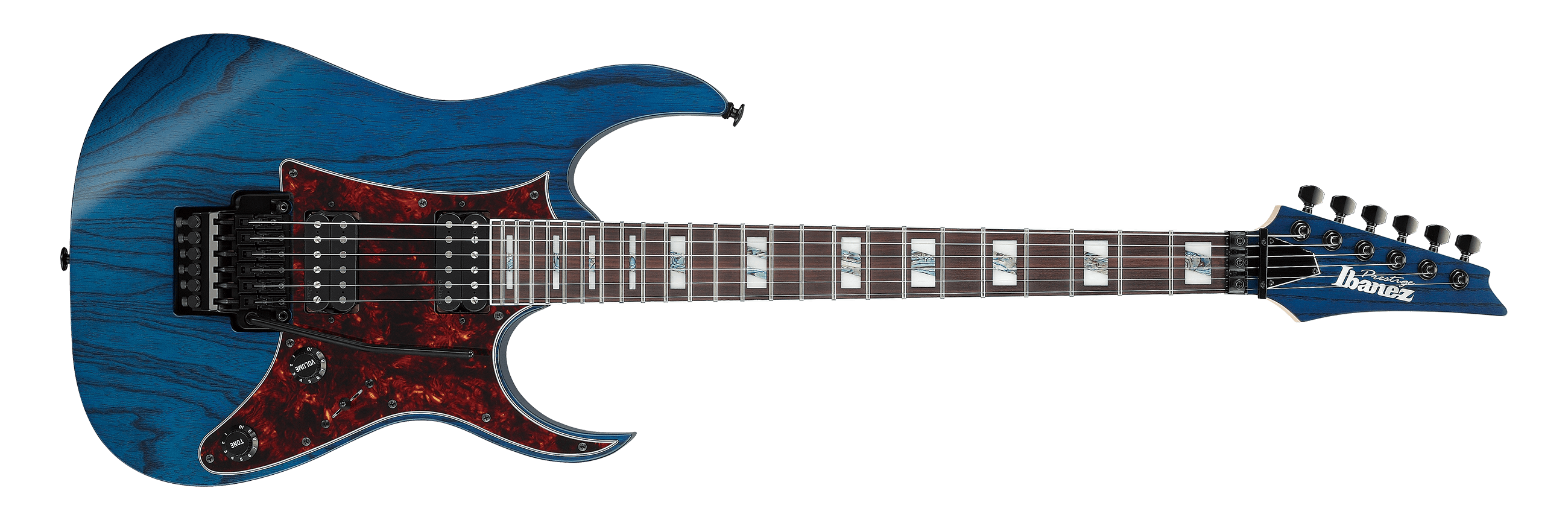

RG653DX

SPEC

SPECS
- neck type

  Super Wizard HP5pc Maple/Walnut neck
- top/back/body

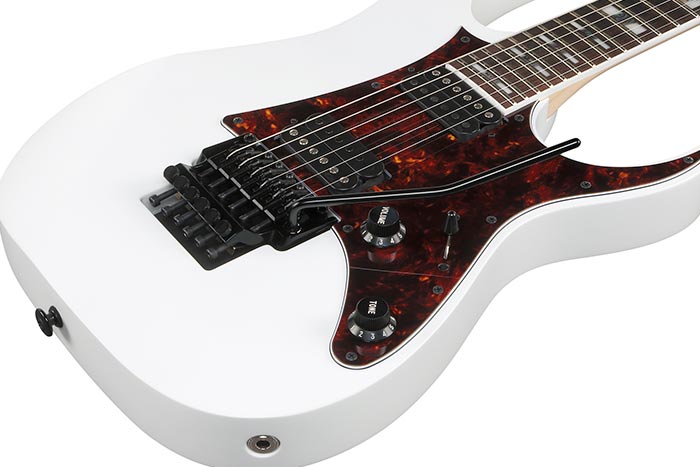

  Ash body
- fretboard

  Bound Rosewood fretboardAcrylic & Abalone block inlay
- fret

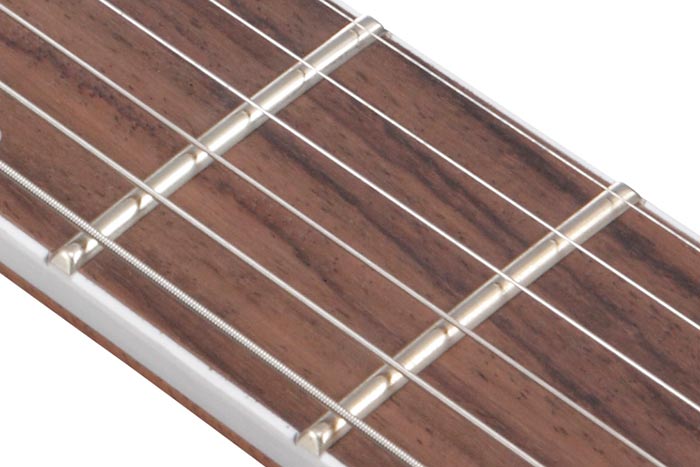

  Jumbo frets
- number of frets

  24
- bridge

  Edge bridge
- string space

  10.8mm
- neck pickup

  DiMarzio® Air Norton™ (H) neck pickupPassive/Ceramic
- bridge pickup

  DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL120
- string gauge

  .009/.011/.016/.024/.032/.042
- nut

  Locking nut
- hardware color

  Black
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    43mm at NUT
  - b : Width

    58mm at 24F
  - c : Thickness

    17mm at 1F
  - d : Thickness

    19mm at 12F
  - Radius :

    430mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

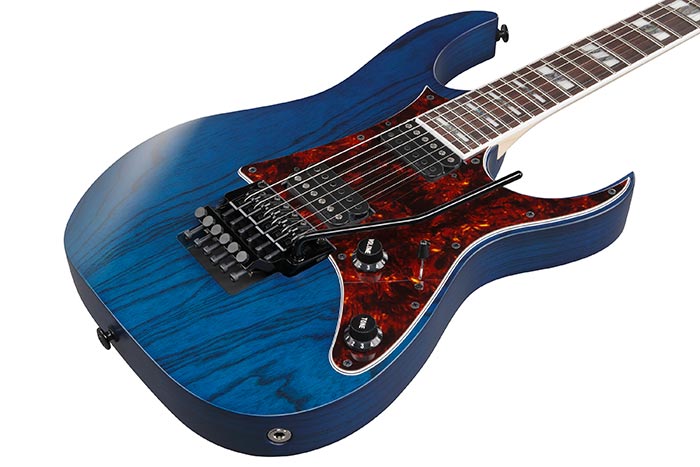

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
OTHER FEATURES
- Hardshell case included
- Gotoh® machine heads
