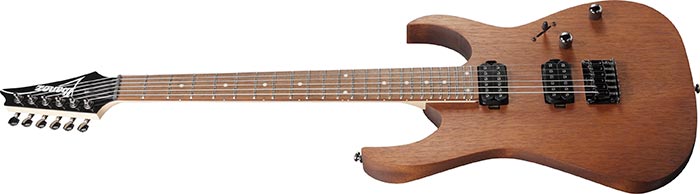

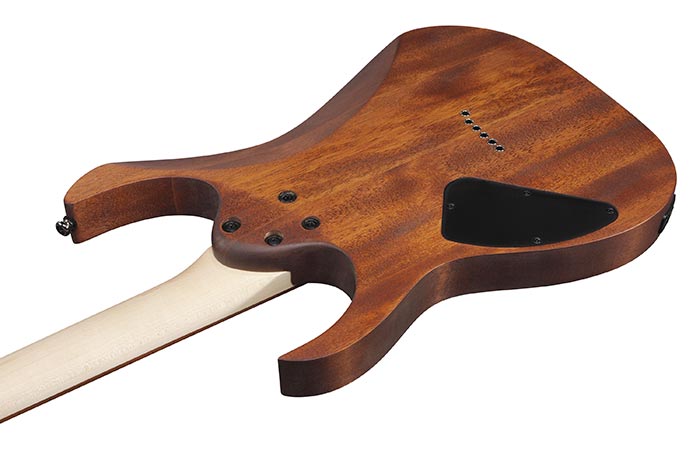

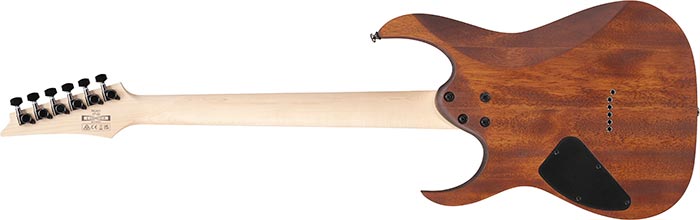

RG421-MOL
  • MOL : Mahogany Oil
  • COLOR VARIATION:
RG

SPEC

  • SPECS

    • neck type
      Wizard IIIMaple neck
    • top/back/body
      Meranti body
    • fretboard
      Jatoba fretboardWhite dot inlay
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      F106 bridge
    • string space
      10.5mm
    • neck pickup
      Quantum (H) neck pickupPassive/Ceramic
    • bridge pickup
      Quantum (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL110
    • string gauge
      .010/.013/.017/.026/.036/.046
    • hardware color
      Cosmo Black
  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        43mm at NUT
      • b : Width
        58mm at 24F
      • c : Thickness
        19mm at 1F
      • d : Thickness
        21mm at 12F
      • Radius :
        400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    RG421's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.

  • CONTROLS

    RG421's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

Features

Mono-unit output jack

Mono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

F106 bridge

F106 bridge

The F106 bridge enriches sustain. String height adjustment can be done easily and independently.

Jatoba Fretboard

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Wizard III Maple neck

Wizard III Maple neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

Quantum pickups

Quantum pickups

The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.
