RG2027RXL

PHOTOS
SPEC
FEATURES
SUPPORT

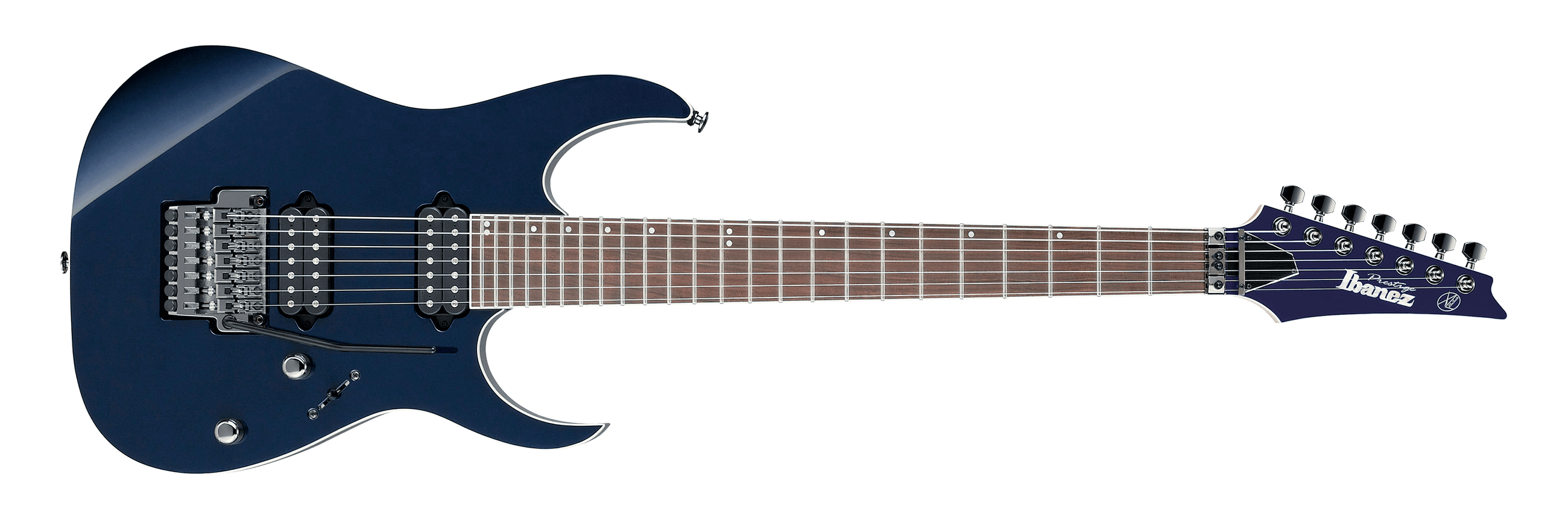

DTB : Dark Tide Blue

COLOR VARIATION：

SPEC

SPECS
- neck type

  Wizard-75pc Maple/Wenge neck
- top/back/body

  Basswood body
- fretboard

  Bound Rosewood fretboardOff-set Mother of Pearl dot inlay
- fret

  Jumbo fretsPrestige fret edge treatment
- number of frets

  24
- bridge

  Lo-Pro Edge 7 bridge
- string space

  10.8mm
- neck pickup

  DiMarzio® Fusion Edge 7 (H) neck pickupPassive/Ceramic
- bridge pickup

  DiMarzio® Fusion Edge 7 (H) bridge pickupPassive/Ceramic
- factory tuning

  1E,2B,3G,4D,5A,6E,7B
- strings

  D'Addario® EXL120-7
- string gauge

  .009/.011/.016/.024/.032/.042/.054
- nut

  Locking nut
- hardware color

  Cosmo black
NECK DIMENSIONS
- - Scale :

    686mm/27"
  - a : Width

    48mm at NUT
  - b : Width

    68mm at 24F
  - c : Thickness

    19mm at 1F
  - d : Thickness

    21mm at 12F
  - Radius :

    430mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
OTHER FEATURES
- Hardshell case included
- Gotoh® machine heads

Features

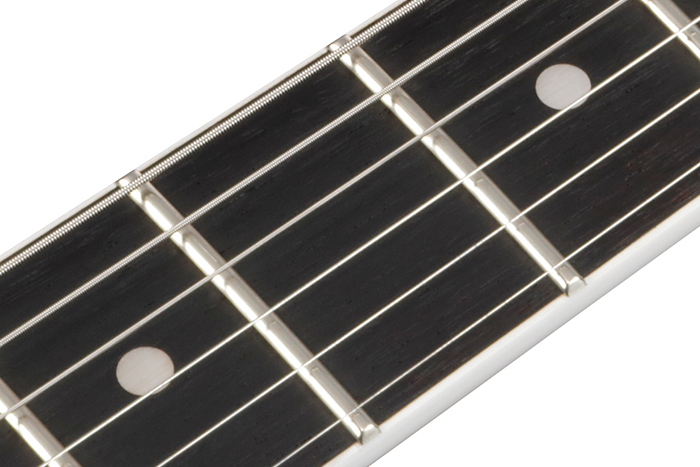

Jumbo frets with Prestige fret edge treatment

The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

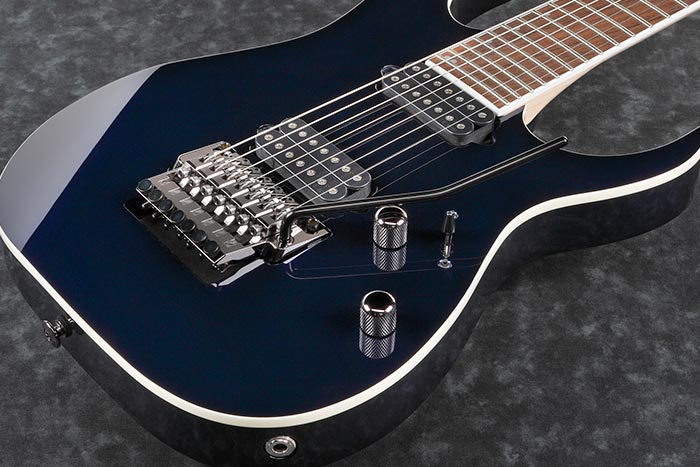

Basswood body

The Basswood body delivers a natural and flat tone.

27 inch scale

Wizard 5pc Maple/Wenge neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Lo-Pro Edge tremolo bridge

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

DiMarzio® Fusion Edge Pickups

Through close collaboration between Ibanez and DiMarzio® Fusion Edge pickups have been engineered to produce a powerful, distinctive tone with a crisp, cutting high end, and a tight, compressed bottom end, minus any muddy mid-range.

Gotoh® machine heads

Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
