PNB14E

PNB14E-OPN
  • OPN : Open Pore Natural
  • COLOR VARIATION：

Back of the PNB14E-OPN's headstock
Back of the PNB14E-OPN's body
Entire top of the PNB14E-OPN
Entire back of the PNB14E-OPN
ACOUSTIC BASS

SPEC

  • SPECS

    • body shape
      Parlor body
    • top
      Okoume top
    • back & sides
      Okoume back & Okoume sides
    • neck
      PNBMaple neck
    • fretboard
      Laurel fretboard
    • bridge
      Laurel bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Black & White multi
    • tuning machine
      Chrome Die-cast tuners
    • number of frets
      18
    • bridge pins
      Black with white dot
    • strings
      D'Addario® XTB3790GS
    • string gauge
      .037/.050/.062/.090
    • string space
      19mm
    • factory tuning
      1G,2D,3A,4E
    • pickup
      Ibanez Undersaddle
    • preamp
      Ibanez AEQ-2T preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        628.7mm/24.8"
      • a : Width
        43mm at NUT
      • b : Width
        55mm at 14F
      • c : Thickness
        21.5mm at 1F
      • d : Thickness
        23mm at 7F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        19 3/8"
      • b : Width
        14"
      • c : Max Depth
        4 1/4"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    PNB14E's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

Features

Ibanez AEQ-2T preamp w/Onboard tuner

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

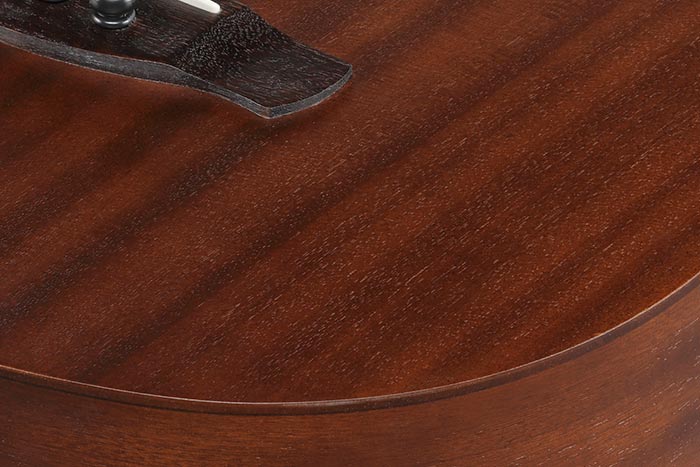

Okoume top

Okoume top

Okoume top delivers a warm, full tone.

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.

Laurel fretboard

Laurel fretboard

The Laurel fretboard provides a rich and warm tone.

Laurel bridge

Laurel bridge

The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Okoume back and sides

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
