NT : Natural

COLOR VARIATION：

ARTIST DETAIL

SPEC

SPECS
- neck type

  PM African Mahoganyset-in neck
- top/back/side

  Maple top Maple backMaple sides
- fretboard

  Bound EbonyAcrylic & Abalone block inlay
- fret

  Medium fretsPrestige fret edge treatment
- number of frets

  22
- bridge

  Gotoh® GE103B bridge
- string space

  10.4mm
- tailpiece

  PM tailpiece
- neck pickup

  Silent 58 (H) neck pickupPassive/Alnico
- factory tuning

  1E, 2B, 3G, 4D, 5A, 6E
- string gauge

  .011/.015/.022w/.030/.040/.050
- nut

  Bone nut
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    628mm/24.7"
  - a : Width

    43mm at NUT
  - b : Width

    57mm at 22F
  - c : Thickness

    21mm at 1F
  - d : Thickness

    23mm at 12F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    20 "
  - b : Width

    16 1/2"
  - c : Max Depth

    4 1/4"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
CONTROLS

DESCRIPTION

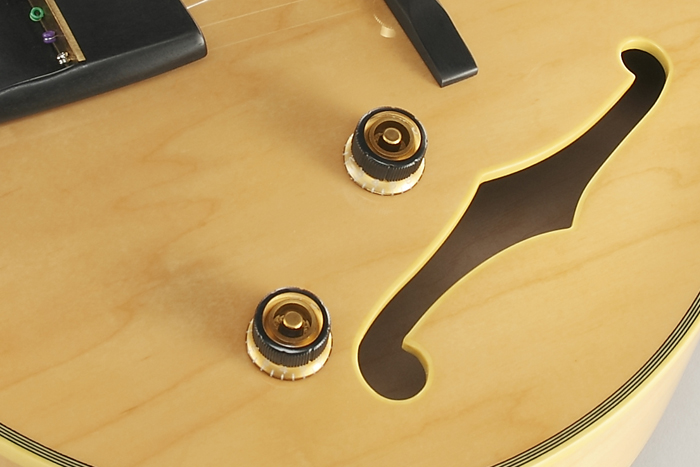

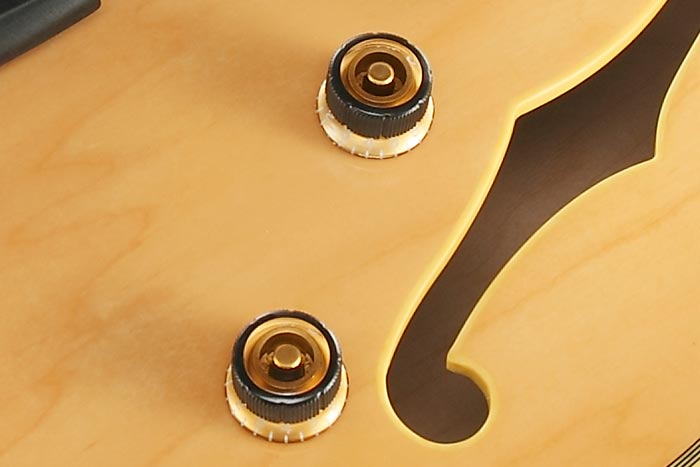

With the guitar held in the playing position, there are two knobs along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the neck is the bridge volume knob. There are two more knobs towards to the center of the guitar near the bridge. The knob closest to the end of the body is the neck tone control, and the knob closer to the neck is the neck volume knob. There are two switches toward the center of the guitar. The switch closest to the end of the body is the tri-sound switch for the neck pickup, and the switch closest to the neck is the three-way pickup selector switch.
OTHER FEATURES
- Hardshell case included
