PIA3761
SPEC
-
SPECS
-
neck typePIA5pc Maple/Walnut neck
-
top/back/bodyAlder body
-
fretboardRosewood fretboardPIA Blossom inlay
-
fretJumbo Stainless Steel fretsPrestige fret edge treatment
-
number of frets24
-
bridgeEdge bridge
-
string space10.8mm
-
neck pickupDiMarzio® UtoPIA™ (H) neck pickupPassive/Ceramic
-
middle pickupDiMarzio® UtoPIA™ (S) middle pickupPassive/Alnico
-
bridge pickupDiMarzio® UtoPIA™ (H) bridge pickupPassive/Ceramic
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL120
-
string gauge.009/.011/.016/.024/.032/.042
-
nutLocking nut
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :648mm/25.5"
-
a : Width43mm at NUT
-
b : Width58mm at 24F
-
c : Thickness18mm at 1F
-
d : Thickness20mm at 12F
-
Radius :430mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is a five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch, and the volume knob also works as a high pass filter switch.
-
OTHER FEATURES
-
Gotoh® machine heads
-
High-pass filter on volume control (push/pull)
-
Luminlay side dots
-
Hardshell case included
-
Ultralite Tremolo Arm™ included
-
Features

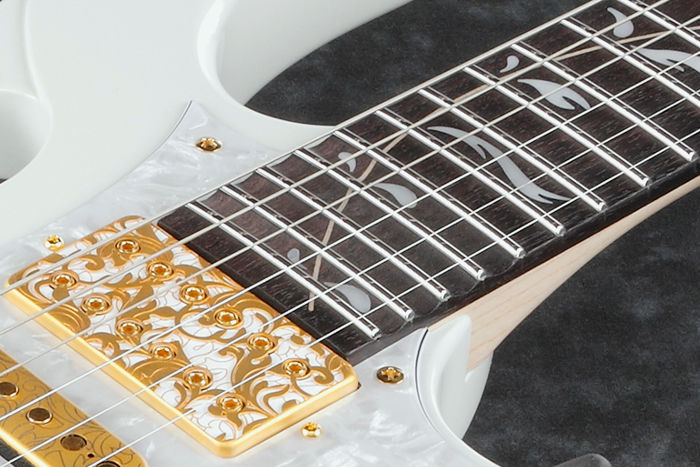

PIA Blossom inlay
The newly designed PIA Blossom inlay is gorgeous, prominent, and elegantly imparts Steve Vai’s trademark style and artistic vision.
Petal Grip
Exclusively designed for the PIA, the new Petal Grip offers a balanced, contemporary design aesthetic. It’s also meant to symbolize unity, companionship, and interpersonal bonds.
DiMarzio® UtoPIA™ pickups
Based on Steve's latest tonal preferences, DiMarzio® UtoPIA™ pickups are voiced for smoother highs, more scooped mids, and more pronounced low-end. The pickups incorporate beautiful aesthetics and design elements meant to complement the cosmetic features of the guitar.

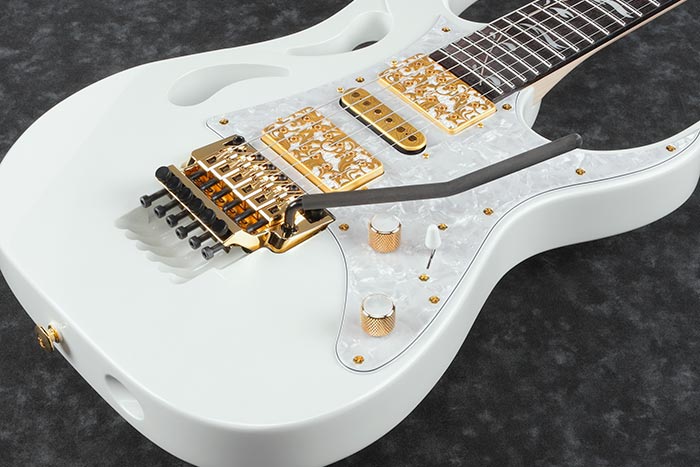

Edge Tremolo
The Edge tremolo bridge and groundbreaking Lion's Claw tremolo cavity allow for rapidly increasing and lowering pitch with dramatic range and an intense voice.
