PF54

PF54-OPN
PF54-OVH
  • OPN : Open Pore Natural
  • OVH : Open Pore Vintage Sunburst Top, Natural Mahogany back and sides
  • COLOR VARIATION：

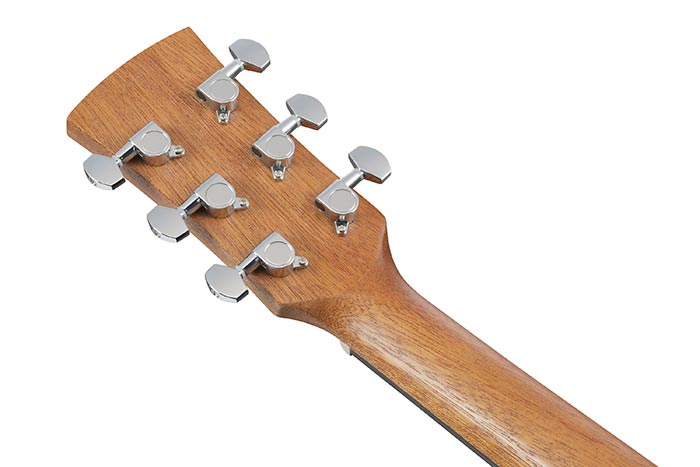

Back of the PF54-OPN's headstock

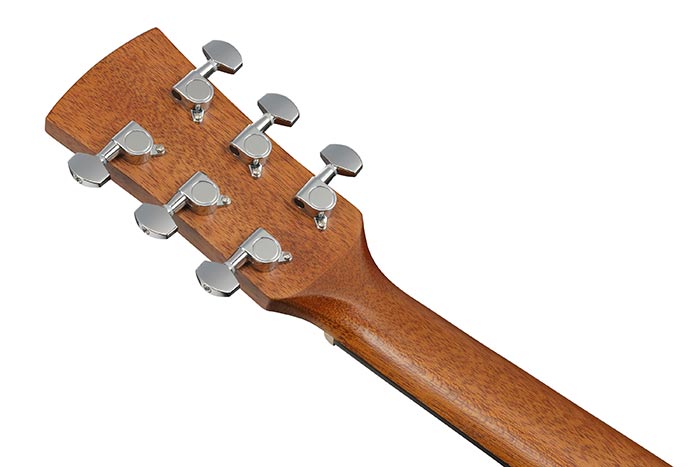

Back of the PF54-OVH's headstock

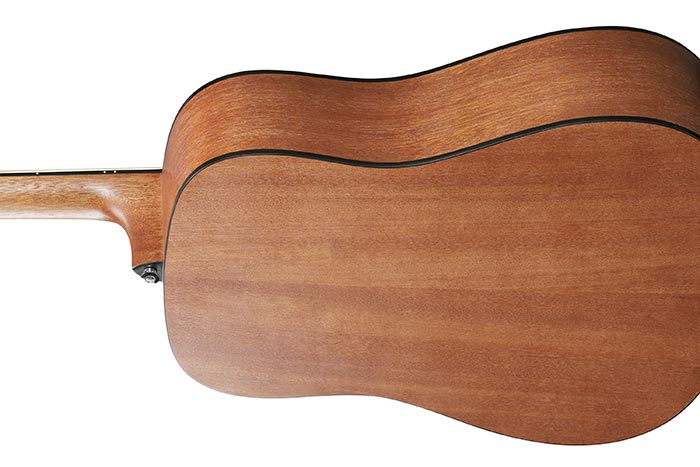

Back of the PF54-OPN's body

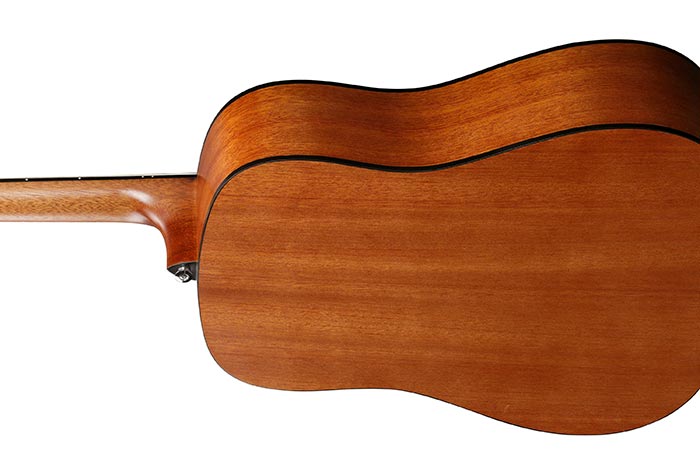

Back of the PF54-OVH's body

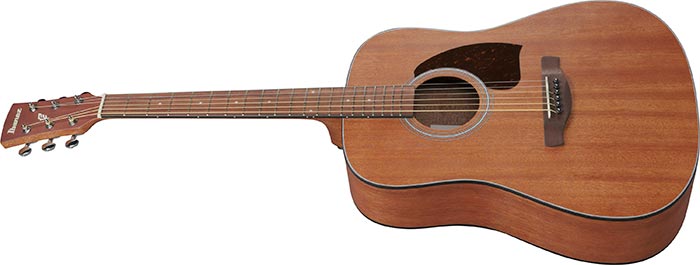

Entire top of the PF54-OPN

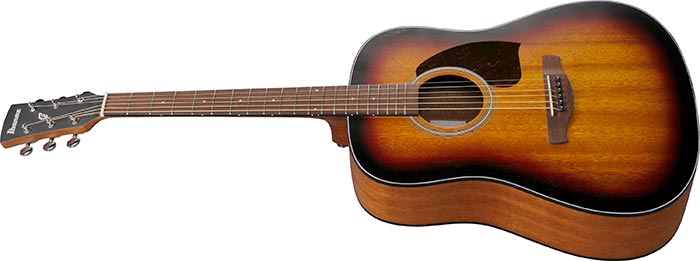

Entire top of the PF54-OVH
Entire back of the PF54-OPN

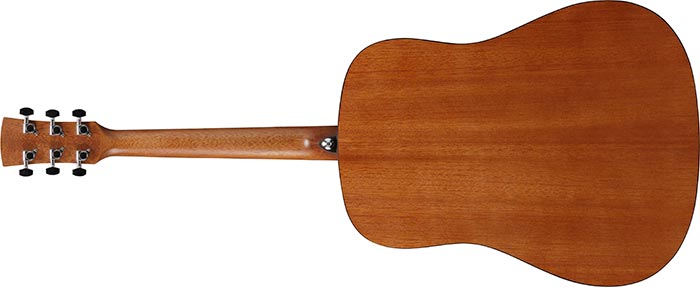

Entire back of the PF54-OVH
PF

SPEC

  • SPECS

    • body shape
      Dreadnought body
    • top
      Meranti top
    • back & sides
      Meranti back & Meranti sides
    • neck
      PFMeranti neck
    • fretboard
      Nandu Wood fretboard
    • bridge
      Nandu Wood bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Water decal
    • tuning machine
      Chrome Die-cast tuners
    • number of frets
      20
    • bridge pins
      Ibanez Advantage™
    • strings
      Ibanez IACS6C
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E

  • NECK DIMENSIONS

      • Scale :
        650mm/25.5"
      • a : Width
        42mm at NUT
      • b : Width
        54mm at 14F
      • c : Thickness
        21mm at 1F
      • d : Thickness
        22mm at 7F
      • Radius :
        250mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        19 3/4"
      • b : Width
        15 7/8"
      • c : Max Depth
        5"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • OTHER FEATURES

Features

Meranti neck

Meranti neck

Nandu Wood fretboard

Nandu Wood fretboard

The Nandu Wood fretboard provides a rich and warm tone.

Meranti top

Meranti top

Meranti top provide a warm and balanced tone.

Meranti back and sides

Meranti back and sides

Meranti back and sides provide a warm and balanced tone.

Nandu Wood bridge

Nandu Wood bridge

The Nandu Wood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez Advantage bridge pins

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
