PF2BE

SPECS

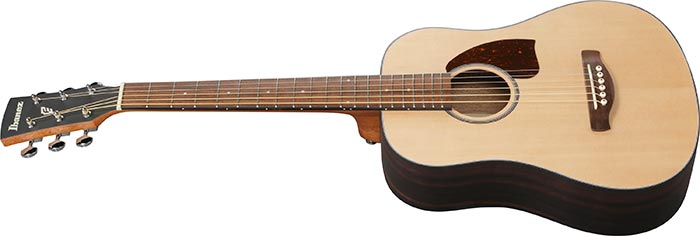

• body shape
  3/4 size Dreadnought body
• top
  Spruce top

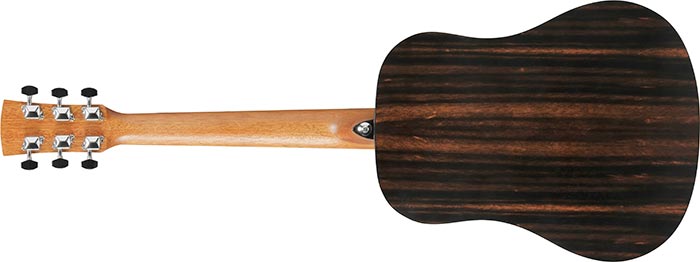

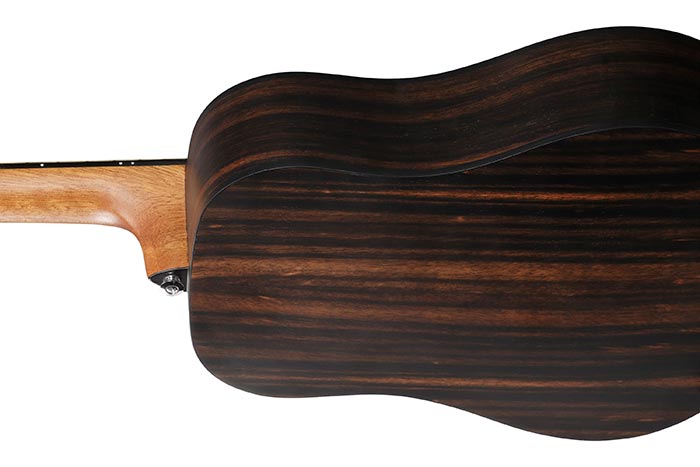

• back & sides
  Macassar Ebony back & Macassar Ebony sides
• neck
  PFMeranti neck
• fretboard
  Nandu Wood fretboard
• bridge
  Nandu Wood bridge
• inlay
  White dot inlay
• soundhole rosette
  Water decal

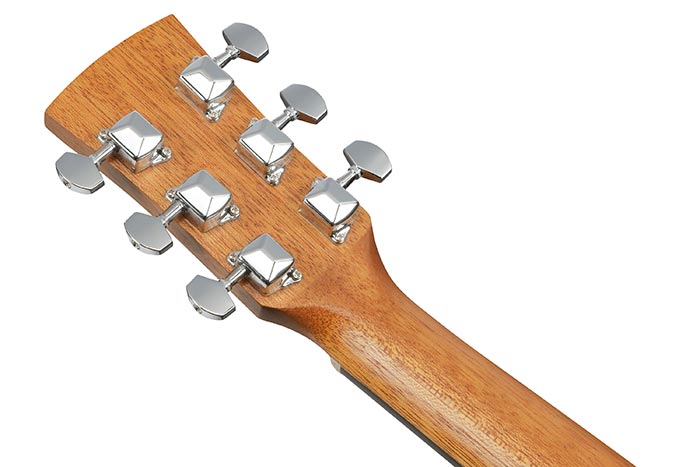

• tuning machine
  Chrome Die-cast tuners
• number of frets
  20
• bridge pins
  Ibanez Advantage™
• strings
  Ibanez IACS6C
• string gauge
  .012/.016/.024/.032/.042/.053
• string space
  11mm
• factory tuning
  1E,2B,3G,4D,5A,6E

NECK DIMENSIONS

• Scale :
  580mm/22.8"
• a : Width
  42mm at NUT
• b : Width
  54mm at 14F
• c : Thickness
  20mm at 1F
• d : Thickness
  21mm at 7F
• Radius :
  250mmR

DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard

BODY DIMENSIONS

• a : Length
  15 5/8"
• b : Width
  12 5/8"
• c : Max Depth
  3 3/4"

DESCRIPTION

Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
