PF1512
SPEC
-
SPECS
-
body shapeDreadnought body
-
topSapele top
-
back & sidesNyatoh back & Nyatoh sides
-
neckPFNyatoh neck
-
fretboardNandu Wood fretboard
-
bridgeNandu Wood bridge
-
inlayWhite dot inlay
-
soundhole rosetteBlack & White multi
-

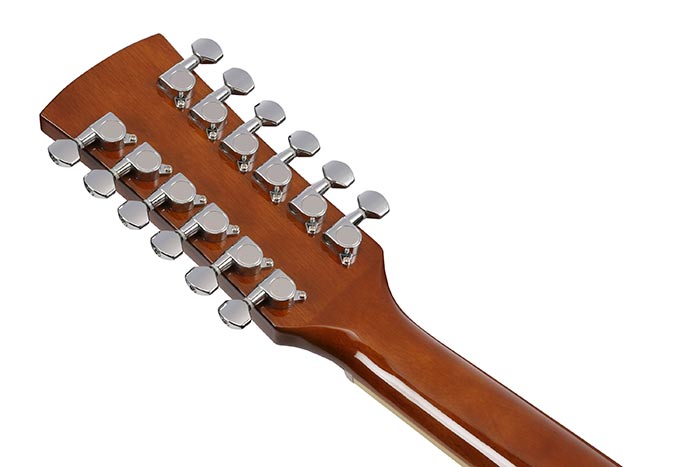

tuning machineChrome Die-cast tuners
-
number of frets20
-
bridge pinsIbanez Advantage™
-
string gauge.010/.010/.014/.014/.023/.008/.030/.012/.039/.018/.047/.027
-
string space11mm
-
factory tuning1E,2B,3G,4D,5A,6E
-
-
NECK DIMENSIONS
-
-
Scale :650mm/25.6"
-
a : Width45mm at NUT
-
b : Width57mm at 14F
-
c : Thickness21.5mm at 1F
-
d : Thickness23.5mm at 7F
-
Radius :380mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length19 3/4"
-
b : Width15 7/8"
-
c : Max Depth5"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
OTHER FEATURES
-
Recommended Case
-
Features

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Nandu Wood fretboard
The Nandu Wood fretboard provides a rich and warm tone.

Nyatoh back and sides
Nyatoh back and sides offer a full-bodied and warm mid-range and bright treble tones.

Nandu Wood bridge
The Nandu Wood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
