PF14JR

SPEC

SPECS
- body shape

  Dreadnought Junior body
- top

  Okoume top
- back & sides

  Okoume back & Okoume sides
- neck

  PFNyatoh neck
- fretboard

  Laurel fretboard
- bridge

  Laurel bridge
- inlay

  White dot inlay
- soundhole rosette

  Acrylic pearl rosette

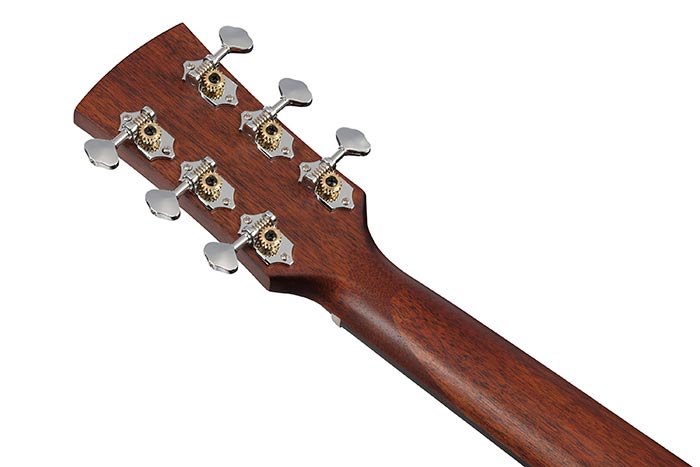

- tuning machine

  Chrome Open Gear tuners(18:1 gear ratio)
- number of frets

  20
- bridge pins

  Ibanez Advantage™
- strings

  Ibanez IACS6C
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
NECK DIMENSIONS
- - Scale :

    609.6mm/24"
  - a : Width

    42mm at NUT
  - b : Width

    54mm at 14F
  - c : Thickness

    21mm at 1F
  - d : Thickness

    22.5mm at 7F
  - Radius :

    240mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    18 1/8"
  - b : Width

    14"
  - c : Max Depth

    4 3/8"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
OTHER FEATURES
- Gig bag included

Features

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Okoume top

Okoume top delivers a warm, full tone.

Laurel fretboard

The Laurel fretboard provides a rich and warm tone.

Laurel bridge

The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.

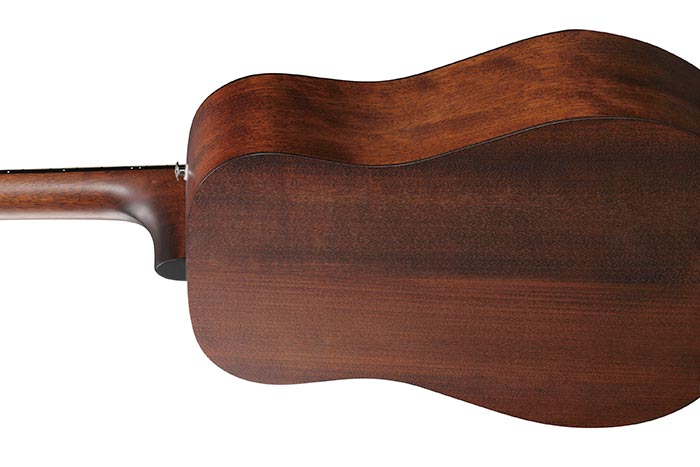

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

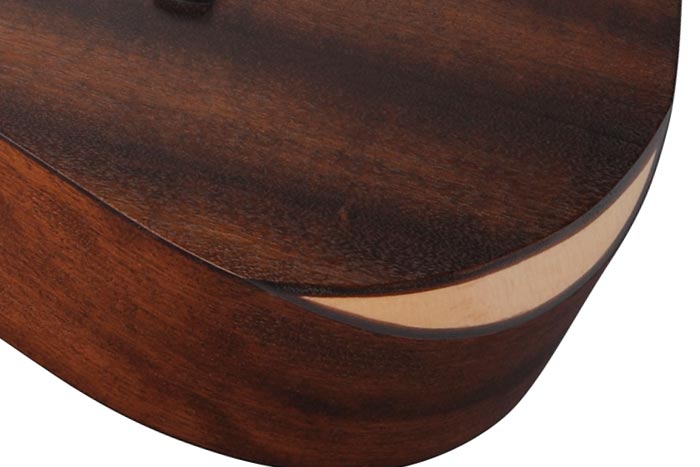

Comfort Forearm Contour

A nicely positioned forearm contour for added comfort while playing.

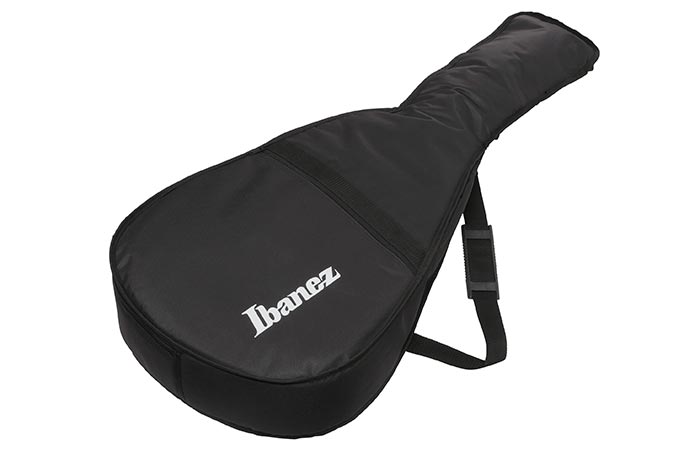

Gig bag included

It comes with Ibanez gig bag which is designed specifically to fit and protect this instrument.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
