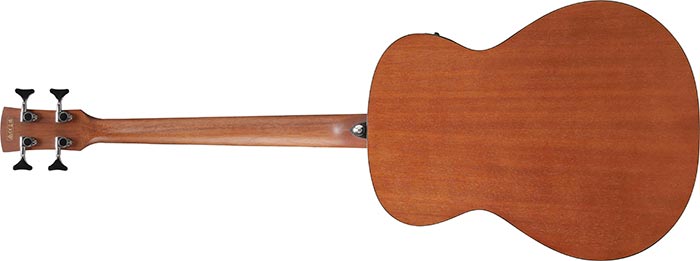

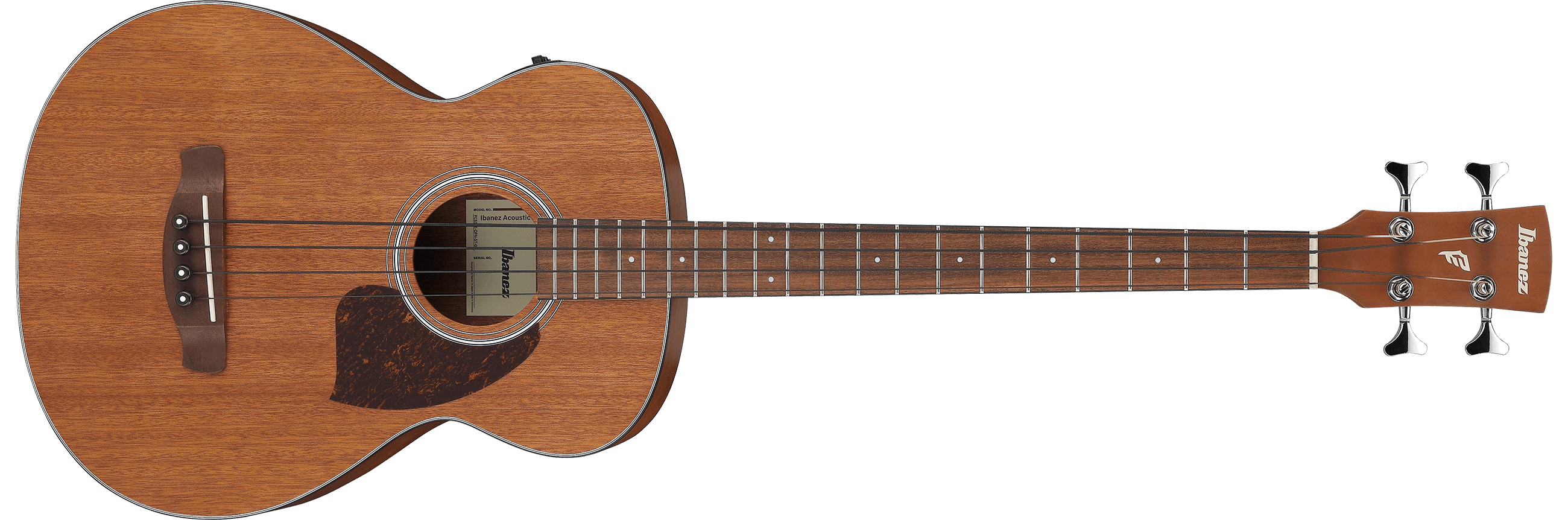

PCB54E

  • PCB54E-OPN
  • OPN : Open Pore Natural
  • COLOR VARIATION：

COLOR VARIATION

SHARE：
ACOUSTIC BASS

SPEC

  • SPECS

    • body shape
      Grand Concert body
    • top
      Meranti top

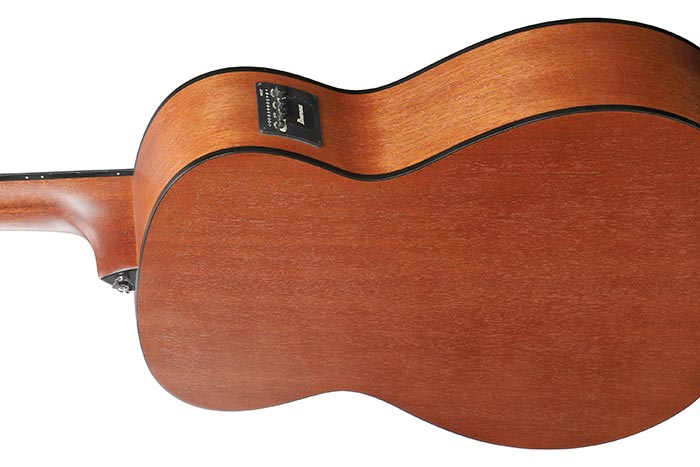

    • back & sides
      Meranti back & Meranti sides
    • neck
      PBCMeranti neck
    • fretboard
      Nandu Wood fretboard
    • bridge
      Nandu Wood bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Water decal

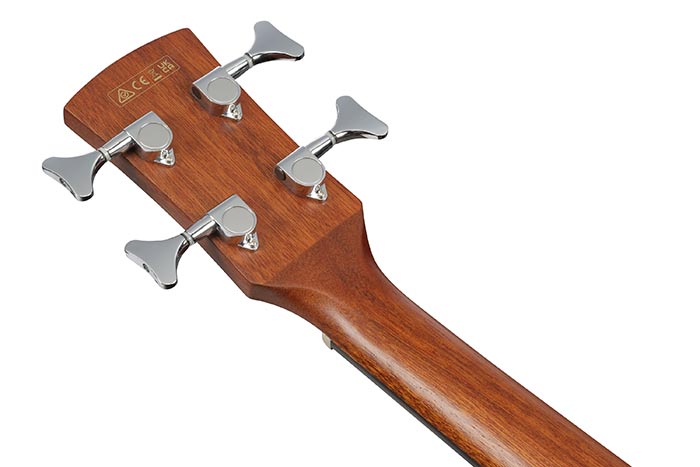

    • tuning machine
      Chrome Die-cast tuners
    • number of frets
      20
    • bridge pins
      Black with white dot
    • strings
      Ibanez IABS4XC32
    • string gauge
      .040/.060/.075/.095
    • string space
      19mm
    • factory tuning
      1G,2D,3A,4E
    • pickup
      Ibanez Undersaddle
    • preamp
      Ibanez AEQ-2T preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

    • Scale :
      812.8mm/32"
    • a : Width
      43mm at NUT
    • b : Width
      58mm at 14F
    • c : Thickness
      21mm at 1F
    • d : Thickness
      23.5mm at 7F
    • Radius :
      400mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the first fret
    c： Thickness of the neck at the first fret
    d: Thickness of the neck at the twelfth fret
    Radius: Radius of the fingerboard

  • BODY DIMENSIONS

    • a : Length
      19 3/8"
    • b : Width
      15 3/8"
    • c : Max Depth
      4 1/4"

    DESCRIPTION

    Guitar Body Diagram
    A: Length of the body
    B: Maximum width of the body
    C: Maximum depth of the body

  • PREAMP

    PCB54E's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

Features

Meranti neck

Nandu Wood fretboard

The Nandu Wood fretboard provides a rich and warm tone.

Meranti top

Meranti top provide a warm and balanced tone.

Meranti back and sides

Meranti back and sides provide a warm and balanced tone.

Nandu Wood bridge

The Nandu Wood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.
