NSL : Natural Satin Top, Natural Low Gloss Back and Sides

COLOR VARIATION：

SPEC

SPECS
- body shape

  Asymmetrical Jumbo body
- bracing

  Modified X-M Bracing
- top

  Solid German Spruce top
- back & sides

  Pau Ferro back & Pau Ferro sides
- neck

  PAAfrican Mahogany/Pau Ferro 5pc neck
- fretboard

  Macassar Ebony fretboard
- bridge

  Macassar Ebony top loading bridge
- body binding

  Flamed Maple body binding with rounded body edge
- top board purfling

  Wooden purfling
- soundhole rosette

  Specially Designed Wooden rosette
- tuning machine

  Chrome Die-cast tuners (18:1 gear ratio)
- nut material

  Unbleached Oil-impregnated Bone
- number of frets

  20
- saddle material

  Unbleached Oil-impregnated Bone saddle
- strings

  D'Addario® XTAPB1356
- string gauge

  .013/.017/.026/.035/.045/.056
- string space

  11.4mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez AP11 Magnetic, T-bar Undersaddle & Contact
- preamp

  Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume
- output jack

  Dual Outputs (Mono Out / Stereo Out)
NECK DIMENSIONS
- - Scale :

    655mm/25.75"
  - a : Width

    45mm at NUT
  - b : Width

    60mm at 14F
  - c : Thickness

    20.5mm at 1F
  - d : Thickness

    22mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    20 7/8"
  - b : Width

    17 "
  - c : Max Depth

    4 7/8"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

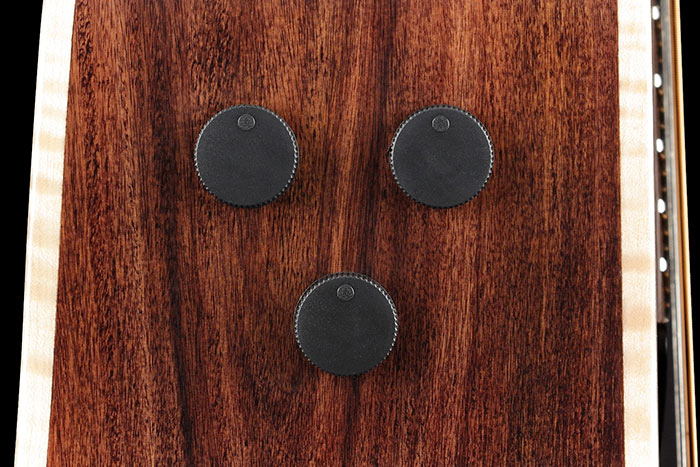

There knob closest to the player is the volume for the magnetic pickup. The knob futhest away from the player is the volume knob for the contact pickup.
OTHER FEATURES
- Recommended Case

  FRS900JA
- Gig bag included

Features

5pc African Mahogany/Pau Ferro neck

The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Macassar Ebony top loading bridge

For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

Asymmetric jumbo body

Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

25 3/4 inch scale

A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

Modified X-M Bracing

With several years spent on research and development, Ibanez ultimately developed the exciting, new X-M bracing design. The carefully designed scalloped X-bracing, features strategically positioned tone and finger braces, which transmit string vibration more efficiently through the bridge to the body, greatly enhancing the quality and projection of the sound. This modified X-M Bracing design creates a highly responsive sound with a wide dynamic range, but it also emphasizes a focused low-end, which perfectly complements modern fingerstyle playing.

Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume

Ibanez Custom Electronics amplify the signal of each pickup naturally throughout the entire tonal spectrum. Blending the sound of the three pickups allows the player to create a variety of tones to suit their particular playing style or genre of music.

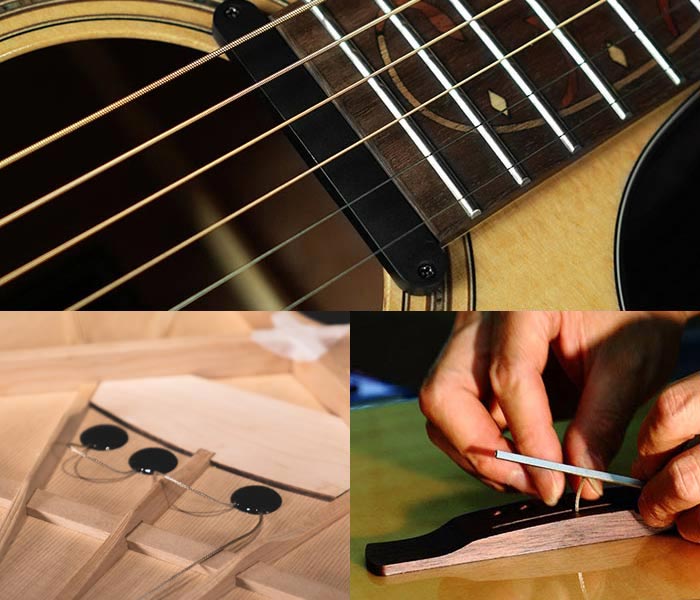

Ibanez AP11 Magnetic / T-bar Undersaddle / Contact pickups

The AP11 pickup is small, lightweight, and positioned so it won't inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar's natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others. The T-bar under-saddle pickup reduces noise and provides wide range of natural piezo-style sound. It also captures palm hits and delivers a bass drum-like response. The Ibanez contact pickup consists of three transducers facilitating organic individual note clarity and naturally reproduces percussive body tapping techniques. This pickup also adds an airy depth of tone and brightness to the amplified sound.

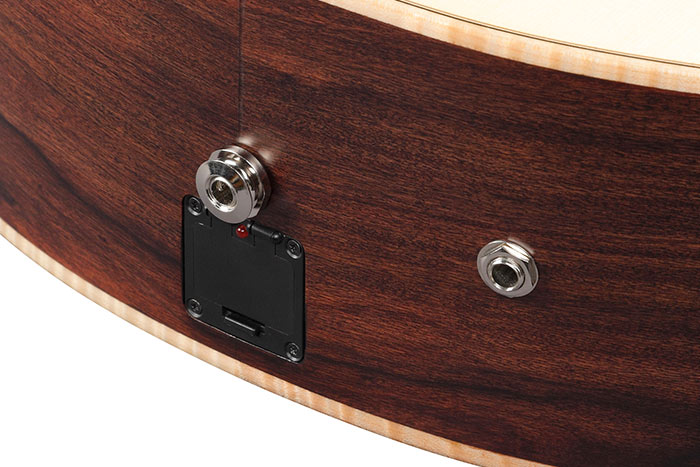

Dual Outputs (Magnetic/Undersaddle/Contact pickup outputs)

Plugged into the endpin jack only: Magnetic pickup + Undersaddle pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack: Endpin Jack = Magnetic pickup output, Open Jack = Undersaddle + Contact pickup with Mixed output

Gig bag included

Ibanez Gig bags are made out of durable materials.
