NSL : Natural Satin Top, Natural Low Gloss Back and Sides

COLOR VARIATION：

SPEC

SPECS
- body shape

  Asymmetrical Jumbo body
- bracing

  Modified X-M Bracing
- top

  Solid Cedar top
- back & sides

  Okoume back & Okoume sides
- neck

  PAAfrican Mahogany/Pau Ferro 5pc neck
- fretboard

  Macassar Ebony fretboard
- bridge

  Macassar Ebony top loading bridge
- top board purfling

  Wooden purfling
- soundhole rosette

  Specially designed Wooden
- tuning machine

  Chrome Die-cast tuners (18:1 gear ratio)
- nut material

  Unbleached Oil-impregnated Bone
- number of frets

  20
- saddle material

  Unbleached Oil-impregnated Bone
- strings

  D'Addario® XTAPB1356
- string gauge

  .013/.017/.026/.035/.045/.056
- string space

  11.7mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez AP11 Magnetic & Contact
- preamp

  Ibanez Custom Electronics w/Magnetic Pickup Volume and Contact Pickup Volume
- output jack

  Dual Outputs (Mono Out / Stereo Out)
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    655mm/25.75"
  - a : Width

    45mm at NUT
  - b : Width

    60mm at 14F
  - c : Thickness

    20.5mm at 1F
  - d : Thickness

    22mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    20 3/8"
  - b : Width

    17"
  - c : Max Depth

    4 7/8"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body

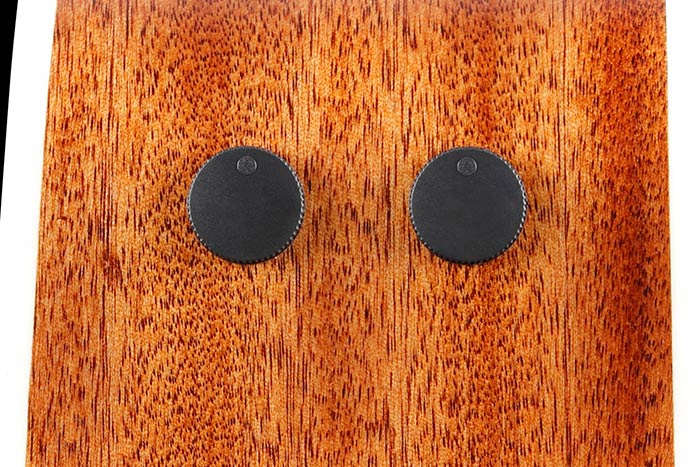

PREAMP

DESCRIPTION

There knob closest to the player is the volume for the magnetic pickup. The knob futhest away from the player is the volume knob for the contact pickup.
OTHER FEATURES
- Recommended Case

  FRS900JA
- Gig bag included
- Jumbo frets

Features

5pc African Mahogany/Pau Ferro neck

The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

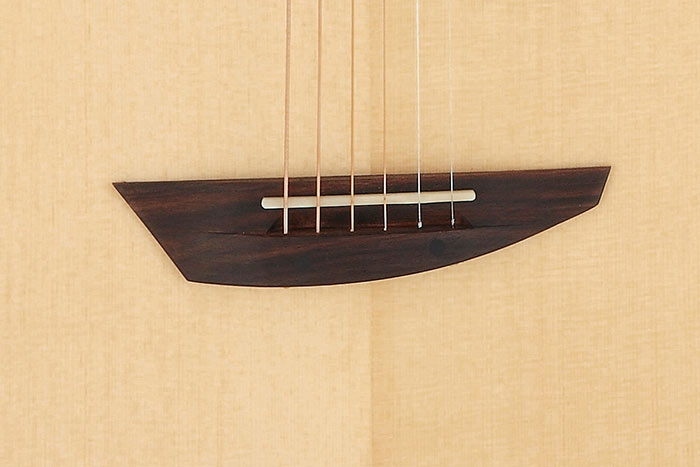

Macassar Ebony top loading bridge

For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

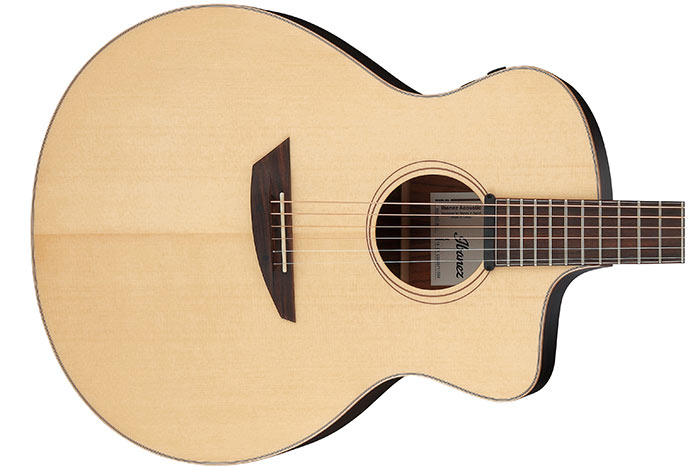

Asymmetric jumbo body

Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

25 3/4 inch scale

A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

Modified X-M Bracing

With several years spent on research and development, Ibanez ultimately developed the exciting, new X-M bracing design. The carefully designed scalloped X-bracing, features strategically positioned tone and finger braces, which transmit string vibration more efficiently through the bridge to the body, greatly enhancing the quality and projection of the sound. This modified X-M Bracing design creates a highly responsive sound with a wide dynamic range, but it also emphasizes a focused low-end, which perfectly complements modern fingerstyle playing.

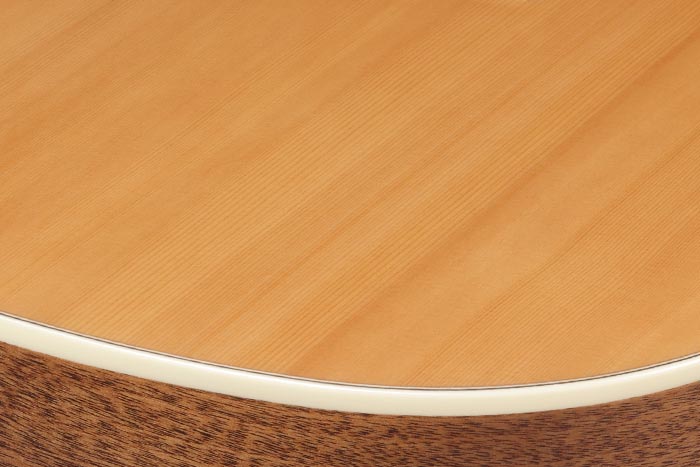

Solid Cedar top

Solid Cedar top offers a full-bodied, well-rounded and bigger-than-expected sonic response. *Cedar ranges in color from lighter to darker.

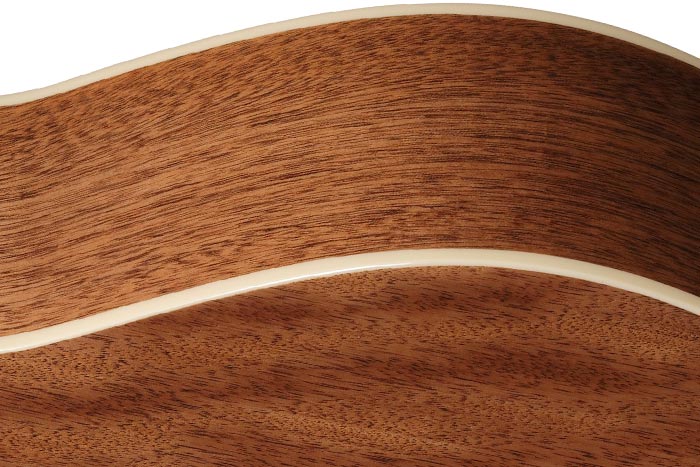

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez AP11 Magnetic / Contact pickups

The AP11 pickup is small, lightweight and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus and many others. The Contact pickup consists of three transducers facilitating organic individual note clarity and naturally reproduces percussive body tapping techniques. This pickup also adds an airy depth of tone and brightness to the amplified sound.

Ibanez Custom Electronics w/Magnetic Pickup Volume and Contact Pickup Volume

Blending the Contact pickup with the Magnetic pickup provides more natural acoustic tone. This pickup combination enhances the depth of the sound and the tonal brightness. It especially excels for solo fingerstyle players or in a small acoustic ensemble.

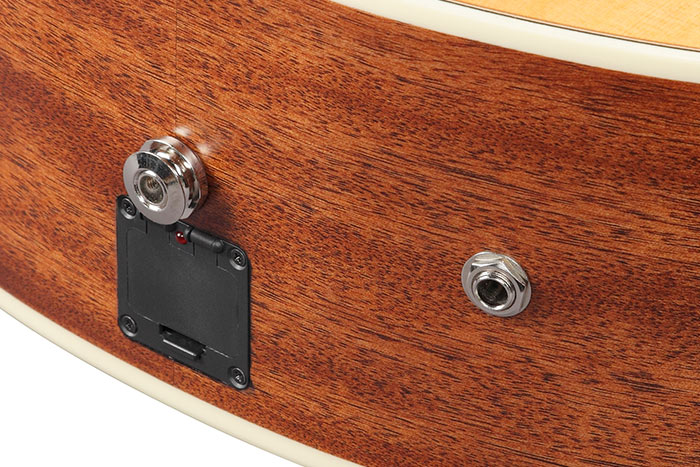

Dual Outputs (Magnetic/Contact pickup outputs)

Plugged into the endpin jack only: Magnetic pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack: Endpin Jack = Magnetic pickup, Open Jack = Contact Pickup

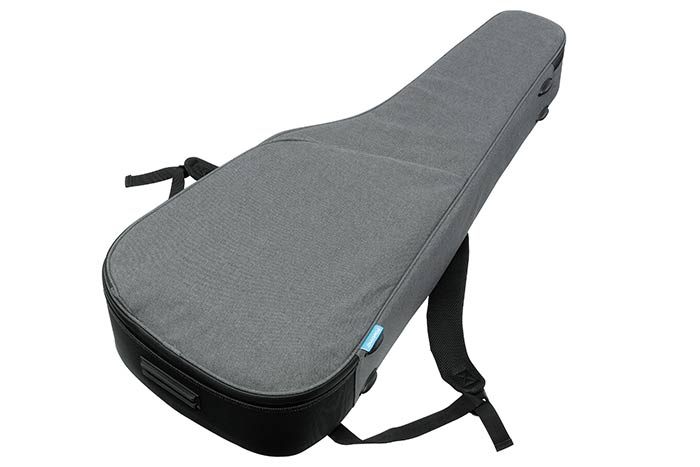

Gig bag included

Ibanez Gig bags are made out of durable materials.
