M8M

SPEC

SPECS
- neck type

  M8M5pc Maple/JatobaNeck-through
- top/back/body

  Alder wing body
- fretboard

  Rosewood fretboard
- fret

  Jumbo fretsPrestige fret edge treatment
- number of frets

  24
- bridge

  FX Edge III-8 bridge
- string space

  10.8mm
- bridge pickup

  Lundgren Model M8 (H) bridge pickup
- factory tuning

  1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F
- strings

  DR TITE-FIT™
- string gauge

  .009/.011/.016/.026/.036/.046/.052/.070
- nut

  Locking nut
- hardware color

  Black
NECK DIMENSIONS
- - Scale :

    747mm/29.4"
  - a : Width

    55mm at NUT
  - b : Width

    80mm at 24F
  - c : Thickness

    19.5mm at 1F
  - d : Thickness

    21.5mm at 12F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
CONTROLS

DESCRIPTION

With the guitar held in the playing position, the knob closest to the end of the body is the tone knob. The knob closest to the neck is the volume knob.
OTHER FEATURES
- Hardshell case included
- Hipshot machine heads

Features

5pc Maple/Jatoba neck

The 5pc Maple/Jatoba Neck with excellent strength provides an enriched resonance.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Alder wing body

The Alder wing body delivers a well-balanced bright tone, enriched resonance and sustain.

Lundgren Model M8 pickup

Lundgren Model M8 pickups deliver a well-defined tone even playing with extremely high gain settings.

Hipshot machine heads

Hipshot machine heads offer incredible tuning stability.

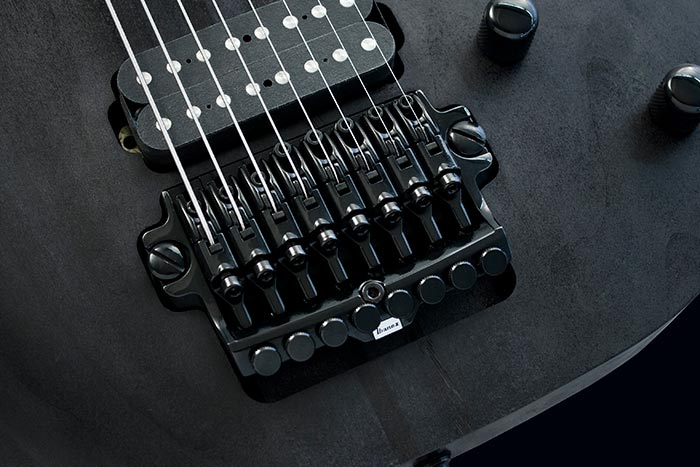

FX Edge III-8 bridge

The FX Edge III-8 bridge combines fixed bridge sustain and double-locking tuning stability and was made specifically to handle and augment the awesome extended range of the 8-string models.

Neck-through construction

The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.
