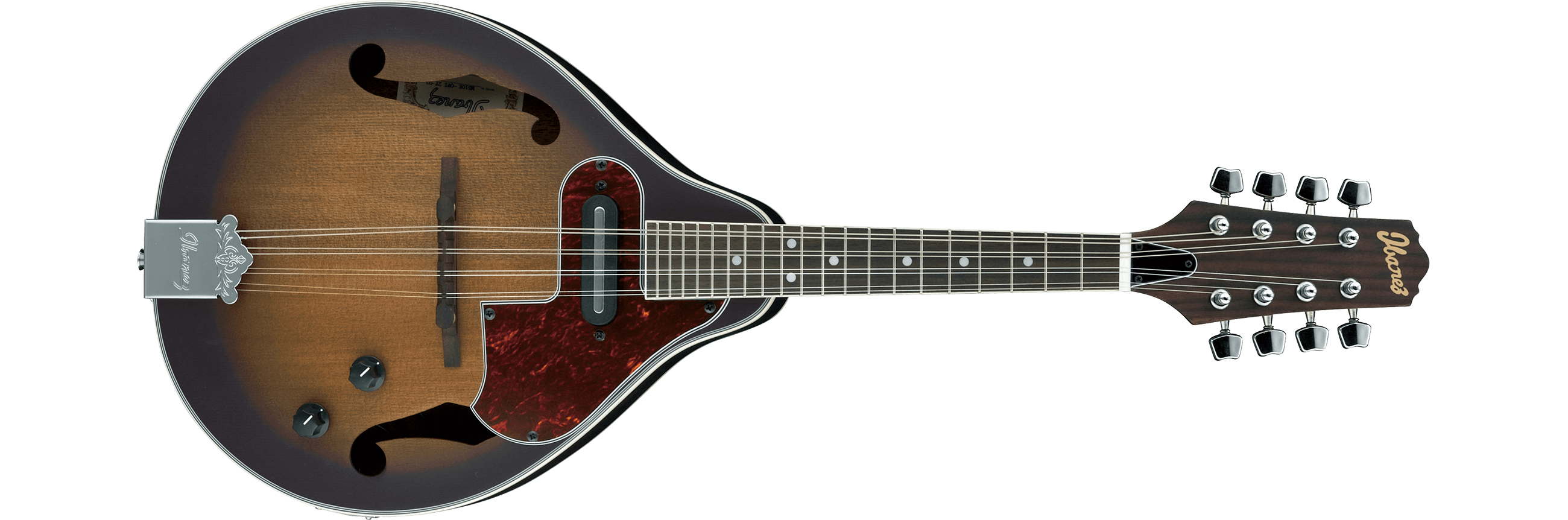

M510E

SPECS

• body shape
  A-style body
• top
  Spruce top
• back & sides
  Sapele back & Sapele sides
• neck
  MOkoume neck
• fretboard
  Purpleheart fretboard
• bridge
  Purpleheart bridge
• inlay
  White dot inlay
• tuning machine
  Chrome Mandolin tuners
• number of frets
  20
• saddle material
  Purpleheart
• string gauge
  .010/.014/.024/.034
• string space
  10mm
• factory tuning
  1E,2A,3D,4G
• pickup
  Magnetic single
• output jack
  1/4" output

NECK DIMENSIONS

• Scale :
  350mm/13.8"
• a : Width
  30mm at NUT
• b : Width
  40mm at 14F
• c : Thickness
  22mm at 1F
• d : Thickness
  24.5mm at 7F
• Radius :
  Flat

DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard

BODY DIMENSIONS

• a : Length
  13 5/8"
• b : Width
  10 7/8"
• c : Max Depth
  2 "

DESCRIPTION

Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
