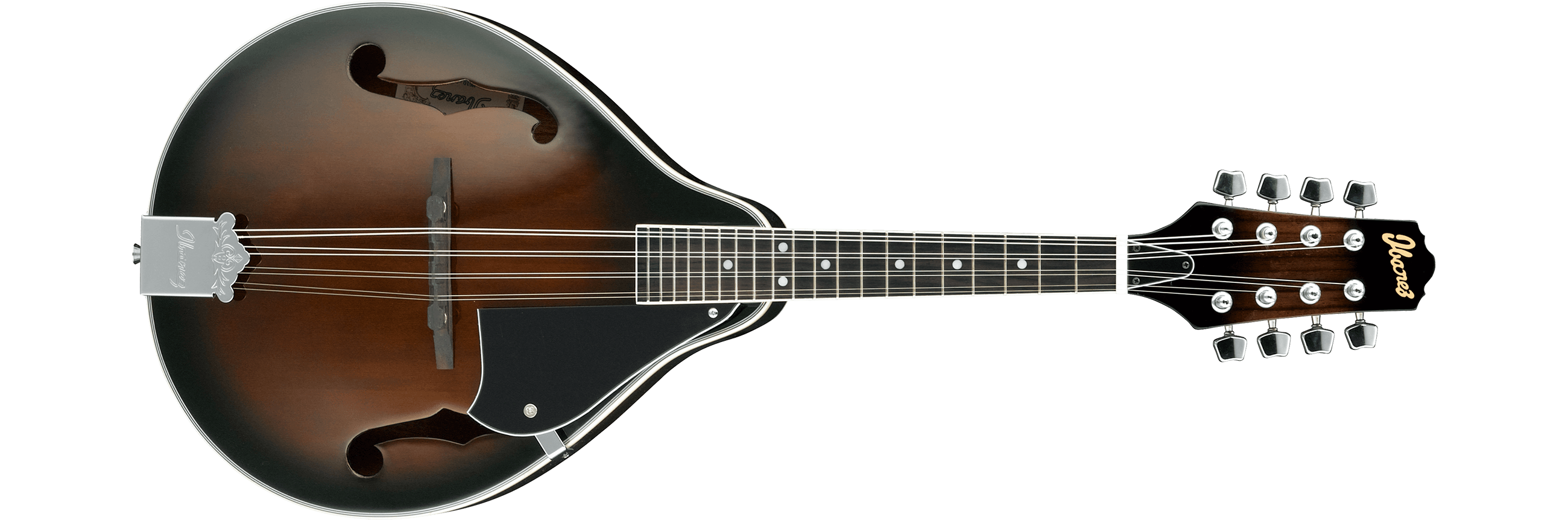

M510

PHOTOS
SPEC
SUPPORT

BS : Brown Sunburst High Gloss
DVS : Dark Violin Sunburst High Gloss
OVS : Open Pore Vintage Sunburst

COLOR VARIATION：

MANDOLINS

SPEC

SPECS
- body shape

  A-style body
- top

  Spruce top
- back & sides

  Sapele back & Sapele sides
- neck

  MOkoume neck
- fretboard

  Purpleheart fretboard
- bridge

  Purpleheart bridge
- inlay

  White dot inlay
- tuning machine

  Chrome Mandolin tuners
- number of frets

  20
- saddle material

  Purpleheart
- string gauge

  .010/.014/.024/.034
- string space

  10mm
- factory tuning

  1E,2A,3D,4G
NECK DIMENSIONS
- - Scale :

    350mm/13.8"
  - a : Width

    30mm at NUT
  - b : Width

    40mm at 14F
  - c : Thickness

    22mm at 1F
  - d : Thickness

    24.5mm at 7F
  - Radius :

    Flat
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    13 5/8"
  - b : Width

    10 7/8"
  - c : Max Depth

    2 "
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
