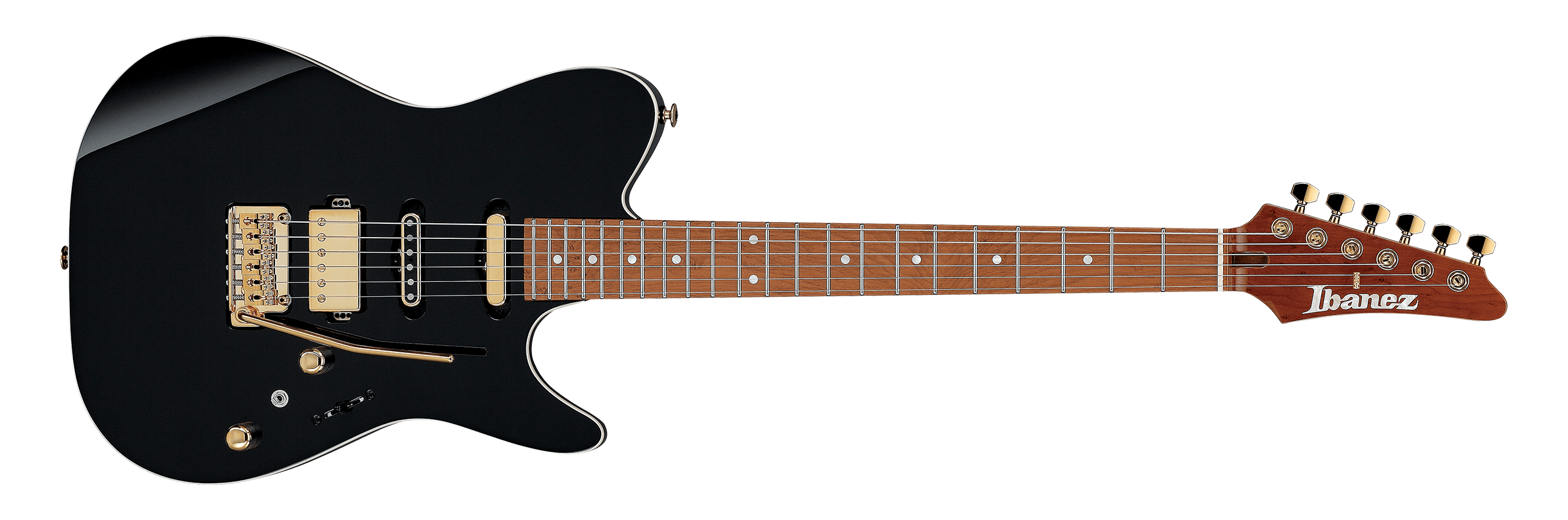

LB1
SPEC
-
SPECS
-
neck typeAZ Oval CS-TECH WOOD 1pc Roasted Birdseye Maple neck
-
top/back/bodyAsh body
-
fretboardS-TECH WOOD Roasted Birdseye Maple fretboardMother of Pearl dot inlay
-
fretJumbo Stainless Steel fretsPrestige fret edge treatment
-
number of frets22
-
bridgeGotoh® T1702B bridge
-
string space10.5mm
-
neck pickupSeymour Duncan® Lari Basilio (S) neck pickupPassive/Alnico
-
middle pickupSeymour Duncan® Lari Basilio (S) middle pickupPassive/Alnico
-
bridge pickupSeymour Duncan® Lari Basilio (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL110
-
string gauge.010/.013/.017/.026/.036/.046
-
nutBone nut
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :648mm/25.5"
-
a : Width42mm at NUT
-
b : Width56.4mm at 22F
-
c : Thickness20.5mm at 1F
-
d : Thickness22.5mm at 12F
-
Radius :228 to 305 COMPOUNDmmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, two hum tap mode is on. When the alter switch is in bridge position, two hum tap mode is off. Two hum tap mode means the neck and middle pickups are wired in series and functioning as a humbucker. When two hum tap mode is off and the pickup selector switch is in neck position, neck pickup is selected. When the switch is in between neck and center position, neck and center pickups are selected. When the switch is in center position, center position is selected. When the switch is in between center and bridge position, center pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected. When two hum tap mode is on and the pickup selector switch is in neck position, the neck and center pickups are selected and they are in series. When the switch is in between neck and center position the neck pickup and bridge side of the bridge pickup are selected. When the switch is in center position, neck, center, and bridge pickups are selected; the neck and center pickups are in series mode. When the switch is in between center and bridge position, the neck side of the bridge pickup is selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
-
OTHER FEATURES
-
Gotoh® Magnum Lock machine heads w/H.A.P.
-
dyna-MIX9 switching system w/Alter Switch
-
Luminlay side dots
-
Fretboard Radius: 228mm@nut to 305mm@22nd fret Compound
-
Hardshell case included
-
Features
Oval C S-TECH WOOD Roasted Birdseye Maple neck
The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.
Gotoh® Magnum Lock w/H.A.P. machine heads
GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.
S-TECH WOOD Roasted Birdseye Maple fretboard
The S-TECH special roasted treatment provides a superior attack, a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.
Compound Radius Fretboard (228mm to 305mm)
Offering the best of both worlds, the digitized compound radius fretboard is built to enhance both smooth chording and lead work in the upper register.
Seymour Duncan® Lari Basilio S-S-H pickups
Lari’s signature set of pickups by Seymour Duncan feature 3 pickups that are each unique to each other, but also combine to make the perfect combo. The neck pickup is a mix of Alnico 5 and Alnico 4 magnets that combine for vintage tone with a lot of body and presence, while the middle pickup is a special mix of Alnico 5 and Alnico 2 magnets to help create more tonal options, as well as very unique look. Lari’s bridge position humbucker features Alnico 5 magnets and is voiced to be versatile and well balanced, focusing on attack and clarity over a wide range of tones from clean to high gain. For the type of player that Lari strives to be, having a versatile tone is essential, and these pickups always deliver.
Gotoh® T1702B tremolo
The T1702B tremolo bridge provides quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm. The tremolo block and saddles are made of brass, facilitating better overall resonance.
dyna-MIX9 switching system with Alter Switch
The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.
Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
