SPECS

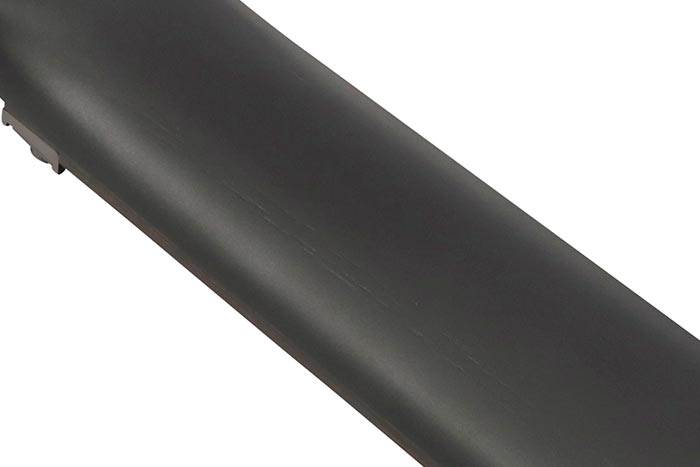

- neck type

  Wizard II-75pc Maple/Walnut neck
- top/back/body

  Nyatoh body

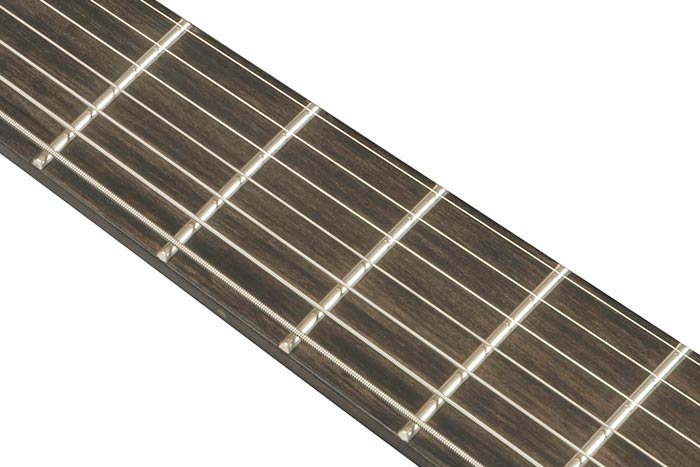

- fretboard

  Ebony fretboardK-7 special inlay
- fret

  Jumbo frets
- number of frets

  24

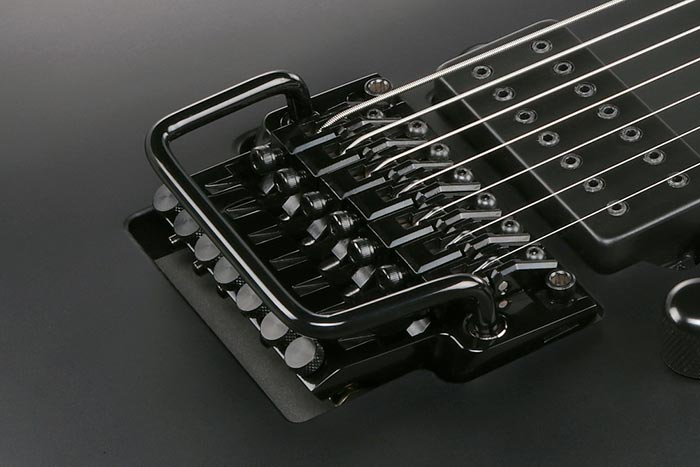

- bridge

  Lo-Pro Edge7 bridge w/U-bar
- string space

  10.8mm

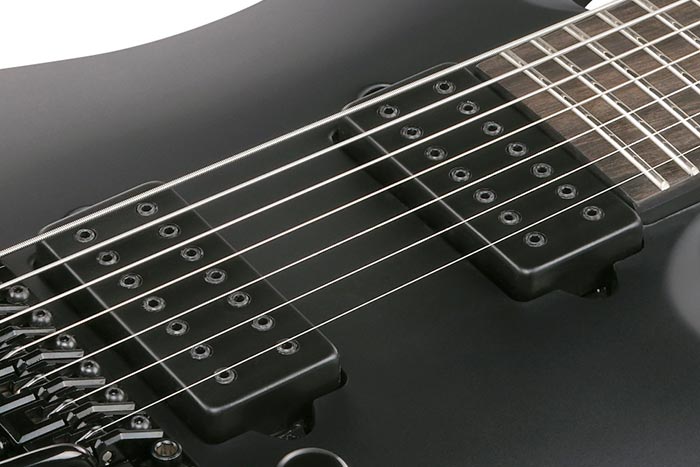

- neck pickup

  DiMarzio® Blaze™ (H) neck pickupPassive/Ceramic
- bridge pickup

  DiMarzio® Blaze™ (H) bridge pickupPassive/Ceramic
- factory tuning

  1D,2A,3F,4C,5G,6D,7A
- strings

  D'Addario® EXL110-7
- string gauge

  .010/.013/.017/.026/.036/.046/.059
- nut

  Locking nut
- hardware color

  Black
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    48mm at NUT
  - b : Width

    68mm at 24F
  - c : Thickness

    19mm at 1F
  - d : Thickness

    21mm at 12F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the three-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
OTHER FEATURES
- Recommended Case

  M300C
- Available in Summer
- Gotoh® machine heads
- Luminescent side dot inlay
