COLOR VARIATION：

ARTIST DETAIL

SPEC

SPECS
- neck type

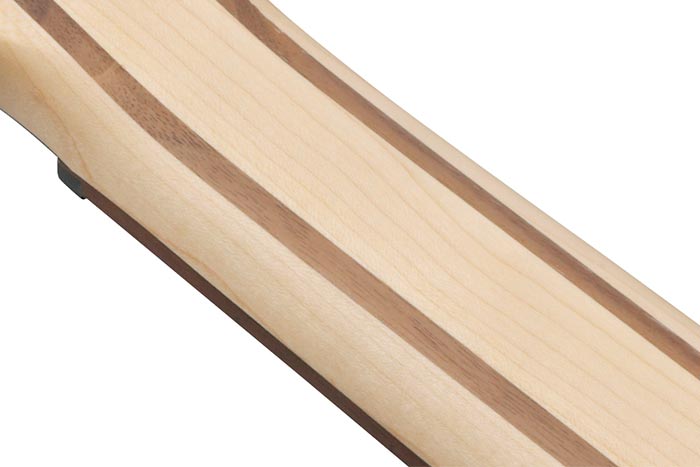

  Wizard II-75pc Maple/Walnut neck
- top/back/body

  Maple topNyatoh body
- fretboard

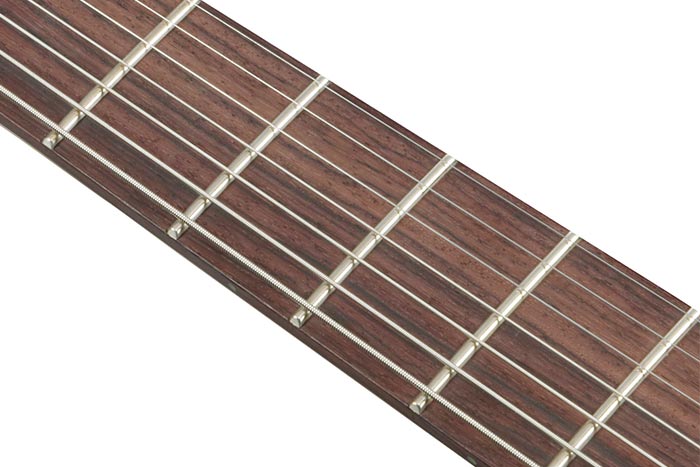

  Rosewood fretboardK-7 special inlay
- fret

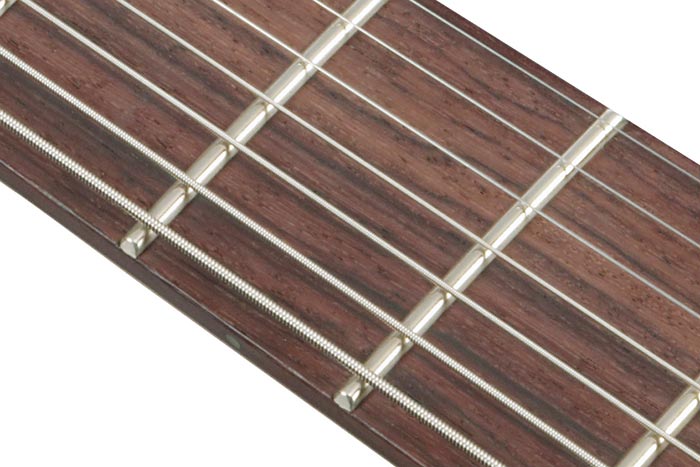

  Jumbo frets
- number of frets

  24
- bridge

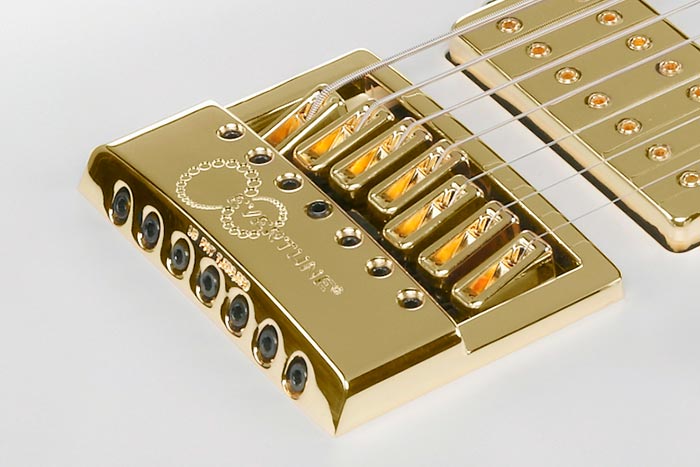

  Evertune® bridge
- string space

  10.3mm
- neck pickup

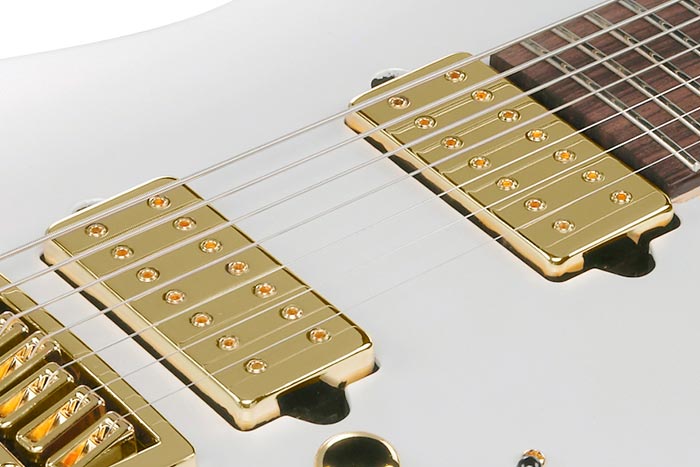

  DiMarzio® Blaze™ (H) neck pickupPassive/Ceramic
- bridge pickup

  DiMarzio® Blaze™ (H) bridge pickupPassive/Ceramic
- factory tuning

  1D,2A,3F,4C,5G,6D,7A
- strings

  D'Addario® EXL110-7
- string gauge

  .010/.013/.017/.026/.036/.046/.059
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    48mm at NUT
  - b : Width

    68mm at 24F
  - c : Thickness

    19mm at 1F
  - d : Thickness

    21mm at 12F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

When holding the guitar in playing position, there is a three-way pickup selector switch near the knee cutout of the guitar. The knob right above the pickup selector switch is the volume knob.
OTHER FEATURES
- Recommended Case

  M300C
- Available in Summer

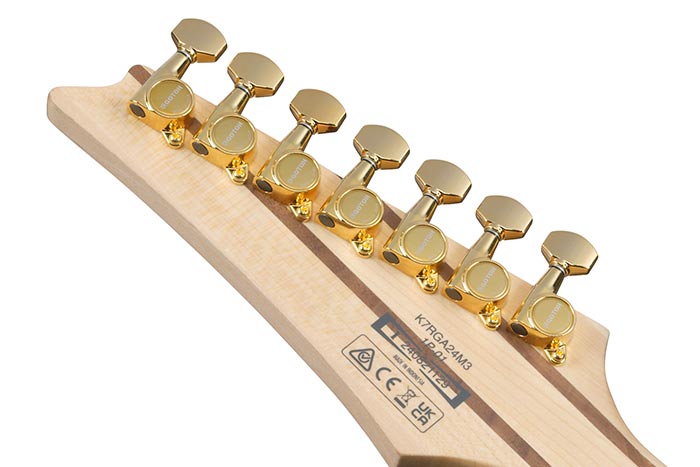

- Gotoh® machine heads
- Luminescent side dot inlay
