JSM10EM
SPEC
-
SPECS
-
neck typeJSMNyatohset-in neck
-
top/back/sideFlamed Maple top Linden backLinden sides
-
fretboardBound Rosewood fretboardAcrylic block inlay
-
fretMedium frets
-
number of frets22
-
bridgeGibraltar Performer bridge
-
string space10.5mm
-
tailpieceQuik Change III tailpiece
-
neck pickupSuper 58 (H) neck pickupPassive/Alnico
-
bridge pickupSuper 58 (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL140
-
string gauge.010/.013/.017/.030/.042/.052
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :628mm
-
a : Width43mm at NUT
-
b : Width57mm at 22F
-
c : Thickness21mm at 1F
-
d : Thickness24mm at 9F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length19 1/4"
-
b : Width15 3/4"
-
c : Max Depth2 5/8"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If the neck Tri-sound switch is in neck position, the neck pickup is in parallel mode. If the switch is in center position, the neck side of the neck pickup is selected. If the switch is in bridge position, the neck pickup is in series mode.
-

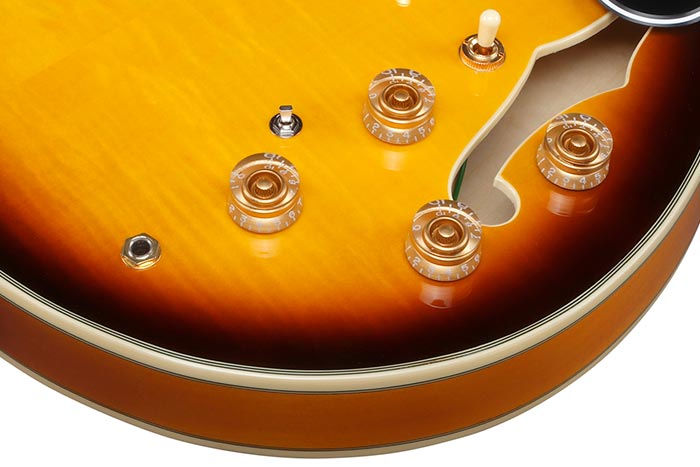

CONTROLS
DESCRIPTION
With the guitar held in the playing position, the knob closest to the end of the body is the tone knob. The knob closest to the neck is the volume knob.
-
OTHER FEATURES
-
Recommended Case
-
Tri-sound switch
-
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium frets
Medium sized frets enhance the accuracy of your notes.
Flamed Maple / Linden back and sides
The Flamed Maple top with a beautiful woodgrain. The Linden delivers a natural and flat yet accurate tone.
Super 58 pickups
Super 58 pickups feature moderate output and vintage tone.
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The lowpositioned saddles promise comfortable playability.
Quik Change III tailpiece
The Quik Change III tailpiece enables faster and easier string changing.
Tri-sound switch
The Tri-sound switch gives a humbucker pickup three different sounds, expanding the versatility of your guitar.
