JIVA10R

  • JIVA10R-TRC
  • TRC : Torch Red
  • COLOR VARIATION：

COLOR VARIATION

ARTIST DETAIL
JIVA

SPEC

  • SPECS

    • neck type
      JIVA3pc Maple/Purpleheart neck
    • top/back/body
      Quilted Maple topAfrican Mahogany body
    • fretboard
      Ebony fretboardBeaten Path inlay
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      Edge-Zero II bridge
    • string space
      10.8mm
    • neck pickup
      DiMarzio® Pandemonium™ (H) neck pickupPassive/Ceramic
    • middle pickup
      DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
    • bridge pickup
      DiMarzio® Pandemonium™ (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL120
    • string gauge
      .009/.011/.016/.024/.032/.042
    • nut
      Locking nut
    • hardware color
      Cosmo Black

  • NECK DIMENSIONS

    • Scale :
      648mm/25.5"
    • a : Width
      43mm at NUT
    • b : Width
      58mm at 24F
    • c : Thickness
      19mm at 1F
    • d : Thickness
      21mm at 12F
    • Radius :
      400mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JIVA10R's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

  • CONTROLS

    JIVA10R's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Recommended Case
      M300C M300C
    • Luminescent side dot inlay

Features

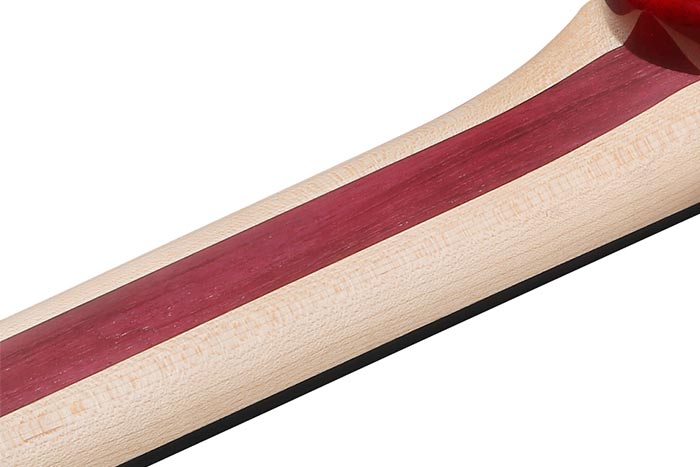

3pc Maple/Purpleheart neck

The Purpleheart stripe provides stability and longer sustain.

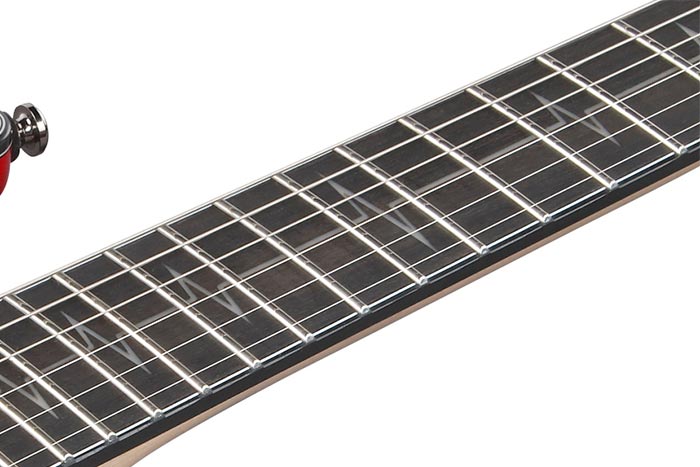

Ebony fretboard

Ebony produces a tight low and mid range with an iconic attack on the high end. It also features a quick response and rich sustain.

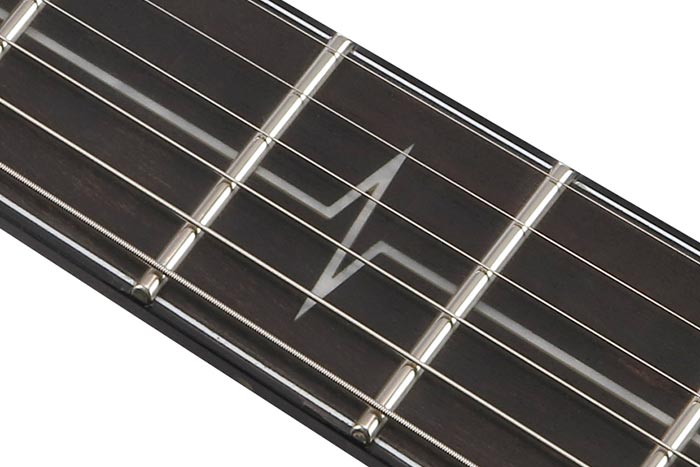

Jumbo frets

Jumbo frets contribute to smooth playability, especially for single-note playing.

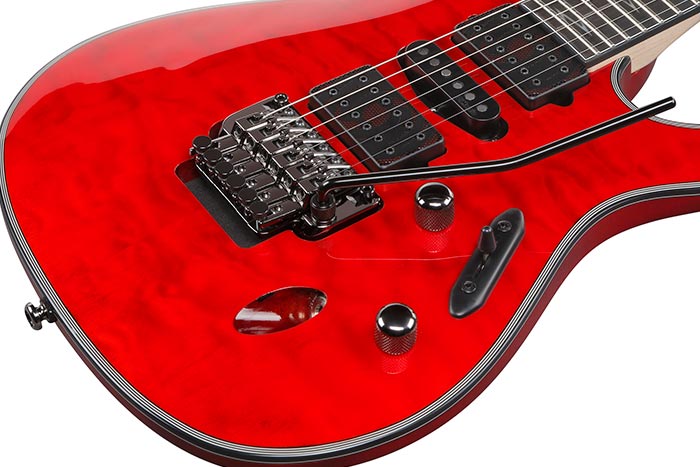

Quilted Maple top / African Mahogany body

The Quilted Maple top sonically enriches the response for picking. The African Mahogany body delivers a rich mid-low end.

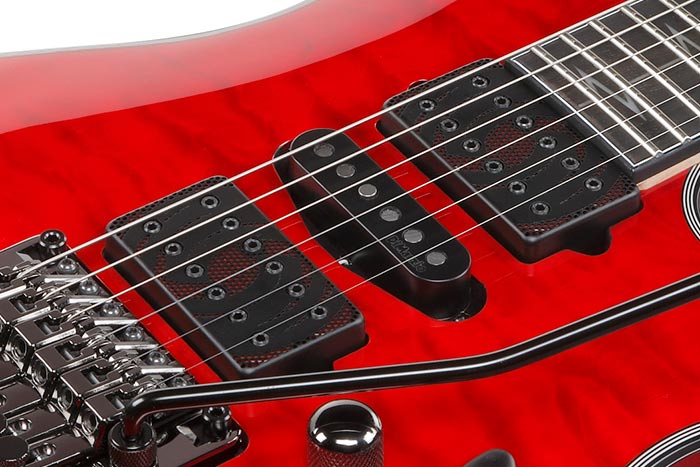

DiMarzio® Pandemonium™ / DiMarzio® True Velvet™ pickups

DiMarzio® Pandemonium™ pickups have a modern take on a classic rock sound that Nita desires.

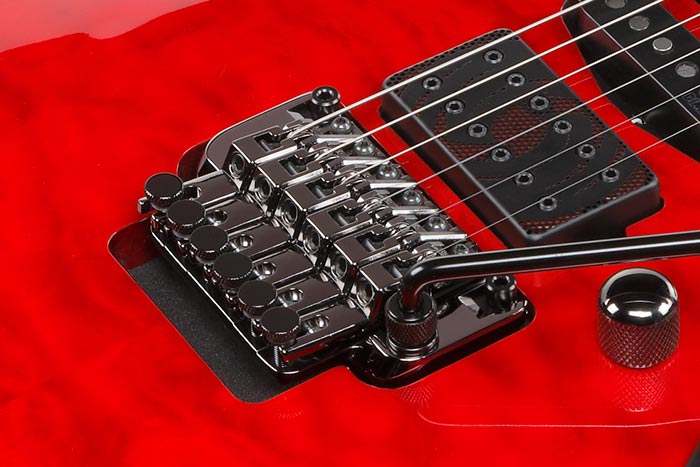

Edge Zero II bridge

The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
