JBM10FX
- PWM : Pearl White Matte
- COLOR VARIATION：
COLOR VARIATION
SPEC
-
SPECS
-
neck typeWizard IIIMaple neck
-
top/back/bodyMaple topOkoume body
-
fretboardRosewood fretboardJBM special inlay on 12th fret
-
fretJumbo frets
-
number of frets24
-
bridgeGibraltar Standard II bridge
-
string space10.8mm
-
neck pickupDiMarzio® Titan™ (H) neck pickupPassive/Ceramic
-
bridge pickupDiMarzio® Titan™ (H) bridge pickupPassive/Ceramic
-
factory tuning1D,2A,3F,4C,5G,6C
-
stringsD'Addario® EXL117
-
string gauge.011/.014/.019/.032/.044/.056
-
hardware colorBlack and Gold
-
-
NECK DIMENSIONS
-
Scale :648mm/25.5"
-
a : Width43mm at NUT
-
b : Width58mm at 24F
-
c : Thickness19mm at 1F
-
d : Thickness21mm at 12F
-
Radius :400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard -
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a five-way pickup selector switch close to the edge of the body. The volume knob is located near the end of the body.
-
OTHER FEATURES
-
- Recommended Case
-
M300C
- Gotoh® MG-T locking machine heads
-
Features
Wizard III 3pc Maple Neck
Maple Wizard III neck allows for warp-speed fretboard work and smooth access to the upper frets.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

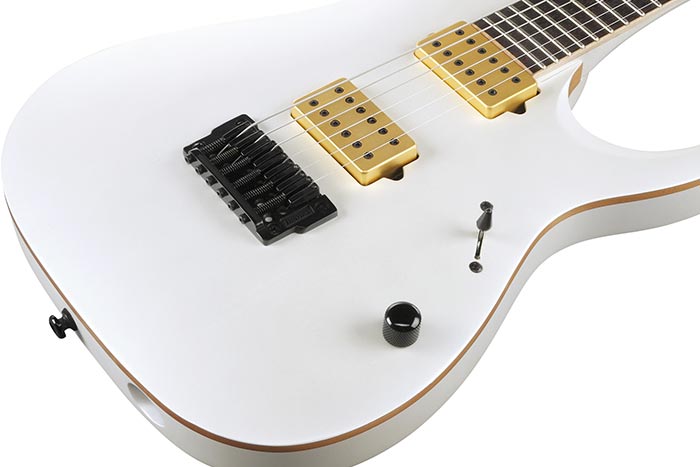

Maple top / Okoume body
The Maple top sonically enriches the response while picking. The Okoume body provides a bright and solid sound.
DiMarzio® Titan™ Pickups
Jake's signature DiMarzio® Titan™ pickups provide the perfect combination of tight and aggressive.
Gibraltar Standard II bridge
The Gibraltar Standard II is a simple fixed bridge designed to provide optimal transfer of each string's vibration and its smooth surface maximizes playing comfort.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
