IV2MDM
- COLOR VARIATION：
SPEC
-
SPECS
-
neck typeMDM5S-TECH WOOD Roasted Maple neck
-
top/back/bodyBlack Limba topAlder body
-
fretboardCocobolo fretboardMaple dot inlay
-
fretMedium Stainless Steel fretsCustom Shop fret edge treatment
-
number of frets24
-
bridgeMR5S bridge w/ Brass saddle pieces
-
string space18mm
-
neck pickupDelta S5J neck pickupPassive
-
bridge pickupDelta S5J bridge pickupPassive
-
equalizerIbanez Sonitech Preamp 3-band EQ w/EQ bypass switch (push/pull), 3-way Mid frequency switch w/Hexa Mid system
-
factory tuning1G,2D,3A,4E,5B
-
stringsD'Addario® EXL165 + .130
-
string gauge.045/.065/.085/.105/.130
-
nutBone nut
-
hardware colorBlack
-
-
NECK DIMENSIONS
-
-
Scale :864mm/34"
-
a : Width45mm at NUT
-
b : Width74mm at 24F
-
c : Thickness20.5mm at 1F
-
d : Thickness22.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
When holding the bass in the playing position, the Hexa Mid System switch is located on the control cavity cover on the back of the bass. Moving the switch to the up position activates the "H" or high bank, while the down position selects the "L" or low bank. The mini switch on the front of the body is a 3-way mid frequency selector. When the Hexa Mid System is set to the H bank, the mid boost peak is at 350Hz in the neck position, 600Hz in the center position, and 1kHz in the bridge position. In the L bank, the mid boost peak is at 250Hz in the neck position, 450Hz in the center position, and 850Hz in the bridge position. Along the lower edge of the body, there are six knobs. Directionally, the first three from the neck towards the lower bout they are; volume, blend and master tone with push/pull EQ bypass switch. When the master tone knob is pulled up, the EQ bypass is activated. The remaining three smaller knobs near the edge of the body, from the neck towards the lower bout are the treble boost/cut, mid boost/cut, bass boost/cut.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve peaks at 50 Hz, with a variable width that narrows toward higher frequencies, reaching zero around 1000 Hz. The peak frequency's range is approximately ±18 dB. The treble boost/cut frequency curve forms a mountain-shaped peak around 10,000 Hz, with a variable range that becomes zero around 300 Hz. The peak frequency's range is approximately ±18 dB. The Hexa Mid System switch is located on the back of the bass, in the middle of the control cavity cover. In the up position (towards the center of the body), it is set to "H," and in the down position (towards the edge of the body), it is set to "L." When the Hexa Mid System is set to "H," the mid-boost/cut frequency curve creates a mountain-shaped peak at a specific frequency. The variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 1000, 600, or 350 Hz, with a variable range of approximately ±13 dB. When the Hexa Mid System is set to "L," the mid-boost/cut frequency curve creates a similar mountain-shaped peak, but the variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 850, 450, or 250 Hz, with a variable range of approximately ±13 dB.
-
OTHER FEATURES
- Available in Summer 2026
- Hardshell case included
- Gotoh® RES-O-LITE machine heads
- Luminlay side dots
Features

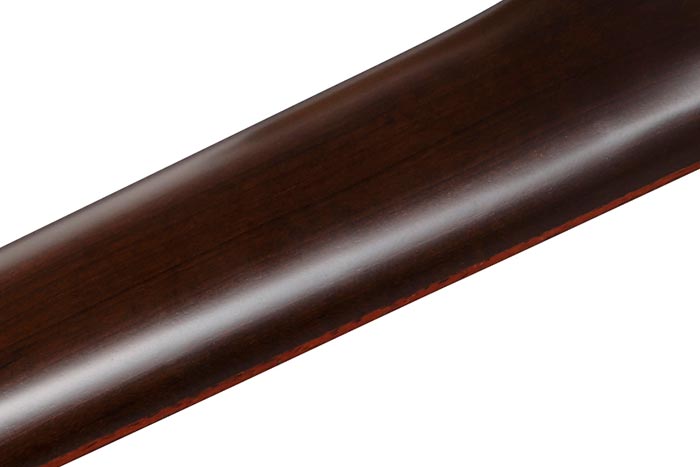

S-TECH WOOD Roasted Maple neck
The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

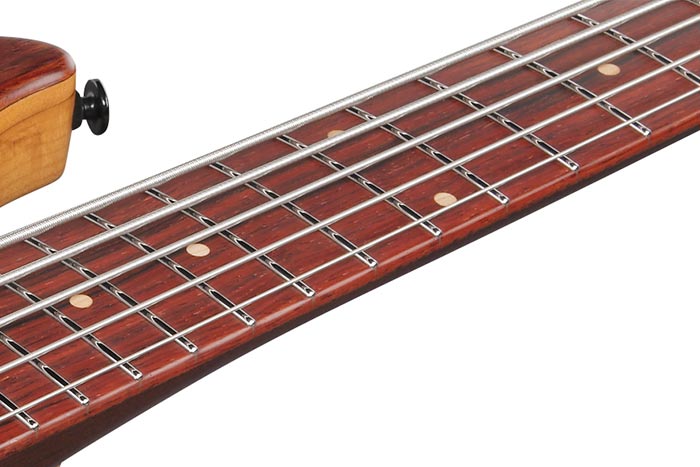

Cocobolo fretboard
The Cocobolo fretboard offers a feel similar to Brazilian Rosewood, providing rich and complex overtones.

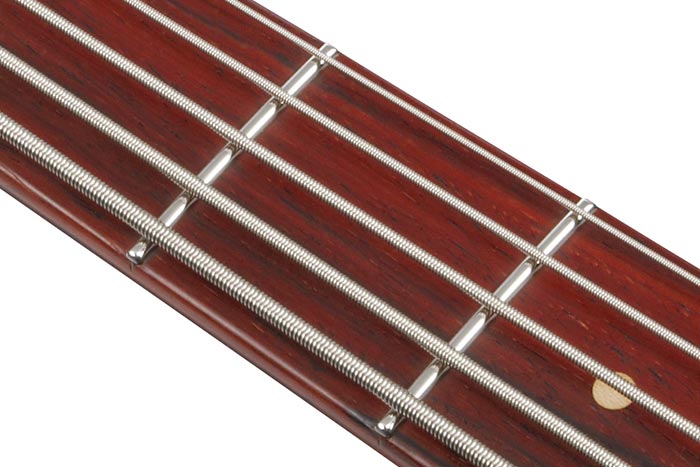

Medium Stainless Steel frets with Custom Shop fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The Custom Shop fret edge treatment provides an extremely smooth, even feel around every single fret.

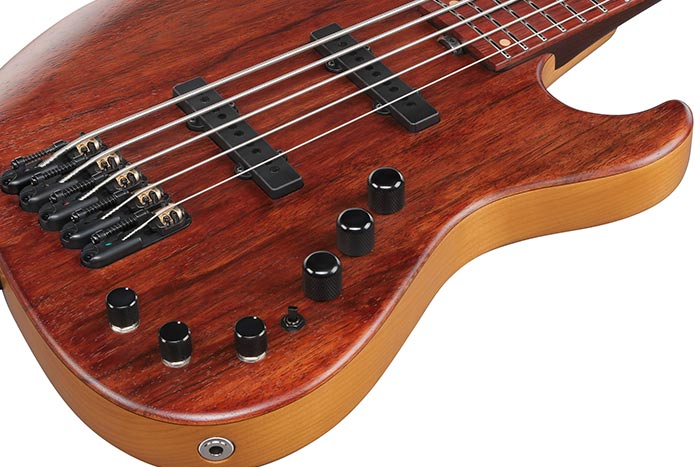

Black Limba top / Alder body
The Black Limba top displaying a beautiful wood grain and the Alder body deliver a well-balanced bright tone, enriched resonance and sustain.
Delta S5J pickups
The Ibanez Delta pickups deliver an aggressive yet balanced single-coil tone that responds clearly and evenly in all frequency ranges. They're voiced to cut powerfully through any mix while eliminating noise, thanks to their hum-canceling design.

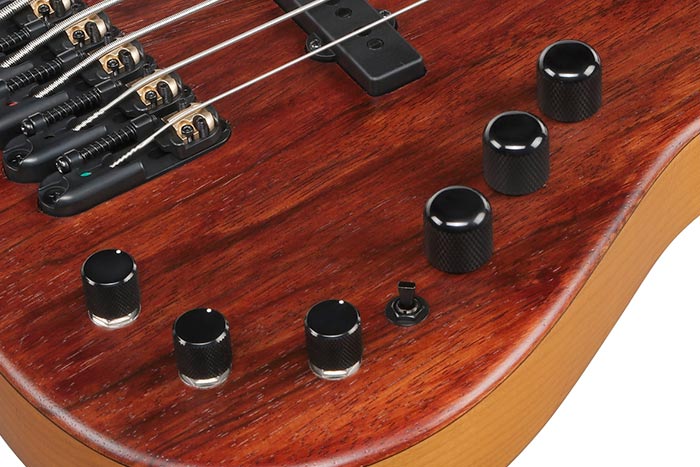

Ibanez Sonitech Preamp 3-band EQ w/EQ bypass switch (push/pull)
The Ibanez Sonitech Preamp boasts a meticulously tuned tonal character across the entire frequency spectrum. This circuit offers two selectable 3-band mid-range banks and a passive tone control for unparalleled versatility. Crafted in Japan with premium components, this preamp is designed to deliver maximum flexibility and ease of use.
The EQ bypass switch (push/pull) switches between EQ bypass (Pull) or EQ on (Push).
3-way Mid frequency switch w/Hexa Mid system
The Hexa Mid system offers players the flexibility to choose from two mid-range banks, each containing three distinct frequency points, for a total of six. Its exceptional versatility and user-friendly interface help players achieve their ideal bass sound.

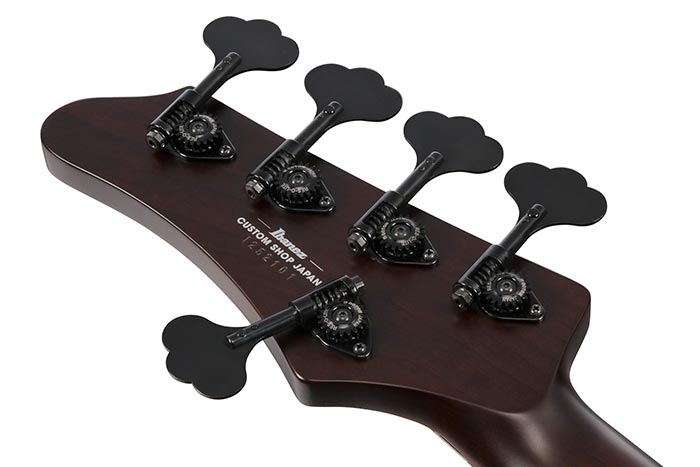

Gotoh® RES-O-LITE machine heads
Super lightweight Gotoh RES-O-LITE tuners prevent neck-dive and ensure superb tuning accuracy.

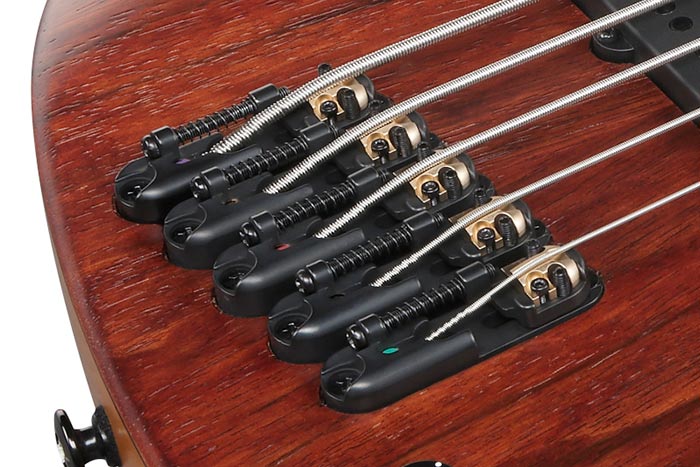

MR5S bridge w/ Brass saddle pieces
The MR5S mono-rail bridge transfers each string vibration efficiently and delivers great clarity and sustain, which helps emphasize chordal playing and fast passages. It features custom-made Brass saddles, providing a rich and warm tone. It also offers adjustable string spacing.

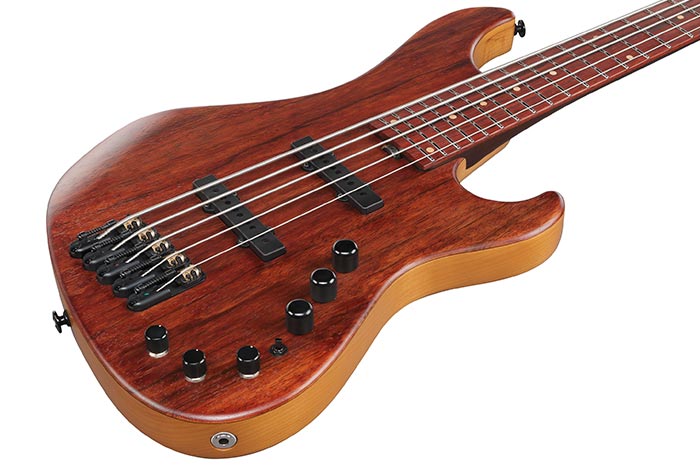

MDM body shape
The MDM body is specially designed for perfect balance and smooth access to all 24 frets.

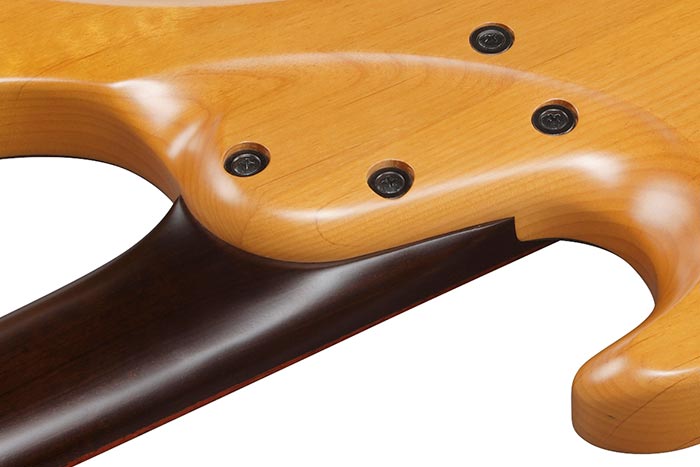

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
Detachable Finger ramp
A detachable Finger ramp is included for comfortable finger picking.
Black Limba rear control cavity plate
The rear control cavity plate made of Black Limba, adding another sophisticated visual element to further enhance the imaginative concept of the instrument.
