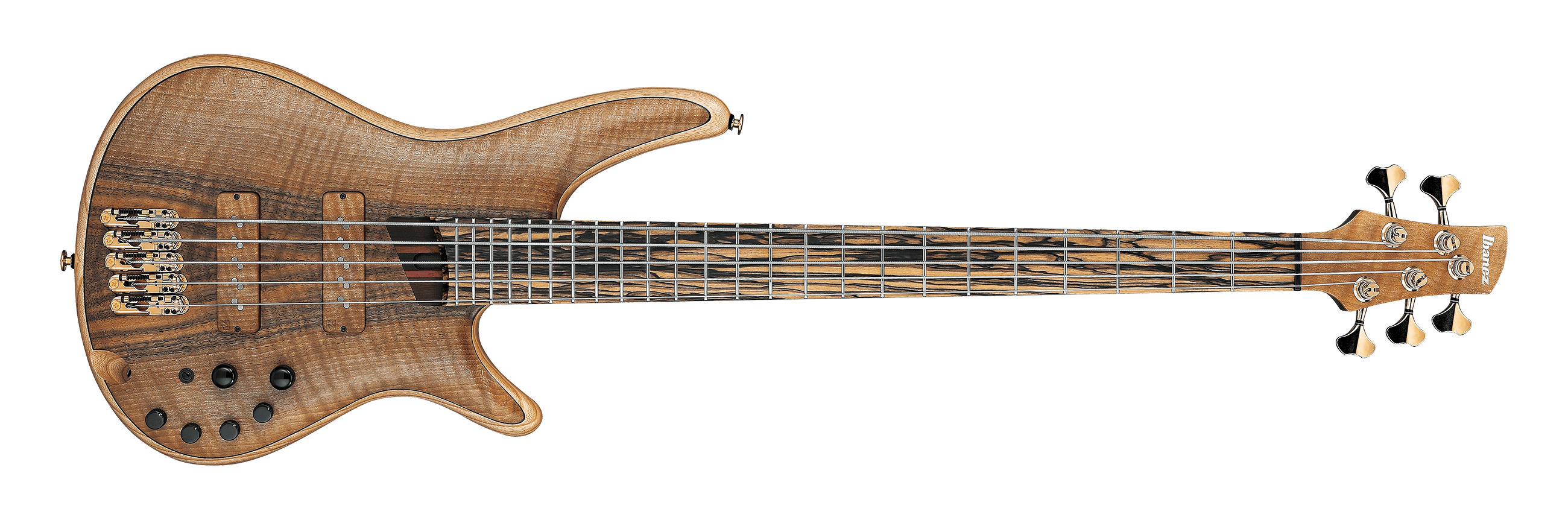

IV1SR
- COLOR VARIATION：
SPEC
-
SPECS
-
neck typeAtlas-5 HP5pc S-TECH Maple/Purpleheart neck
-
top/back/bodyBastogne Walnut topAsh body
-
fretboardPale Moon Ebony fretboard
-
fretMedium fretsCustom Shop fret edge treatment
-
number of frets24
-
bridgeMR5S bridge
-
string space16.5mm
-
neck pickupNordstrand™ Big Single wood covered neck pickupPassive
-
bridge pickupNordstrand™ Big Single wood covered bridge pickupPassive
-
equalizerIbanez Sonitech Preamp 3-band EQ w/EQ bypass switch (push/pull), 3-way Mid frequency switch w/Hexa Mid system
-
factory tuning1G,2D,3A,4E,5B
-
stringsD'Addario® EXL165 + .130
-
string gauge.045/.065/.085/.105/.130
-
nutDURACON® nut
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :864mm/34"
-
a : Width45mm at NUT
-
b : Width68mm at 24F
-
c : Thickness19.5mm at 1F
-
d : Thickness21.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION

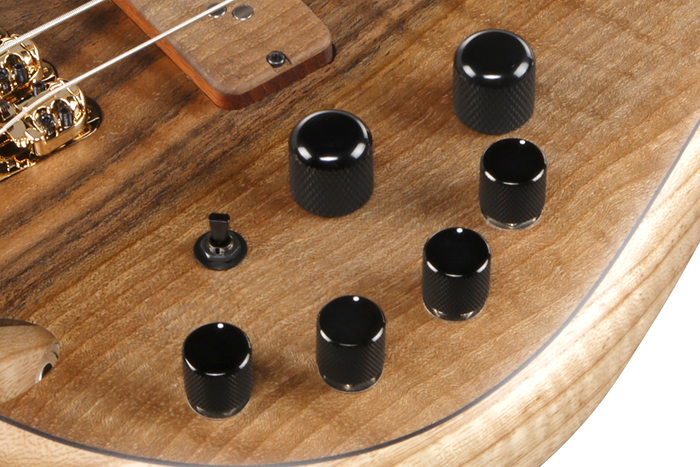

When holding the bass in the playing position, the Hexa Mid System switch is located on the control cavity cover on the back of the bass. Setting the switch to the up position activates the "H" or high bank, while the down position selects the "L" or low bank. The mini switch on the front of the body is a 3-way mid frequency selector. When the Hexa Mid System is set to the H bank, the mid boost peak is at 350Hz in the neck position, 600Hz in the center position, and 1kHz in the bridge position. In the L bank, the mid boost peak is at 250Hz in the neck position, 450Hz in the center position, and 850Hz in the bridge position. Two knobs are located near the mini-switch towards the neck. The knob closest to the mini toggle switch is the blend knob, and the knob towards the neck is the volume knob. Along the lower edge of the body, four knobs control the treble boost/cut, mid boost/cut, bass boost/cut, and master passive tone. A push/pull EQ bypass switch is incorporated into the master tone knob. When the master tone knob is pulled up, the EQ bypass is activated.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve peaks at 50 Hz, with a variable width that narrows toward higher frequencies, reaching zero around 1000 Hz. The peak frequency's range is approximately ±18 dB. The treble boost/cut frequency curve forms a mountain-shaped peak around 10,000 Hz, with a variable range that becomes zero around 300 Hz. The peak frequency's range is approximately ±18 dB. The Hexa Mid System switch is located on the back of the bass, in the middle of the control cavity cover. In the up position (towards the center of the body), it is set to "H," and in the down position (towards the edge of the body), it is set to "L." When the Hexa Mid System is set to "H," the mid-boost/cut frequency curve creates a mountain-shaped peak at a specific frequency. The variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 1000, 600, or 350 Hz, with a variable range of approximately ±13 dB. When the Hexa Mid System is set to "L," the mid-boost/cut frequency curve creates a similar mountain-shaped peak, but the variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 850, 450, or 250 Hz, with a variable range of approximately ±13 dB.
-
OTHER FEATURES
- Available winter 2025
- Hardshell case included
- Gotoh® machine heads
- Luminlay side dots
Features
Atlas HP 5pc S-TECH Maple/Purpleheart neck
The Atlas HP 5pc Maple/Purpleheart neck provides tonal clarity and superior attack. The special S-TECH roasting process enhances the wood's stability, durability, water resistance, and tolerance to temperature fluctuations.

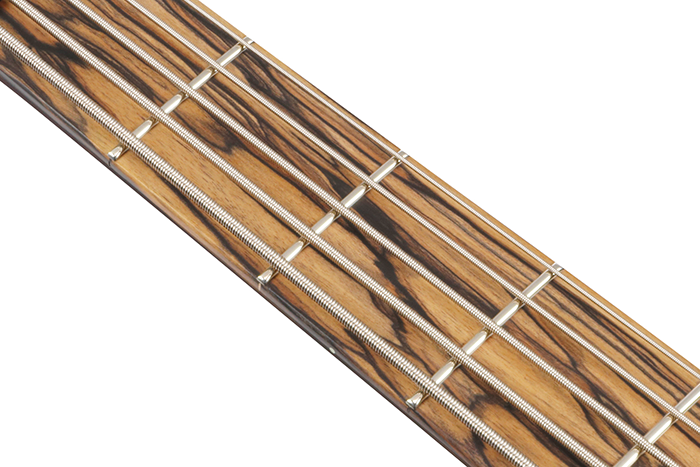

Pale Moon Ebony fretboard
The Pale Moon Ebony fretboard does not only display a rich, beautiful wood grain, sonically it also produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

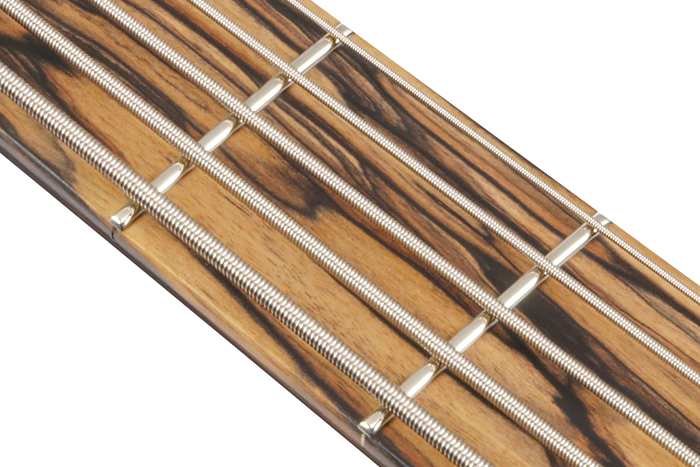

Medium fret with Custom Shop fret edge treatment
The Custom Shop fret edge treatment provides an extremely smooth, even feel around every single fret.
Bastogne Walnut top / Ash body
The Bastogne Walnut top features an exotic wood grain and the Ash body delivers a pleasant brightness and rich sustain.

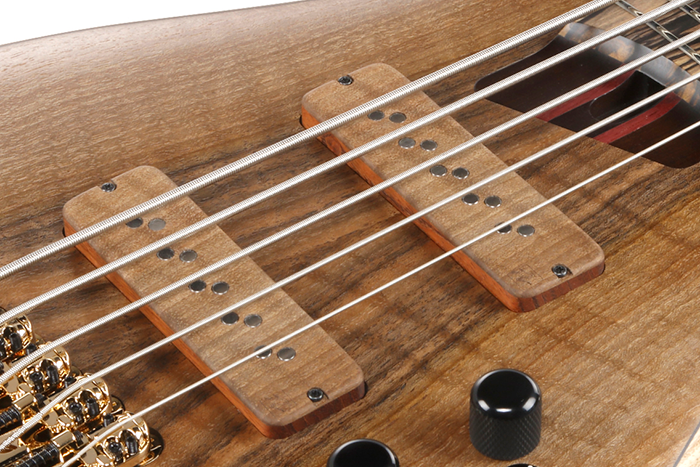

Nordstrand™ Big Single pickups with wood cover
Nordstrand™ "Big Single" cram a meaty a single coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that's characteristic of single coil pickups. The pickups' beautiful wood cover imbues this bass guitar with an exotic appearance.
Ibanez Sonitech Preamp 3-band EQ w/EQ bypass switch (push/pull)
The Ibanez Sonitech Preamp boasts a meticulously tuned tonal character across the entire frequency spectrum. This circuit offers two selectable 3-band mid-range banks and a passive tone control for unparalleled versatility. Crafted in Japan with premium components, this preamp is designed to deliver maximum flexibility and ease of use.
The EQ bypass switch (push/pull) switches between EQ bypass (Pull) or EQ on (Push).

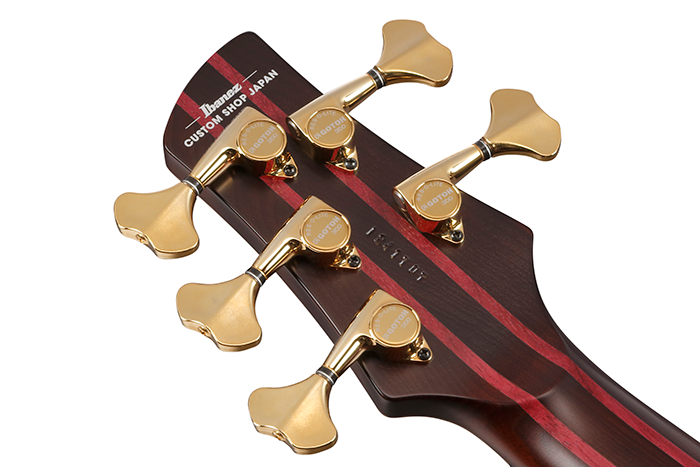

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

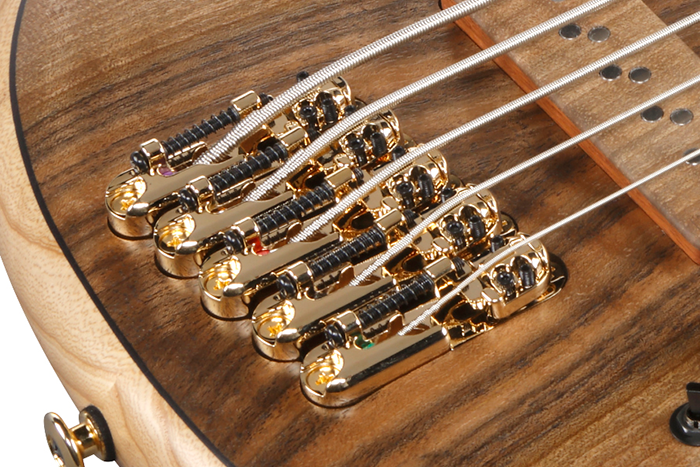

MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/ 1.5mm, answering every bassist's specific string spacing needs.
3-way Mid frequency switch w/Hexa Mid system
The Hexa Mid system offers players the flexibility to choose from two mid-range banks, each containing three distinct frequency points, for a total of six. Its exceptional versatility and user-friendly interface help players achieve their ideal bass sound.
