SPEC

SPECS
- neck type

  Super Wizard5pc Maple/PurpleheartNeck-through
- top/back/body

  Burl Maple (4mm) topBlack Limba body
- fretboard

  Ebony fretboardTree of Life inlay
- fret

  Jumbo Stainless Steel fretsCustom Shop Fret Edge Treatment
- number of frets

  24
- bridge

  Lo-Pro Edge bridge
- string space

  10.8mm
- neck pickup

  DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
- middle pickup

  DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
- bridge pickup

  DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL120
- string gauge

  .009/.011/.016/.024/.032/.042
- nut

  Locking nut
- hardware color

  Matte Gold
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    43mm at NUT
  - b : Width

    58mm at 24F
  - c : Thickness

    17mm at 1F
  - d : Thickness

    19mm at 12F
  - Radius :

    430mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
OTHER FEATURES
- Hardshell case included
- Gotoh® Strap lock pins
- Gotoh® machine heads

Features

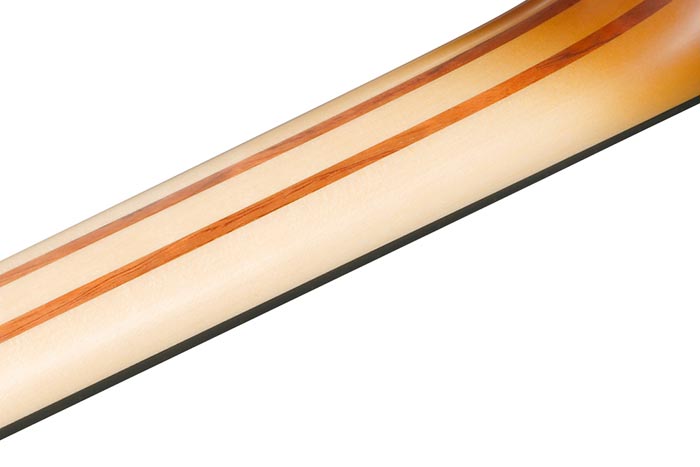

Super Wizard 5pc Maple/Purpleheart neck

The Super Wizard 5pc Maple/Purpleheart neck provides extra-smooth playing.

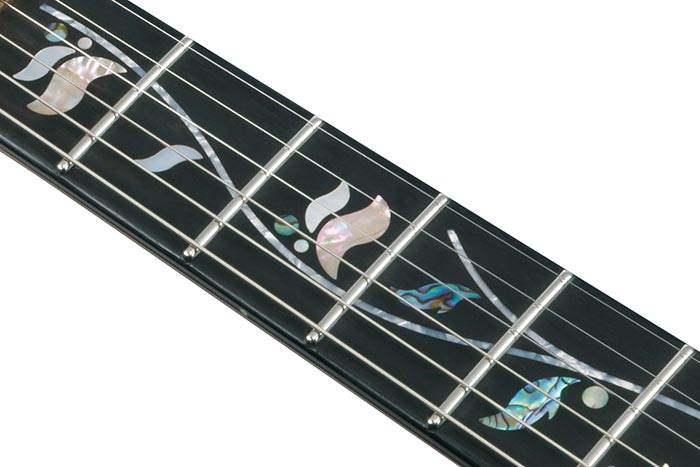

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

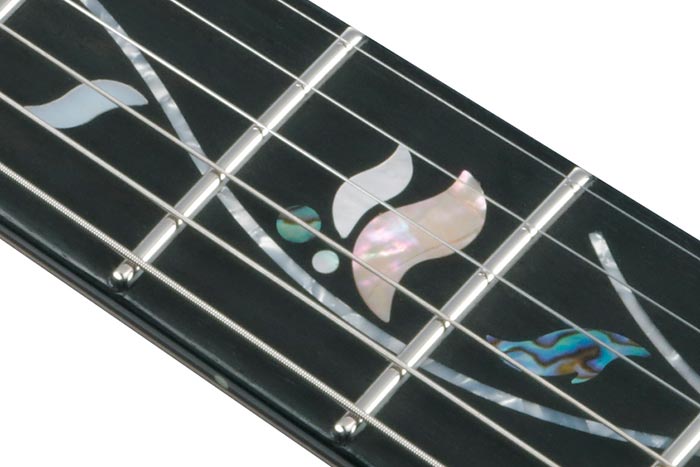

Jumbo Stainless Steel frets with VISIONS fret edge treatment

Jumbo Stainless Steel frets with Custom Shop fret edge treatment

Stainless steel frets boast excellent corrosion resistance. The wide, tall fret style offers a quick response, good articulation when chording, and clear tone when playing single notes. The Custom Shop fret edge treatment provides a smooth, even feel around every single fret.

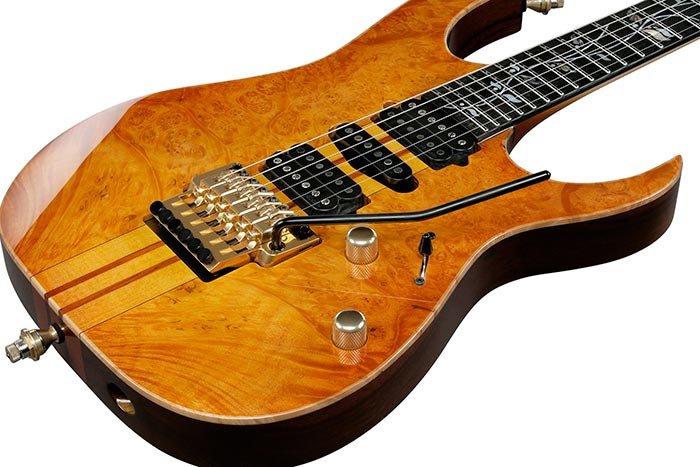

Burl Maple top / Black Limba body

The Burl Maple top displays a beautiful wood grain. The Black Limba body provides a warm tone with rich resonance.

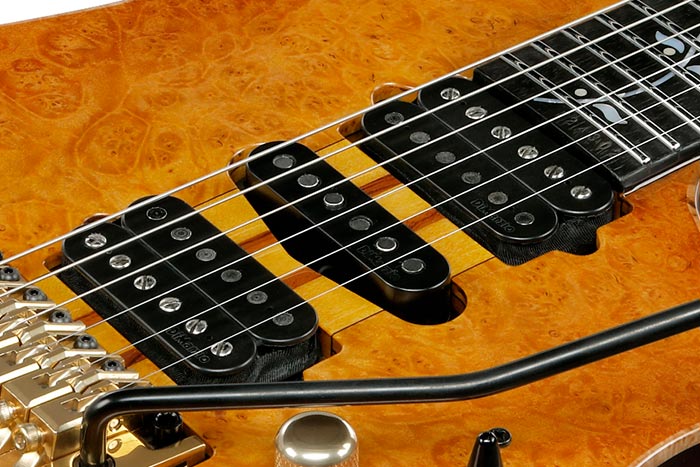

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

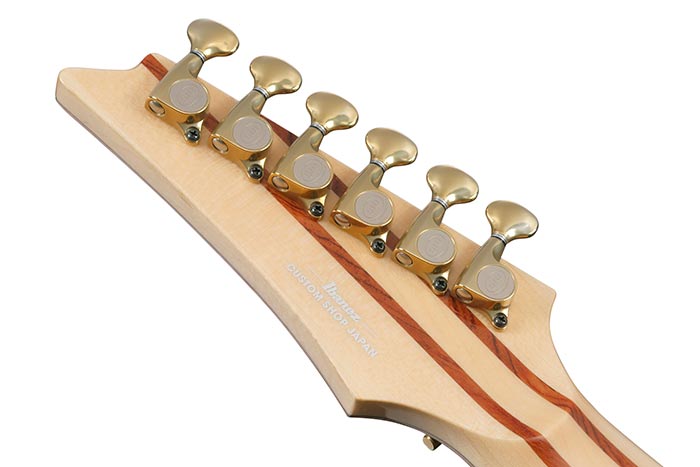

Gotoh® machine heads

Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

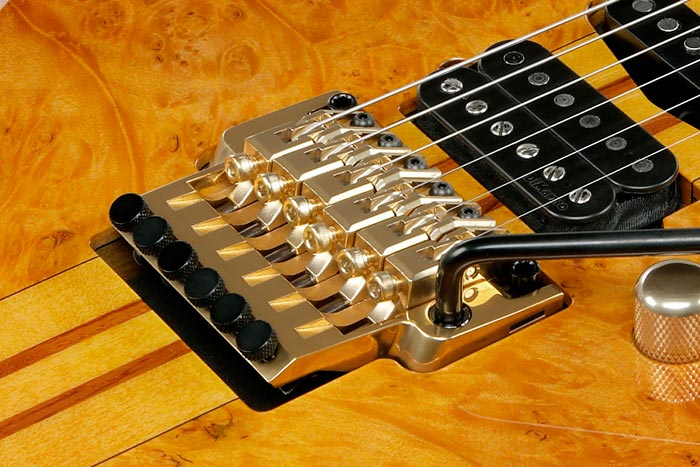

Lo-Pro Edge tremolo

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

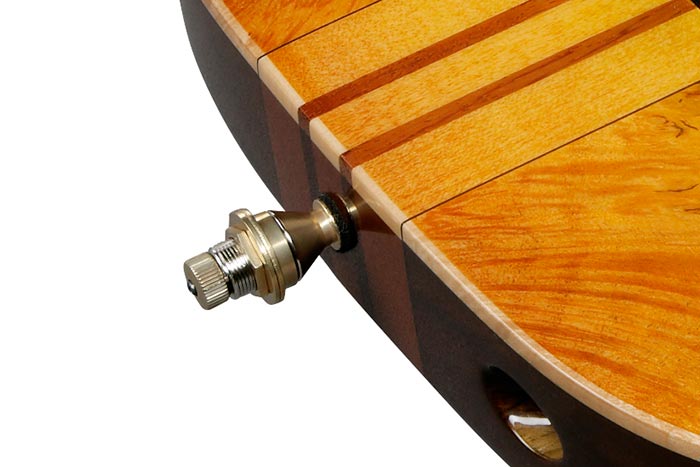

Gotoh® Strap lock pins

Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.
