ICWH727

  • ICWH727
  • COLOR VARIATION：

COLOR VARIATION

ARTIST DETAIL
ICWH

SPEC

  • SPECS

    • neck type
      ICWH3pc Maple/Purpleheart neckSet-in neck (smooth heel)
    • top/back/body
      Flamed Maple (4mm) topAfrican Mahogany body
    • fretboard
      Bound Rosewood fretboardOff-set Abalone dot inlay
    • fret
      Jumbo fretsCustom Shop fret edge treatment
    • number of frets
      24
    • bridge
      Lo-Pro Edge 7 tremolo bridge
    • string space
      10.8mm
    • neck pickup
      Seymour Duncan® Jupiter Rails (H) neck pickupPassive/Ceramic
    • bridge pickup
      Seymour Duncan® Jupiter Rails (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E,7B
    • strings
      D'Addario®
    • string gauge
      .008/.010/.015/.022/.030/.040/.056
    • nut
      Locking nut
    • hardware color
      Black

  • NECK DIMENSIONS

    • Scale :
      686mm/27"
    • a : Width
      48mm at NUT
    • b : Width
      68mm at 24F
    • c : Thickness
      18mm at 1F
    • d : Thickness
      20mm at 12F
    • Radius :
      430mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    ICWH727's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    ICWH727's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is a volume knob near the knee cutou. A pickup selector switch is located towards the upper half of the guitar near the neck pickup.

  • OTHER FEATURES

    • Hardshell case included
    • Hipshot machine heads

Features

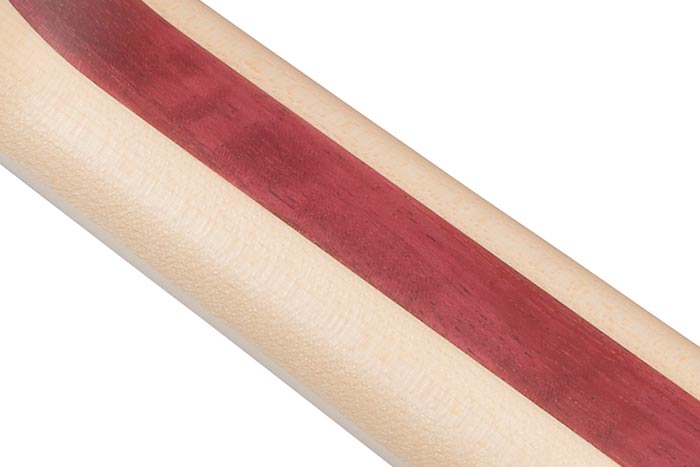

3pc Maple/Purpleheart neck

The Purpleheart stripe provides stability and longer sustain.

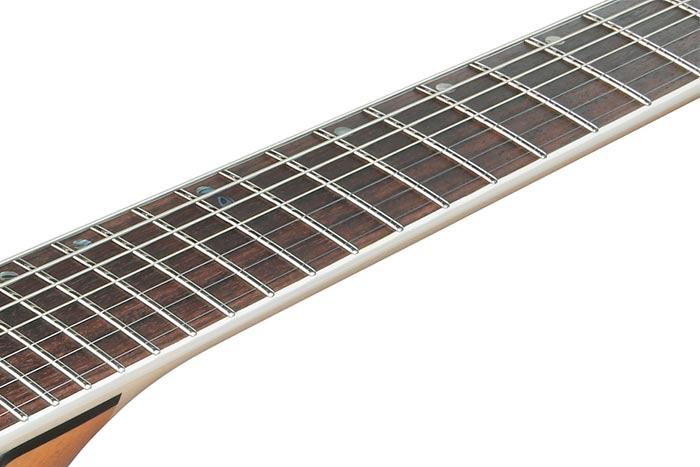

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

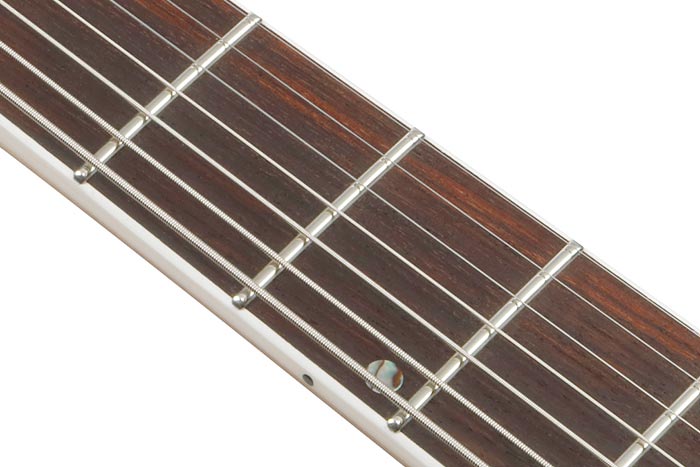

Jumbo frets with Custom Shop fret edge treatment

The Custom Shop fret edge treatment provides an extremely smooth, even feel around every single fret.

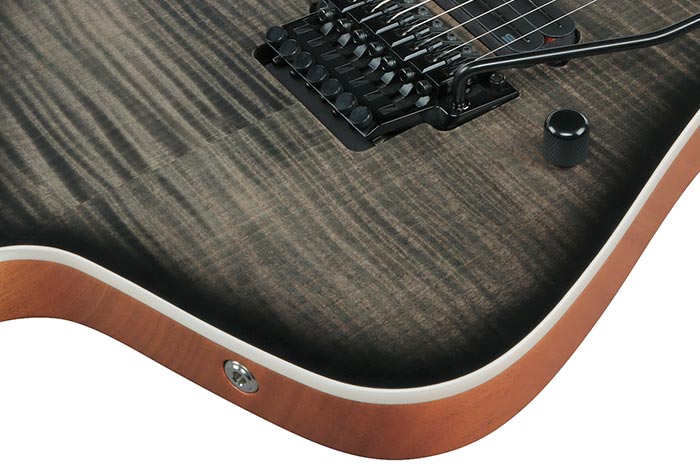

Flamed Maple (4mm) top / African Mahogany body

A stunning Flamed Maple top and African Mahogany body provide a warm tone with rich resonance.

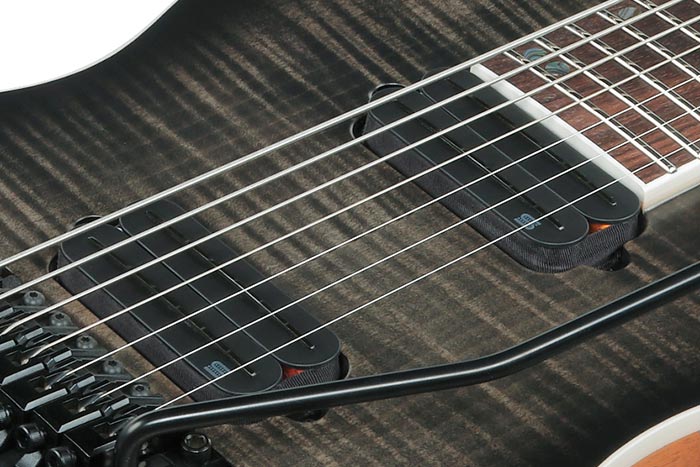

Seymour Duncan® Jupiter Rails pickups

Wes Hauch's signature pickup set from Seymour Duncan® features dual stainless-steel blade poles on each pickup, achieving a well-balanced output across all strings with enhanced note articulation. Tonewise, these pickups are specially voiced with a distinctive midrange character, and a high output level ideal for aggressive playing.

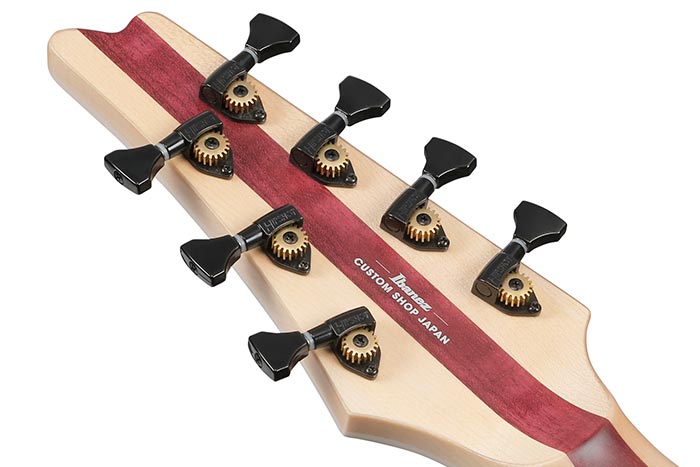

Hipshot machine heads

Hipshot machine heads offer incredible tuning stability.

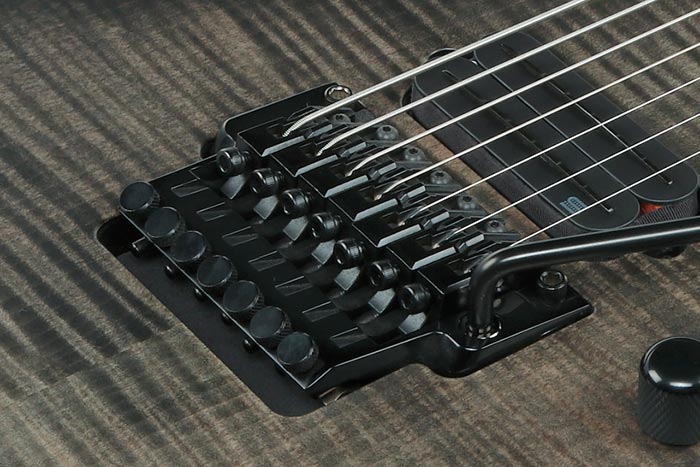

Lo-Pro Edge tremolo

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
