ICMS721

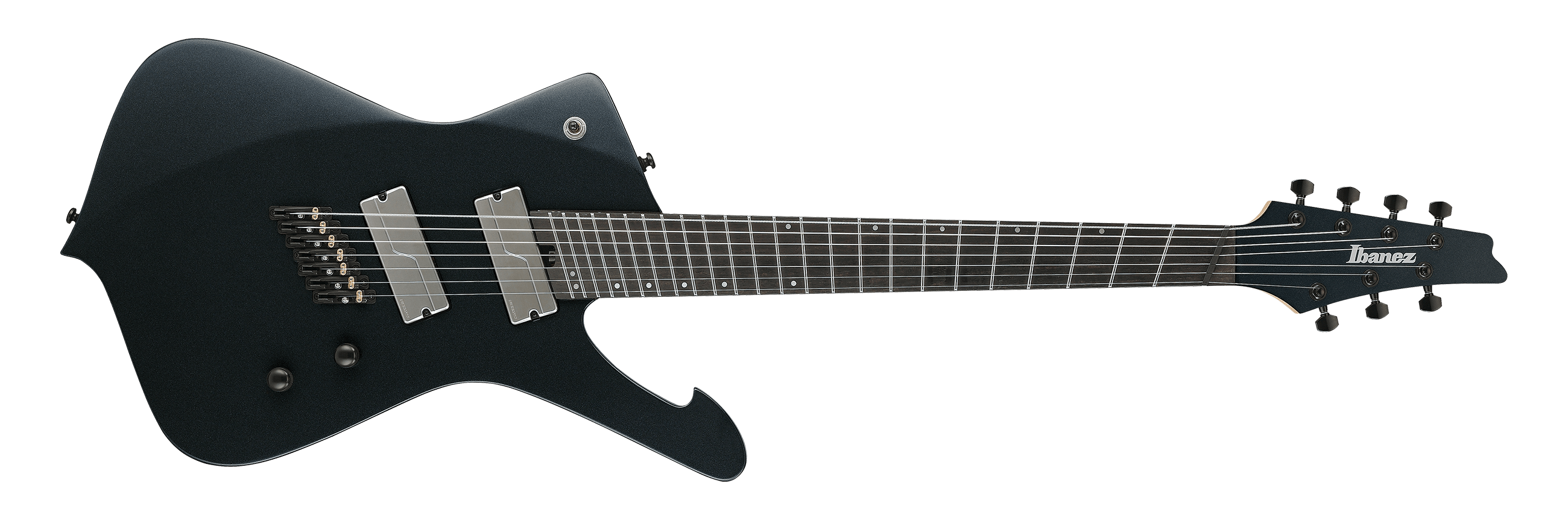

  • ICMS721-IPT
  • IPT : Iron Pewter
  • COLOR VARIATION：

COLOR VARIATION

Iceman

SPEC

  • SPECS

    • neck type
      Wizard II-75pc Maple/Walnut neck
    • top/back/body
      Okoume body
    • fretboard
      Ebony fretboardWhite Step off-set dot inlay
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      Mono-rail G2 bridge
    • string space
      10.8mm
    • neck pickup
      Fishman® Fluence™ Modern Humbucker Ceramic 8 (H) neck pickupActive/Ceramic
    • bridge pickup
      Fishman® Fluence™ Modern Humbucker Ceramic 8 (H) bridge pickupActive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E,7B
    • strings
      D'Addario® EXL120+.059
    • string gauge
      .009/.011/.016/.024/.032/.042/.059
    • hardware color
      Black

  • NECK DIMENSIONS

    • Scale :
      691mm/27.2" - 648mm/25.5"
    • a : Width
      48mm at NUT
    • b : Width
      68mm at 24F
    • c : Thickness
      19mm at 1F
    • d : Thickness
      21mm at 12F
    • Radius :
      400mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the fret position specified by the neck dimension
    c: Thickness of the neck at the first fret
    d: Thickness of the neck at the fret position specified by the neck dimension
    Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    ICMS721's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

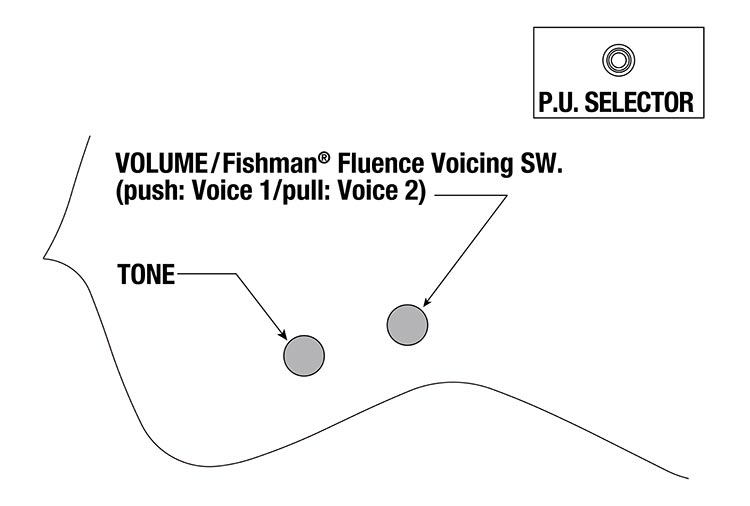

    ICMS721's control diagram

    DESCRIPTION

    With the guitar held in the playing position, a push/pull volume knob that also controls the Fishman Fluence voicing function is located near the knee cutout on the lower portion of the body. The tone knob is located toward the end of the body. When the volume knob is down, Fluence voice 1 is engaged. With the volume knob up, Fluence voice 2 is engaged. A pickup selector switch is located towards the upper half of the body near the neck pickup.

  • OTHER FEATURES

    • Gig bag included
    • Fishman™ Fluence™ Voicing switch on volume control (push/pull)
    • Luminescent side dots inlay

Features

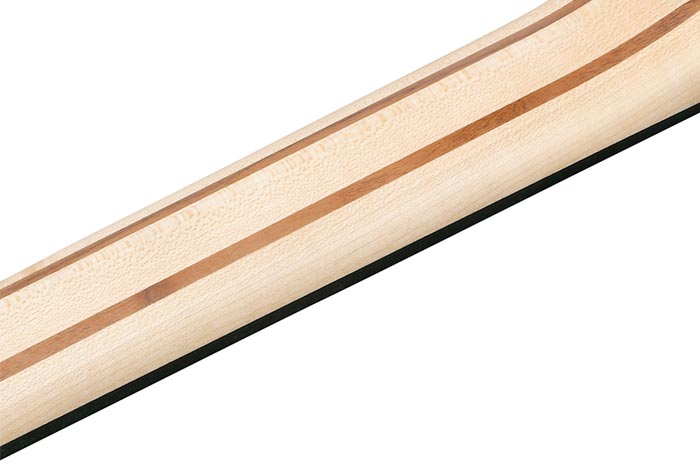

Wizard II-7 5pc Maple/Walnut neck

Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

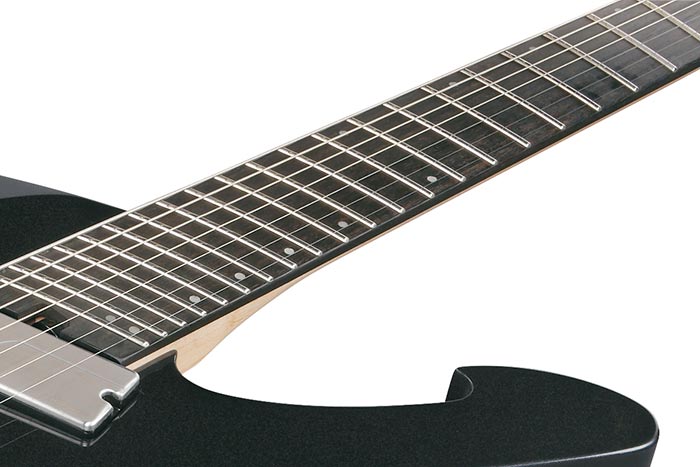

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

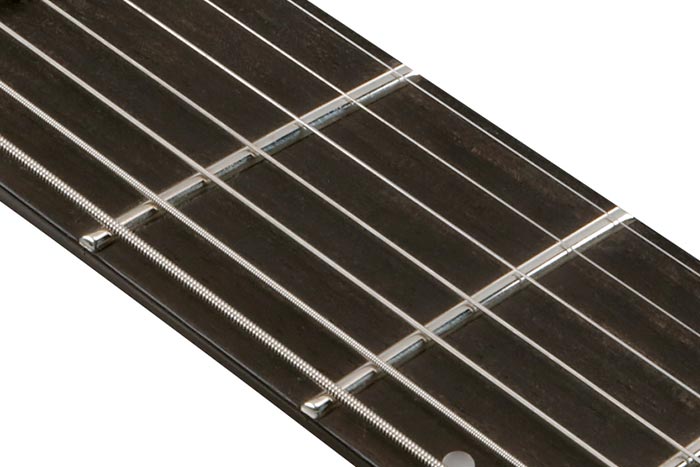

Jumbo frets

Jumbo frets contribute to smooth playability, especially for single-note playing.

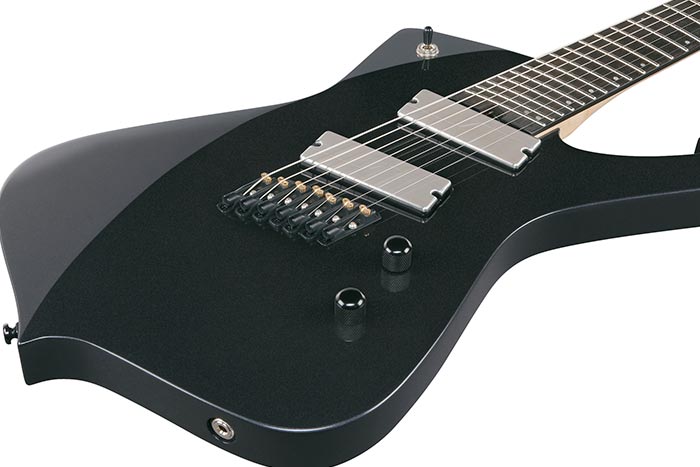

Okoume body

The Okoume body provides a bright and solid sound.

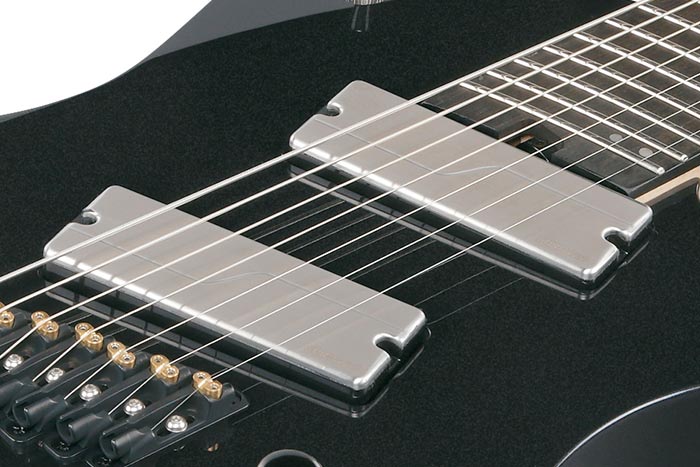

Fishman® Fluence™ Modern Humbucker Ceramic pickups

The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

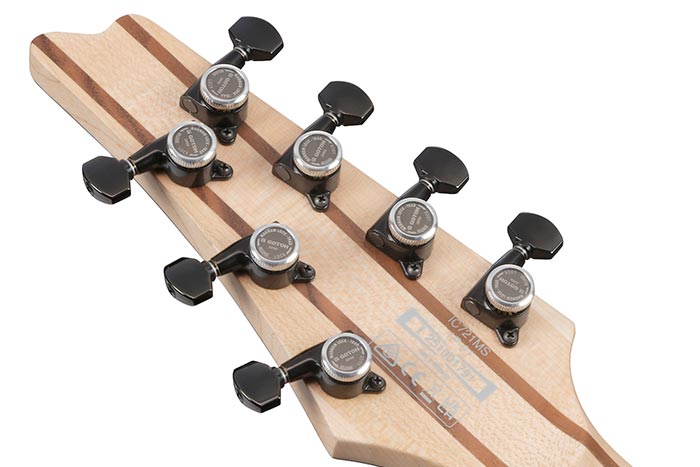

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

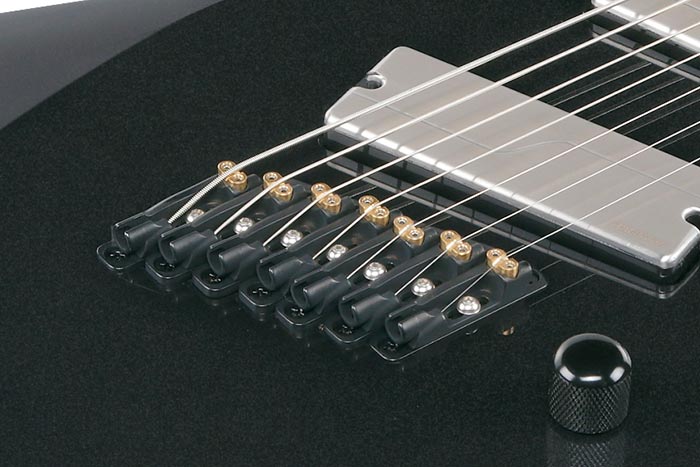

Mono-rail G2 bridge

The Mono-rail design transfers string resonance to the body while limiting string-to-string interference and provides superb note separation; The innovative Ibanez Mono-rail G2 bridge is also capable of string-through or top-loading string installation.

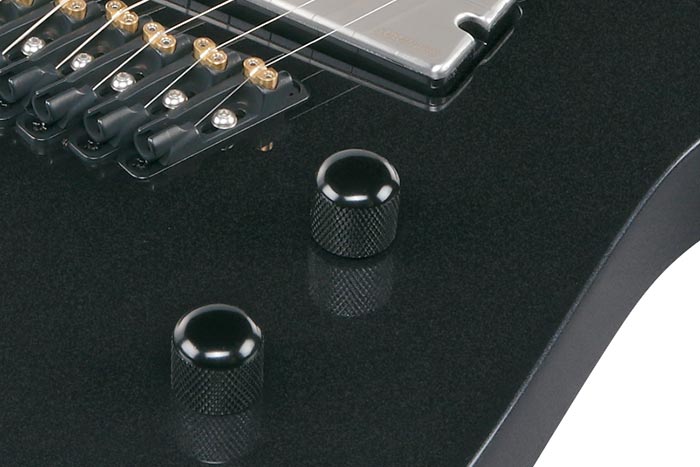

Fishman® Fluence™ Voicing switch on volume control (push/pull)

The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
