GWB1005-NTF
  • NTF : Natural Flat
  • COLOR VARIATION:
GWB

SPEC

  • SPECS

    • neck type
      GWB3pc Maple neck
    • top/back/body
      Swamp Ash body
    • fretboard
      Ebony fingerboardOff-set white dot inlay
    • fret
      Fretless
    • bridge
      Std. bridge
    • string space
      16.5mm
    • bridge pickup
      Bartolini® GWB bridge pickupPassive
    • equaliser
      Bartolini® NTBT 2-band EQ w/Eq bypass switch (push/pull)
    • factory tuning
      1G, 2D, 3A, 4E, 5B
    • strings
      D'Addario® EXL165-5
    • string gauge
      .045/.065/.085/.105/.135
    • hardware color
      Black
  • NECK DIMENSIONS

      • Scale :
        864mm/34"
      • a : Width
        45mm at NUT
      • b : Width
        67mm at 24F
      • c : Thickness
        19mm at 1F
      • d : Thickness
        21mm at 12F
      • Radius :
        305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • CONTROLS

    GWB1005's control diagram

    DESCRIPTION

    With the bass held in the playing position, the knob closest to the neck is the volume knob. Towards the end of the body there is a stacked knob. The upper portion is the treble boost/cut, and the lower portion is the bass boost/cut. The volume knob also functions as a EQ bypass switch. You can disengage the EQ by pulling up on the volume knob.

  • FREQUENCY RESPONSE

    GWB1005's EQ curve diagram

    DESCRIPTION

    The bass boost/cut frequency curve has a peak at about 20 Hz, the variable width decreases toward the high range, and the variable width becomes zero at around 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a curve with a peak around 10000 Hz and a variable range of zero around 50 Hz. The variable range of the peak frequency is approximately ±20 dB.

  • OTHER FEATURES

    • Hardshell case included

Features

Finger Ramp

Finger Ramp

The detachable finger ramp, designed by Gary Willis, encourages players to not "dig in too deep" and allows a more consistent attack with quick recovery time.

Swamp Ash body

Swamp Ash body

Swamp Ash body provides an exceptionally open sound.

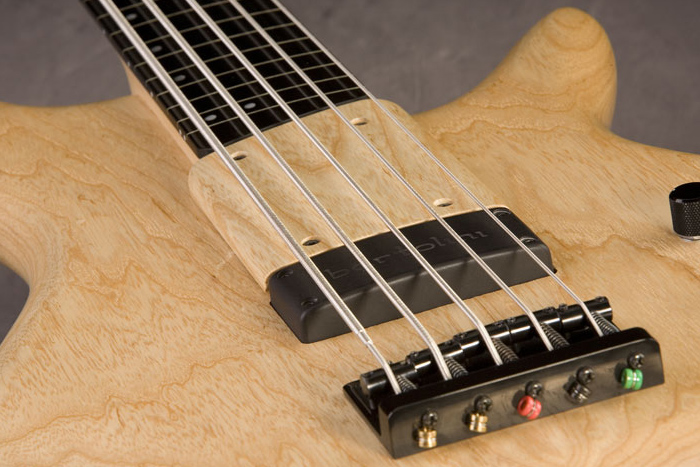

Bartolini GWB PU & NTBT EQ

Bartolini® GWB PU & NTBT EQ

Curved Bartolini® pickup provides separate coils for precise string balance.

Machine head

Machine head

Gary's special shaped machinehead.
