GSR205PC

PHOTOS
SPEC
FEATURES
SUPPORT

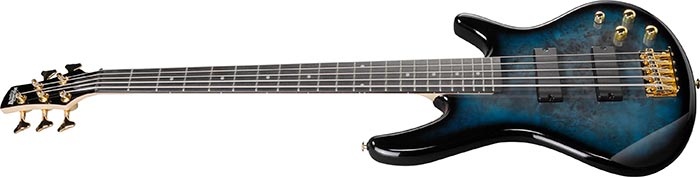

TMU : Transparent Marine Burst

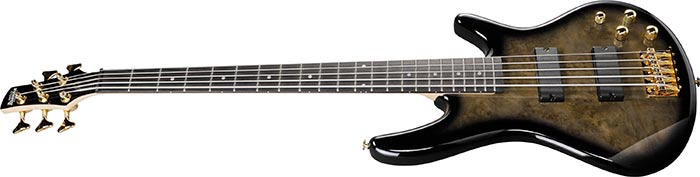

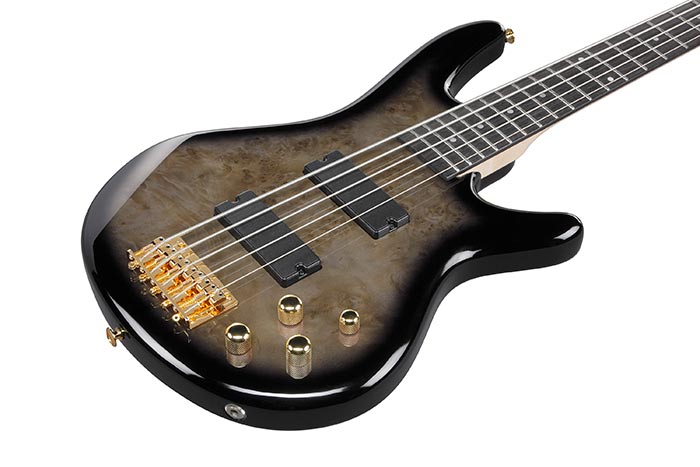

TPB : Transparent Pale Black Burst

COLOR VARIATION：

SR

SPEC

SPECS
- neck type

  GSR5Maple neck
- top/back/body

  PB Canvas Art Grain/Okoume topOkoume body
- fretboard

  Purpleheart fretboardWhite dot inlay
- fret

  Medium frets
- number of frets

  22
- bridge

  B15 bridge
- string space

  16.5mm
- neck pickup

  Dynamix H neck pickupPassive
- bridge pickup

  Dynamix H bridge pickupPassive
- equalizer

  Phat II EQ
- factory tuning

  1G,2D,3A,4E,5B
- string gauge

  .045/.065/.080/.100/.125
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    864mm/34"
  - a : Width

    45mm at NUT
  - b : Width

    67mm at 22F
  - c : Thickness

    21mm at 1F
  - d : Thickness

    22mm at 12F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
CONTROLS

DESCRIPTION

There are four knobs on this bass. The two knobs closest to the bridge are the volume knobs. The knob closest to the input jack is the tone knob, and the 4th knob, closest to the neck, is PHAT II EQ knob.
FREQUENCY RESPONSE

DESCRIPTION

The variable range of the frequency increases from 20 Hz to the high range, and the variable range decreases from the peak around 100 Hz to around 1000 Hz. The variable width of the frequency becomes large again in the high range from around 1000 Hz, and reaches the peak at around 10,000 Hz, and then becomes smaller again. The variable range around 100 Hz is about 15 dB, the range around 1000 Hz is about 5 dB, and the range around 10000 Hz is about 10 dB.
OTHER FEATURES
- Recommended Case
- MB300C

Features

Purpleheart fretboard

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.

Maple neck

The Maple neck provides stability and bright tonal character.

Phat II EQ

Phat II active bass boost adds additional low-end power.

PB Canvas Art Grain top / Okoume body

PB Canvas Art Grain top / Okoume body

The PB Canvas Art Grain top displaying a gorgeous wood grain and the Okoume body provide a bright and solid sound.

B10 series bridge

B10 series bridge

The B10 bridge allows fully adjustable intonation and solid tuning stability.
