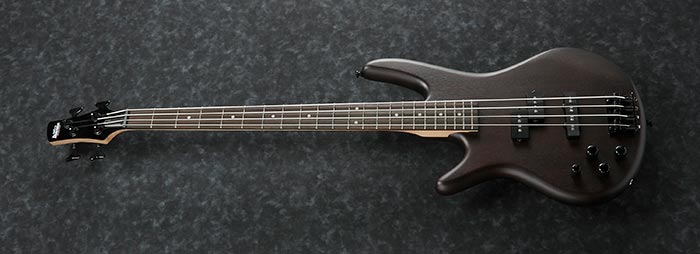

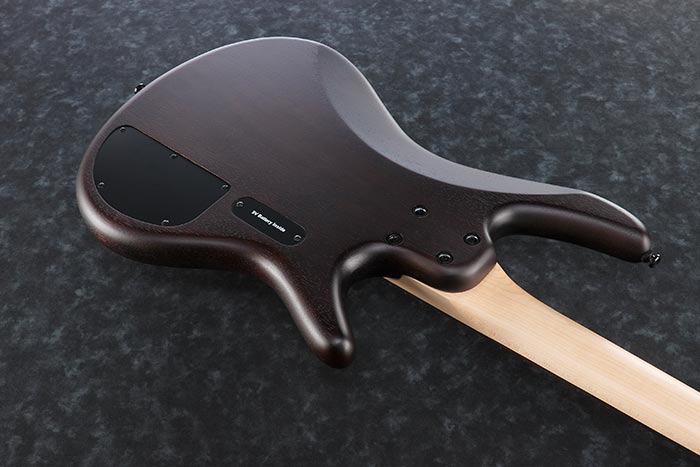

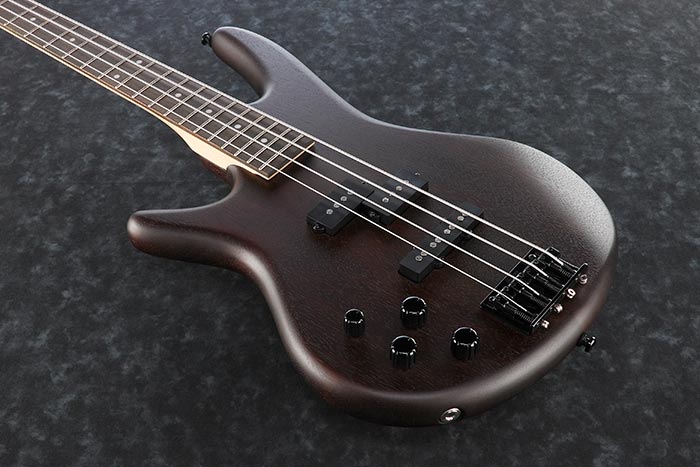

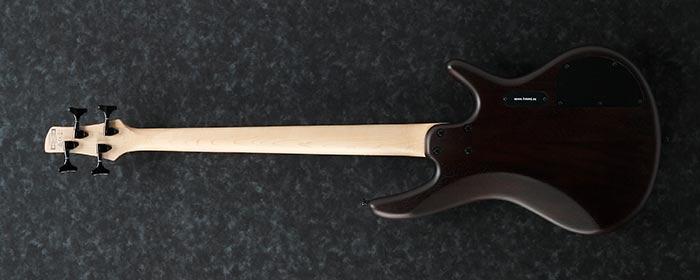

GSR200BL-WNF
  • WNF : Walnut Flat
  • COLOR VARIATION:
SR

SPEC

  • SPECS

    • neck type
      GSR4 Maple neck
    • top/back/body
      Nyatoh body
    • fretboard
      Jatoba fretboardWhite dot inlay
    • fret
      Medium frets
    • bridge
      B10 bridge
    • string space
      19mm
    • neck pickup
      Dynamix P neck pickupPassive
    • bridge pickup
      Dynamix J bridge pickupPassive
    • equaliser
      Phat II EQ
    • factory tuning
      1G,2D,3A,4E
    • string gauge
      .045/.065/.080/.100
    • hardware color
      Black
  • NECK DIMENSIONS

      • Scale :
        864mm/34"
      • a : Width
        41mm at NUT
      • b : Width
        62mm at 22F
      • c : Thickness
        21mm at 1F
      • d : Thickness
        22mm at 12F
      • Radius :
        305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • CONTROLS

    GSR200BL's control diagram

    DESCRIPTION

    There are four knobs on this bass. The two knobs closest to the bridge are the volume knobs. The knob closest to the input jack is the tone knob, and the 4th knob, closest to the neck, is PHAT II EQ knob.

  • FREQUENCY RESPONSE

    GSR200BL's EQ curve diagram

    DESCRIPTION

    The variable range of the frequency increases from 20 Hz to the high range, and the variable range decreases from the peak around 100 Hz to around 1000 Hz. The variable width of the frequency becomes large again in the high range from around 1000 Hz, and reaches the peak at around 10,000 Hz, and then becomes smaller again. The variable range around 100 Hz is about 15 dB, the range around 1000 Hz is about 5 dB, and the range around 10000 Hz is about 10 dB.

  • OTHER FEATURES

Features

Phat II EQ

Phat II EQ

Phat II active bass boost adds additional low-end power.

Jatoba Fretboard

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

B10 Bridge

B10 bridge

The B10 bridge allows fully adjustable intonation and solid tuning stability.
