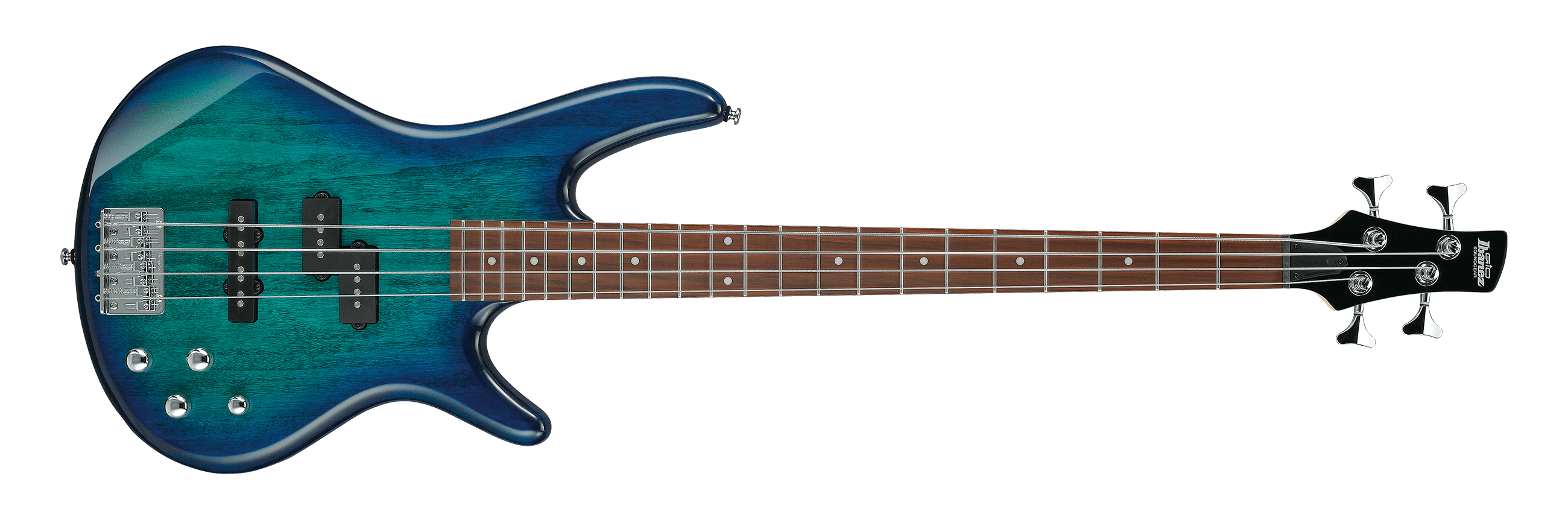

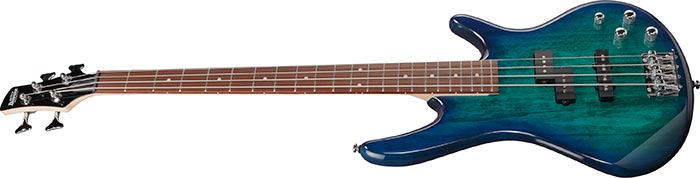

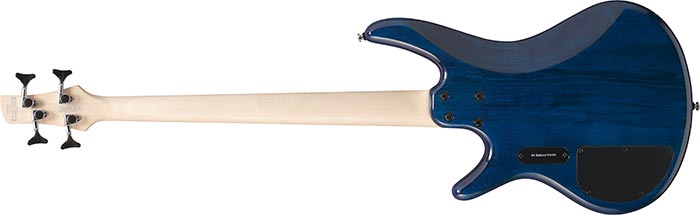

GSR200
- BK : Black
- JB : Jewel Blue
- TR : Transparent Red
- PW : Pearl White
- SDL : Soda Blue
- COLOR VARIATION:
SPEC
-
SPECS
-
neck typeGSR4 Maple neck
-
top/back/bodyPoplar body
-
fretboardJatoba fretboardWhite dot inlay
-
fretMedium frets
-
bridgeB10 bridge
-
string space19mm
-
neck pickupDynamix P neck pickupPassive
-
bridge pickupDynamix J bridge pickupPassive
-
equaliserPhat II EQ
-
factory tuning1G,2D,3A,4E
-
string gauge.045/.065/.080/.100
-
hardware colorChrome
-
-
NECK DIMENSIONS
-
-
Scale :864mm/34"
-
a : Width41mm at NUT
-
b : Width62mm at 22F
-
c : Thickness21mm at 1F
-
d : Thickness22mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
There are four knobs on this bass. The two knobs closest to the bridge are the volume knobs. The knob closest to the input jack is the tone knob, and the 4th knob, closest to the neck, is PHAT II EQ knob.
-
FREQUENCY RESPONSE
DESCRIPTION
The variable range of the frequency increases from 20 Hz to the high range, and the variable range decreases from the peak around 100 Hz to around 1000 Hz. The variable width of the frequency becomes large again in the high range from around 1000 Hz, and reaches the peak at around 10,000 Hz, and then becomes smaller again. The variable range around 100 Hz is about 15 dB, the range around 1000 Hz is about 5 dB, and the range around 10000 Hz is about 10 dB.
-
OTHER FEATURES
- Recommended Case
- MB300C
Features
Maple neck
The Maple neck provides stability and bright tonal character.
Phat II EQ
Phat II active bass boost adds additional low-end power.
B10 bridge
The B10 bridge allows fully adjustable intonation and solid tuning stability.
