GSR100EX

PHOTOS
SPEC
FEATURES
SUPPORT

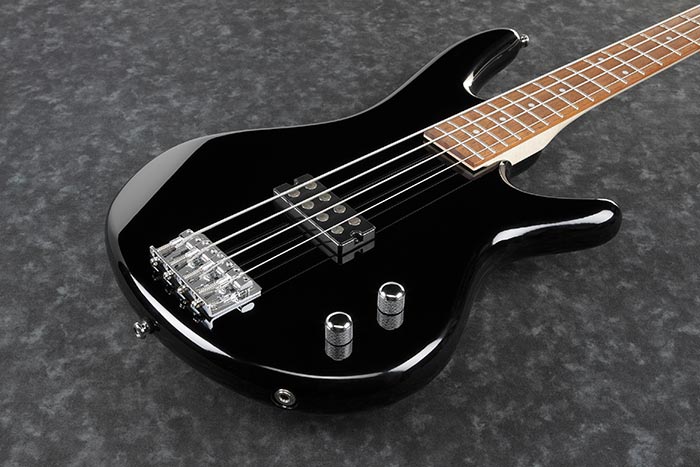

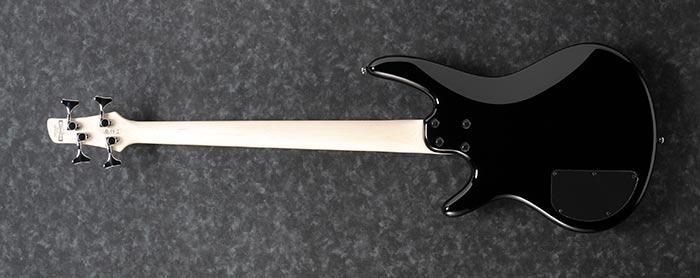

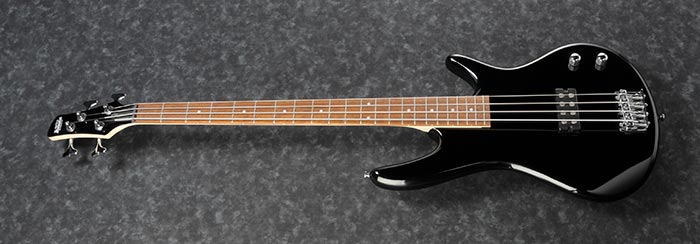

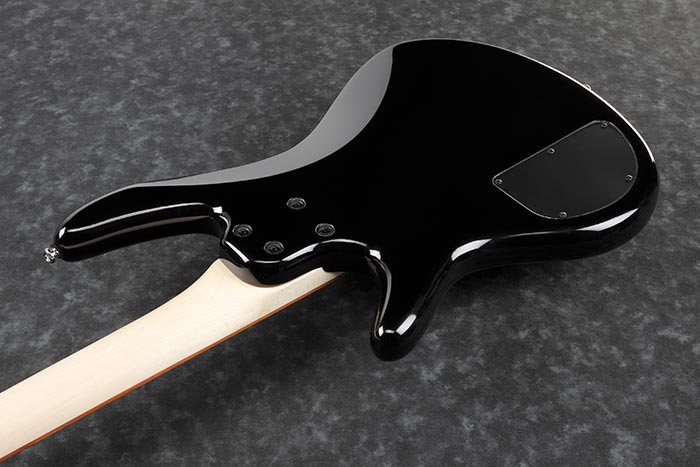

BK : Black

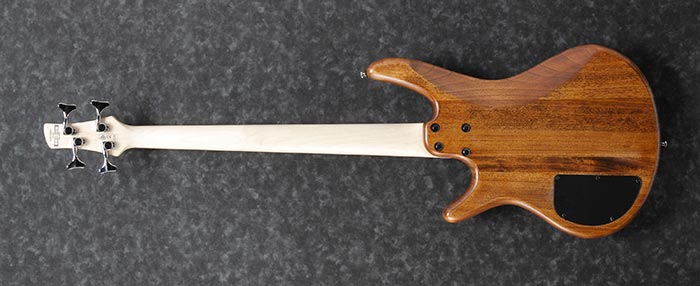

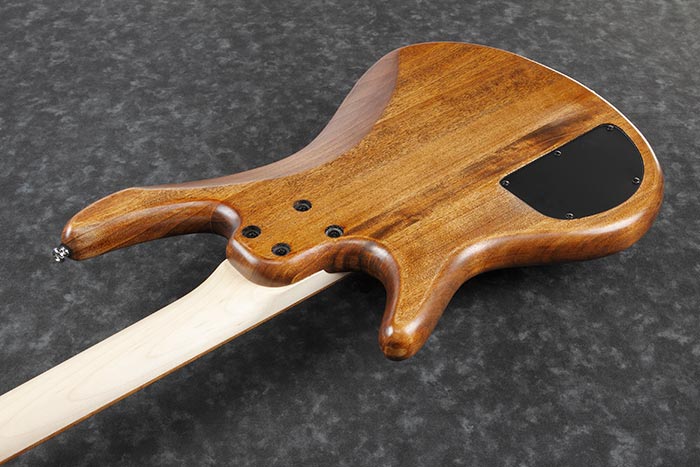

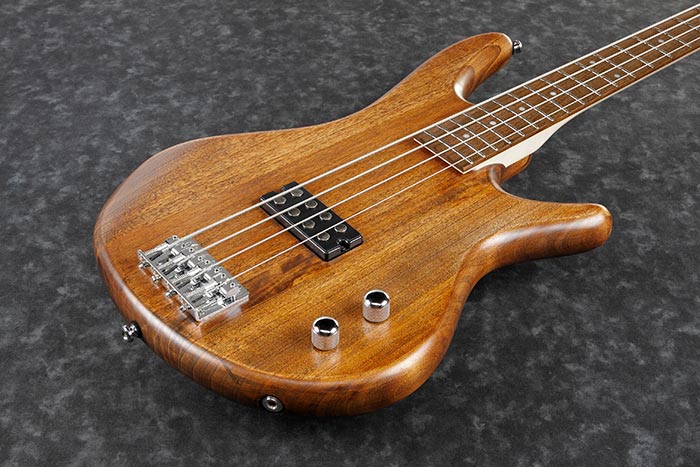

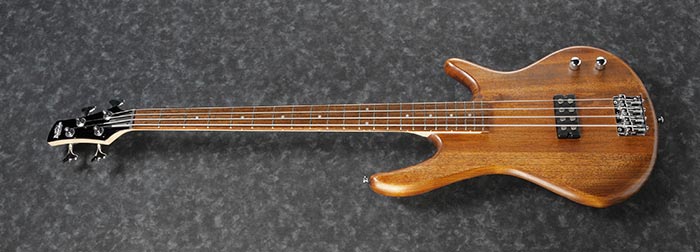

MOL : Mahogany Oil

COLOR VARIATION：

COLOR VARIATION

SR

SPEC

SPECS
- neck type

  GSR4 Maple neck
- top/back/body

  Poplar body
- fretboard

  Jatoba fretboardWhite dot inlay
- fret

  Medium frets
- bridge

  B10 bridge
- string space

  19mm
- bridge pickup

  PPD4 bridge pickupPassive
- factory tuning

  1G,2D,3A,4E
- string gauge

  .045/.065/.080/.100
- hardware color

  Chrome
NECK DIMENSIONS
- Scale :

  864mm/34"
- a : Width

  41mm at NUT
- b : Width

  62mm at 22F
- c : Thickness

  21mm at 1F
- d : Thickness

  22mm at 12F
- Radius :

  305mmR
DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
CONTROLS

DESCRIPTION

With the bass held in the playing position, the knob closest to the end of the body is the tone knob, and the knob closest to the neck is the volume knob.
OTHER FEATURES
- Recommended Case
  MB300C

Features

Maple neck

The Maple neck provides stability and bright tonal character.

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

B10 series bridge

The B10 bridge allows fully adjustable intonation and solid tuning stability.
