GRG220PA1

GRG220PA1-BKB
  • BKB : Transparent Brown Black Burst
  • COLOR VARIATION：

Top of the GRG220PA1-BKB's body
Back of the GRG220PA1-BKB's body
Entire top of the GRG220PA1-BKB
Entire back of the GRG220PA1-BKB
RG

SPEC

  • SPECS

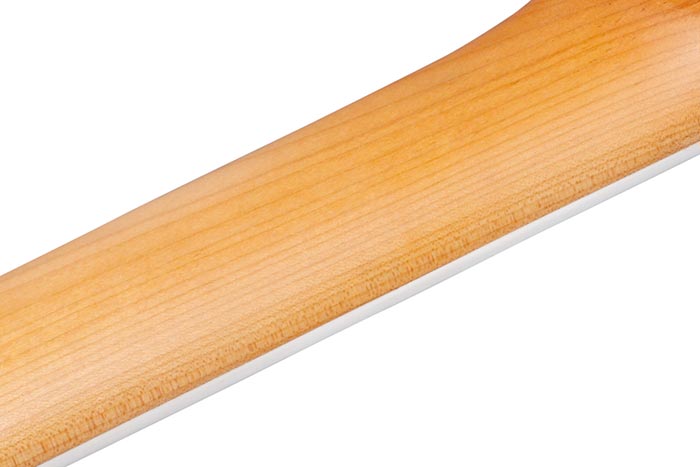

    • neck type
      GRGRoasted Maple neck
    • top/back/body
      Poplar Burl Art Grain (Basswood) topOkoume body
    • fretboard
      Bound Purpleheart fretboardWhite Sharktooth inlay
    • fret
      Jumbo frets
    • number of frets
      24
    • bridge
      T106 bridge
    • string space
      10.5mm
    • neck pickup
      Classic Elite (H) neck pickupPassive/Ceramic
    • bridge pickup
      Classic Elite (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • string gauge
      .009/.011/.016/.024/.032/.042
    • hardware color
      Chrome

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        43mm at NUT
      • b : Width
        58mm at 24F
      • c : Thickness
        19.5mm at 1F
      • d : Thickness
        21.5mm at 12F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    GRG220PA1's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

  • CONTROLS

    GRG220PA1's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

Features

Classic Elite pickups

Classic Elite pickups

Classic Elite pickups offer rich, nuanced tone with fat low-end.

T106 tremolo bridge

T106 tremolo bridge

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Mono-unit output jack

Mono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
