GB10EM

GB10EM-AA
GB10EM-JBB
  • AA : Antique Amber
  • JBB : Jet Blue Burst
  • COLOR VARIATION：

Top of the GB10EM-AA's body
Top of the GB10EM-JBB's body
Back of the GB10EM-AA's body
Back of the GB10EM-JBB's body
Entire top of the GB10EM-AA
Entire top of the GB10EM-JBB
Entire back of the GB10EM-AA
Entire back of the GB10EM-JBB
ARTIST DETAIL
GB

SPEC

  • SPECS

    • neck type
      GBNyatohset-in neck
    • top/back/side
      Spruce top Linden backLinden sides
    • fretboard
      Bound Rosewood fretboardAcrylic block inlay
    • fret
      Medium frets
    • number of frets
      22
    • bridge
      Rosewood bridge
    • string space
      10.4mm
    • tailpiece
      VT14 w/GB10EM wood cover tailpiece
    • neck pickup
      Magic Touch-Mini (H) neck pickupPassive/Alnico
    • bridge pickup
      Magic Touch-Mini (H) bridge pickupPassive/Alnico
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® ECG24 Flatwound
    • string gauge
      .011/.015/.022w/.030/.040/.050
    • hardware color
      Chrome

  • NECK DIMENSIONS

      • Scale :
        628mm
      • a : Width
        43mm at NUT
      • b : Width
        57mm at 22F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        22mm at 9F
      • Radius :
        305mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        18 7/8"
      • b : Width
        14 1/2"
      • c : Max Depth
        3 3/8"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • SWITCHING SYSTEM

    GB10EM's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    GB10EM's control diagram

    DESCRIPTION

    There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.

  • OTHER FEATURES

Features

Nyatoh neck

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Rosewood fretboard

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Spruce top / Linden back and sides

Spruce top / Linden back and sides

The Spruce top's smooth wood appearance enriches the response of your playing. The Linden back and sides provide rich tone and a bright attack.

Magic Touch-Mini (H) pickups

Magic Touch-Mini (H) pickups

The Ibanez custom made Magic Touch-Mini humbucker pickup provides a balance of classic tones and clear articulation on both the top and bottom of the sound spectrum. Players will enjoy a clean, precise response while presenting fast melodies or complex chord progressions.

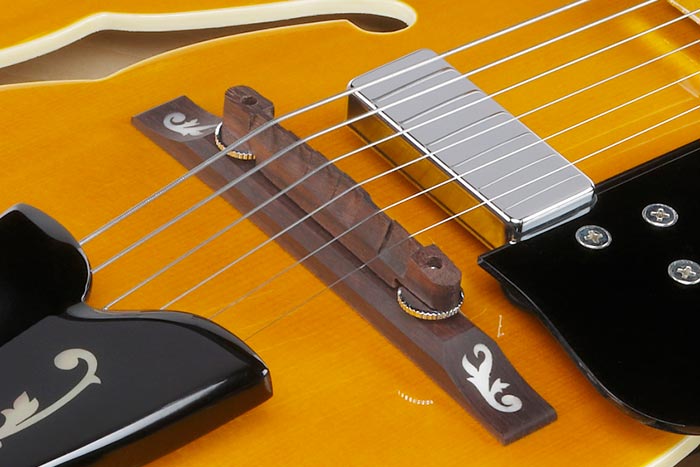

Rosewood bridge

Rosewood bridge

VT14 tailpiece

VT14 tailpiece

The smooth VT14 tailpiece provides both great tuning stability and rich sustain.
