GA35TCE

PHOTOS
SPEC
FEATURES
SUPPORT

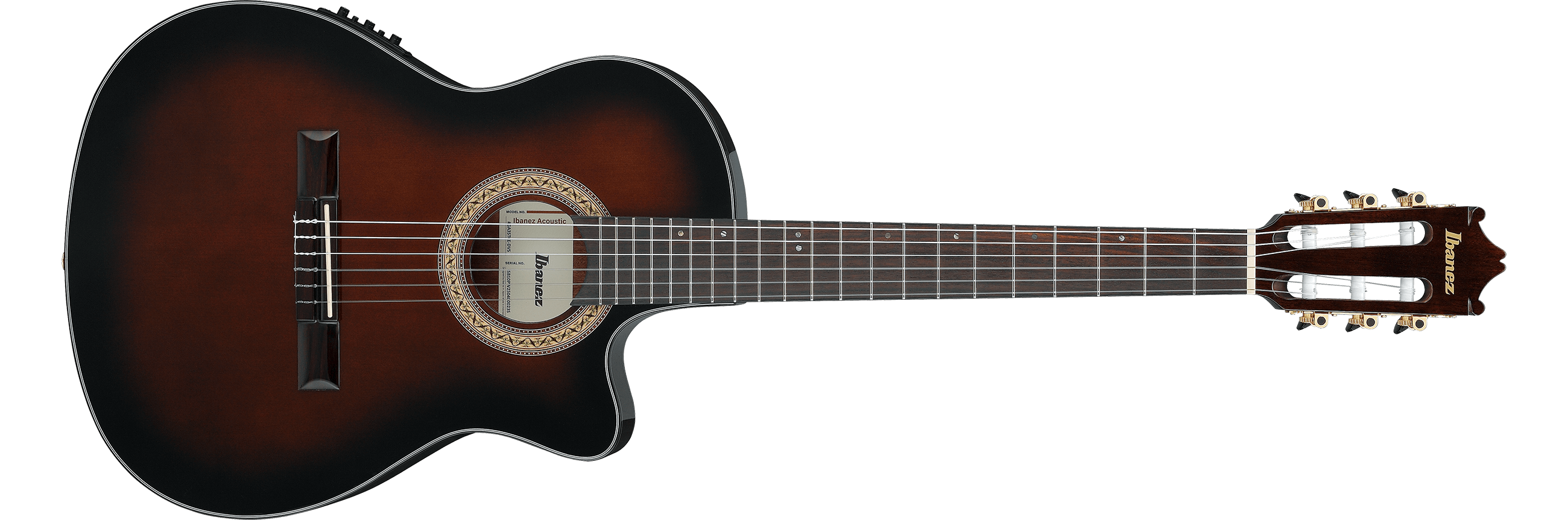

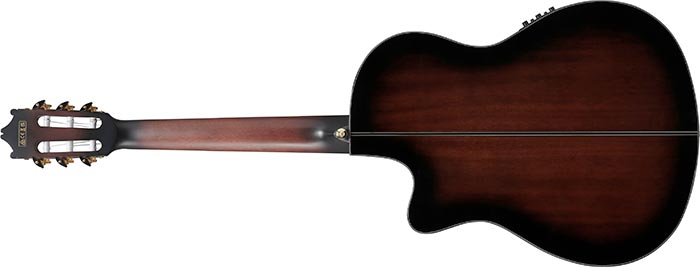

DVS : Dark Violin Sunburst High Gloss

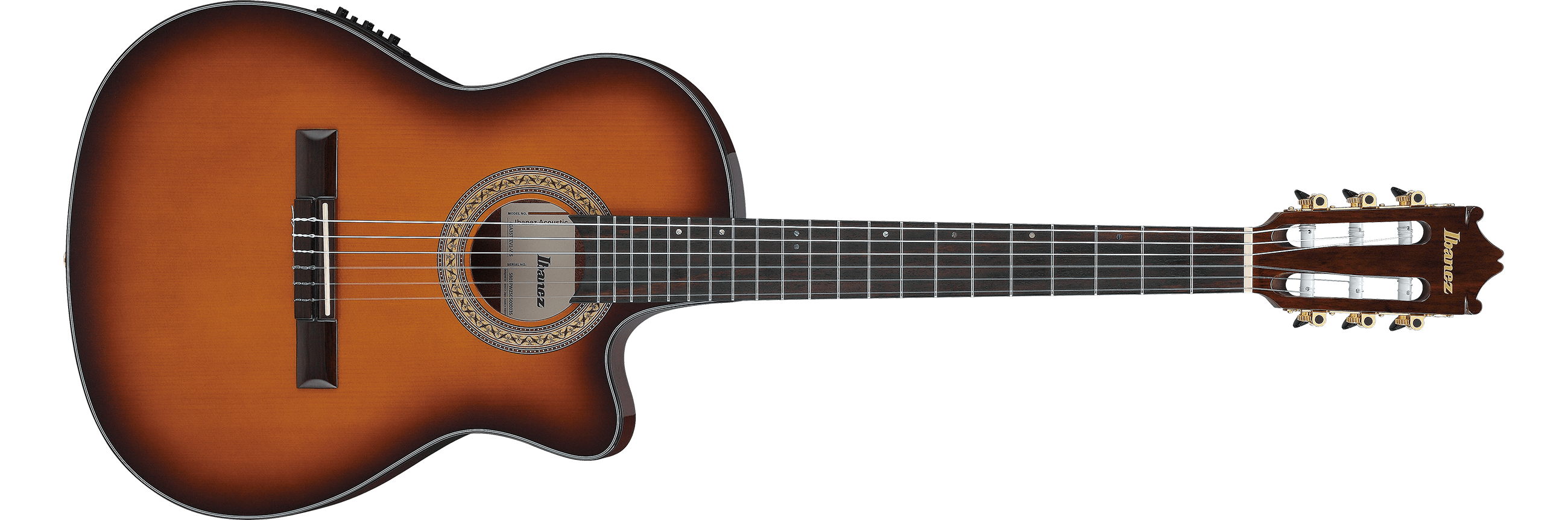

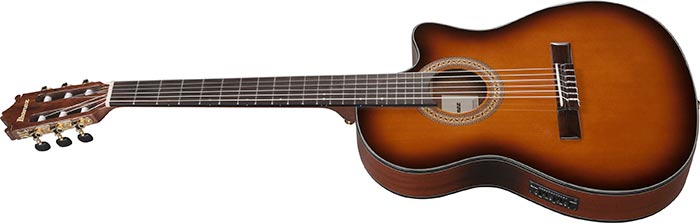

VLS : Violin Sunburst High Gloss

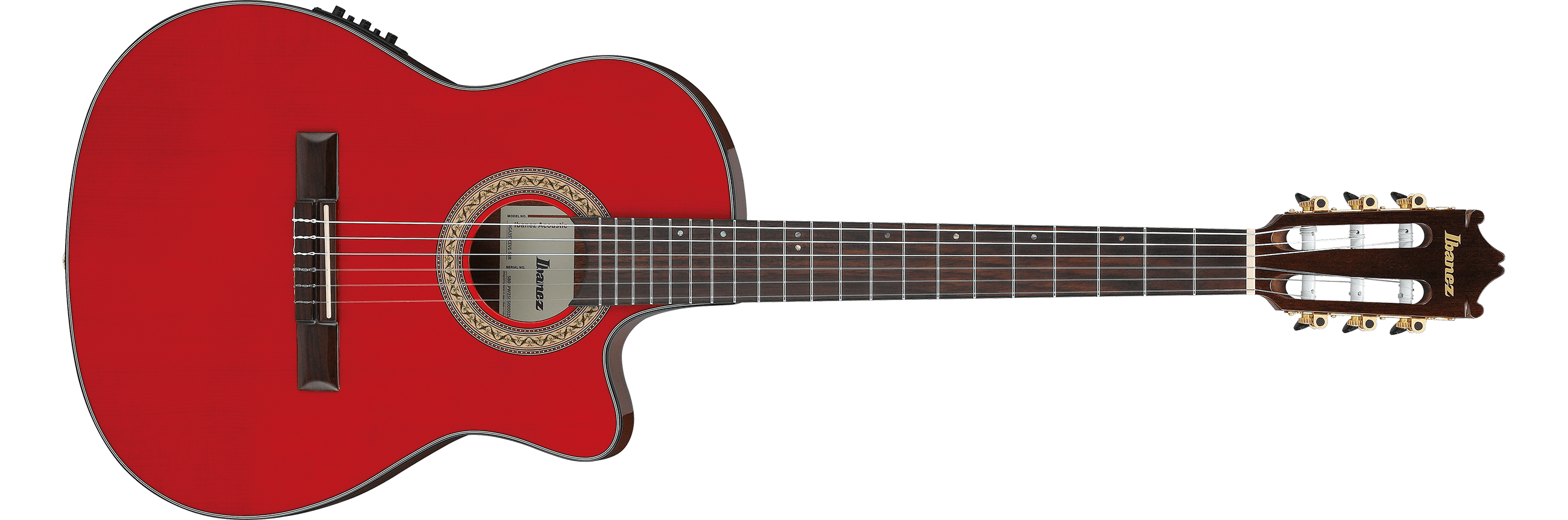

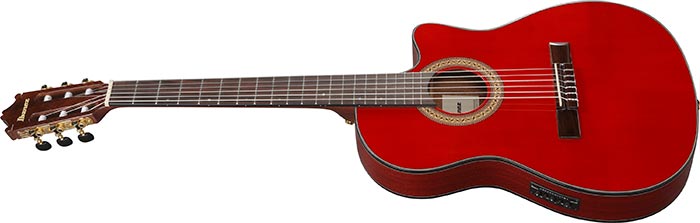

SRR : Sapphire Red High Gloss

COLOR VARIATION：

COLOR VARIATION

CLASSICAL

SPEC

SPECS
- body shape

  Thinline Cutaway Classical body
- top

  Spruce top

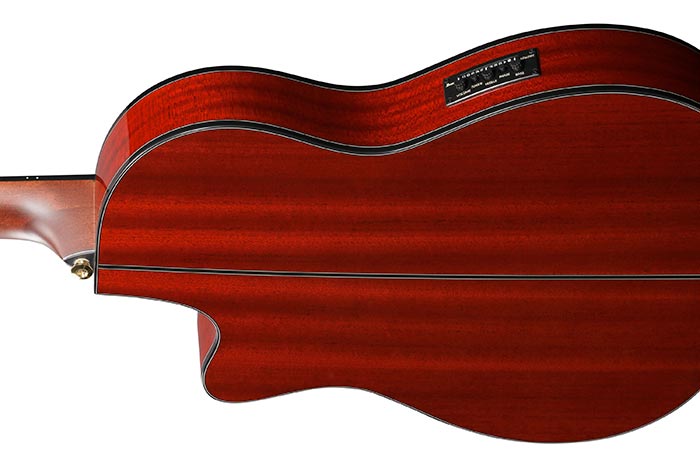

- back & sides

  Sapele back & Sapele sides
- neck

  GANyatoh neck
- fretboard

  Rosewood fretboard
- bridge

  Rosewood bridge
- inlay

  Off-set abalone dot inlay
- soundhole rosette

  Classical Mosaic Design
- tuning machine

  Gold Classical tuners w/Black knobs
- number of frets

  21
- strings

  D'Addario® XTC45
- string gauge

  .028/.032/.040/.028W/.035W/.044W
- string space

  11.6mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez Undersaddle
- preamp

  Ibanez AEQ210T preamp w/Onboard tuner
- output jack

  Balanced XLR & 1/4" outputs
- battery

  9V x1
NECK DIMENSIONS
- Scale :

  648mm/25.5"
- a : Width

  46mm at NUT
- b : Width

  58mm at 14F
- c : Thickness

  21mm at 1F
- d : Thickness

  23mm at 7F
- Radius :

  Flat
DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
BODY DIMENSIONS
- a : Length

  19 3/8"
- b : Width

  14 3/4"
- c : Max Depth

  2 7/8"
DESCRIPTION

Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, tuner button, treble knob, phase button, and bass knob.
OTHER FEATURES
- Recommended Case

  AEG10C
